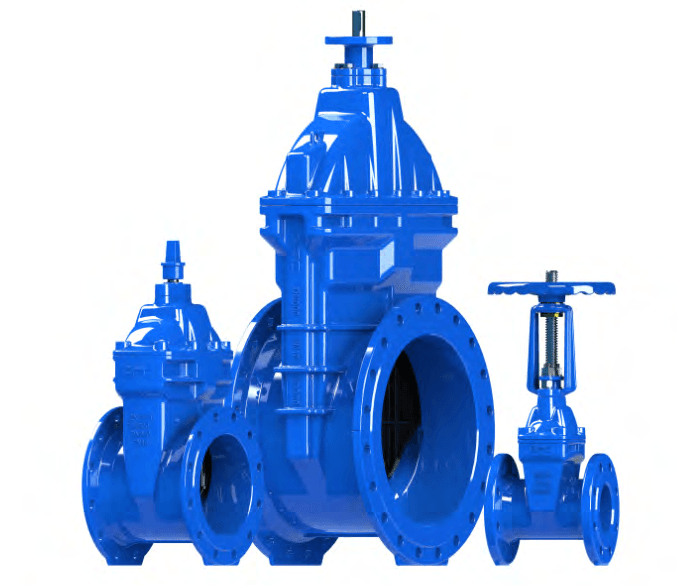

RSV Gate Valve – Rising Stem

Name: RSV Gate Valve – Rising Stem
Brand: Euro Flow Control
SKU: EFC-378
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: afc · ref: 378

Specifications

Confirmed at quote

Size Range: DN50 – DN300
Pressure Class: PN10 / PN16
Standards: EN 1074-2
End connection: Flanged to EN 1092-2 PN10/PN16

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
wedge
stem

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
PN16	-10°C	16 bar
PN16	80°C	16 bar

Dimensions per size(17 sizes)

Size	L	H	H1	OD	OK	c	OF	OD_PN10	OD_PN16	OK_PN10	OK_PN16	OB	Weight
DN50	178 mm	312 mm	382 mm	165 mm	125 mm	18 mm	200 mm	—	—	—	—	—	—
DN65	190 mm	338 mm	408 mm	185 mm	145 mm	18 mm	200 mm	—	—	—	—	—	—
DN80	203 mm	393 mm	480 mm	200 mm	160 mm	18 mm	250 mm	—	—	—	—	—	—
DN100	229 mm	441 mm	544 mm	220 mm	180 mm	18 mm	250 mm	—	—	—	—	—	—
DN125	254 mm	559 mm	692 mm	250 mm	210 mm	18 mm	280 mm	—	—	—	—	—	—
DN150	267 mm	598 mm	759 mm	285 mm	240 mm	18 mm	280 mm	—	—	—	—	—	—
DN200	292 mm	743 mm	953 mm	340 mm	295 mm	18 mm	350 mm	—	—	—	—	—	—
DN250	330 mm	880 mm	1140 mm	—	—	19 mm	350 mm	395 mm	405 mm	350 mm	355 mm	—	—
DN300	356 mm	1009 mm	1319 mm	—	—	21 mm	350 mm	445 mm	460 mm	400 mm	410 mm	—	—
DN350	381 mm	1169 mm	—	—	470 mm	26.5 mm	—	—	—	—	—	429 mm	—
DN400	406 mm	1297 mm	—	—	525 mm	28 mm	—	—	—	—	—	480 mm	—
DN450	432 mm	1434 mm	—	—	585 mm	30 mm	—	—	—	—	—	548 mm	—
DN500	457 mm	1564 mm	—	—	650 mm	31.5 mm	—	—	—	—	—	609 mm	—
DN600	508 mm	1836 mm	—	—	770 mm	36 mm	—	—	—	—	—	720 mm	—
DN700	610 mm	2000 mm	—	—	840 mm	39.5 mm	—	—	—	—	—	794 mm	—
DN800	660 mm	2170 mm	—	—	950 mm	43 mm	—	—	—	—	—	901 mm	—
DN900	711 mm	2340 mm	—	—	1050 mm	46.5 mm	—	—	—	—	—	1001 mm	—

Approvals

WRASISO 9001CE Mark

Features

The rising stem RSV provides a clear visual indication of valve position through the exposed spindle travel
As the valve opens, the stem rises so operators can confirm open/closed status at a glance without instrumentation
Suitable for above-ground installations in valve chambers, pump stations and water treatment works where visual confirmation of position is required by operating procedures

Description

Visual open/closed indication for above-ground service. The rising stem RSV provides a clear visual indication of valve position through the exposed spindle travel. As the valve opens, the stem rises so operators can confirm open/closed status at a glance without instrumentation. Suitable for above-ground installations in valve chambers, pump stations and water treatment works where visual confirmation of position is required by operating procedures.
