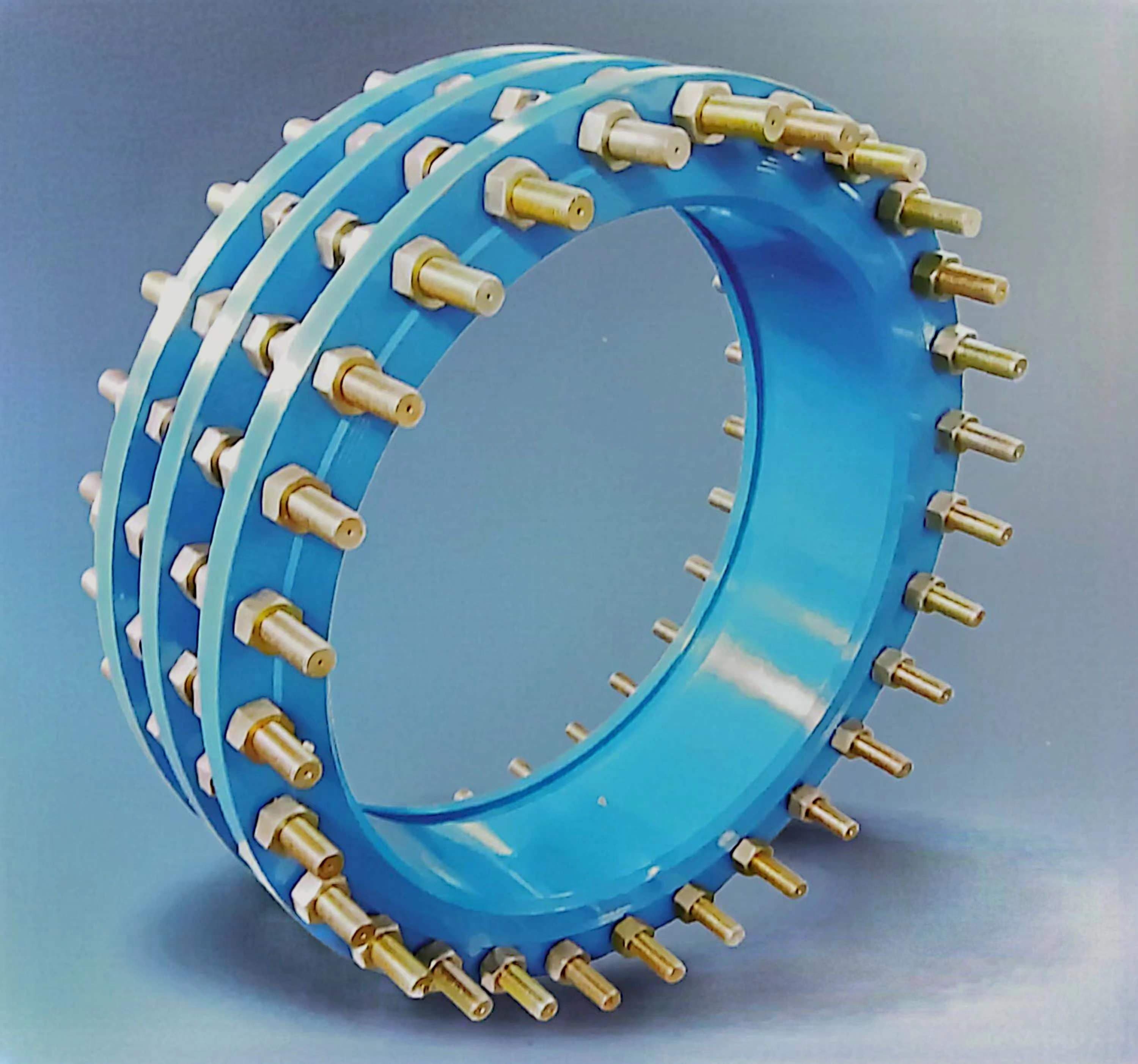

Dismantling joints
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50-DN4000
- Pressure Class
- PN6/PN64
- Standards
- EN12266-1, ISO5208, ISO7005-2, EN1092-2, EN1092-1, ANSI B16.5, ANSI B16.47, AWWA C207
- End connection
- double flanges
- Operating temperature
- -20 to 100℃
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- gasket
- flange body
- flange spigot
- Gland
- Long body
- Nut
- retainer
- Seal ring
- Short body
- Stud
- tie rods
Operating media
Coatings
Approvals
Features
- Longitudinal adjustment up to 50 mm
- Double flanged end connection
- Leakage rate: Class A (zero leakage) in both directions
- 100% pressure tested before delivery
- Can be used adjacent to valves
- Full or half set of bolts (50% bolt holes) available
- Vibration damping through displacement in the telescopic device
- Multi-directional displacement compensation during pipeline operation
- Installation and disassembly using torque wrench only
- Size range: DN100–DN4200
- Pressure range: PN6–PN40
- Internal and external coating: fusion bonded epoxy, minimum thickness ≥200 microns
- Suitable medium: water and low-corrosive liquids
- Operating temperature: -10 to 80 °C
- Ductile iron body with epoxy coating above 200 microns
- Galvanised steel or stainless steel studs and nuts available
- Double-flanged dismantling joint / double-spigot sleeve coupling design with long body, short body and gland assembly
Notes
- Higher pressure ratings can be designed specifically on request
- Other particular tie rod material available on request
- Pallets used for oversized packages

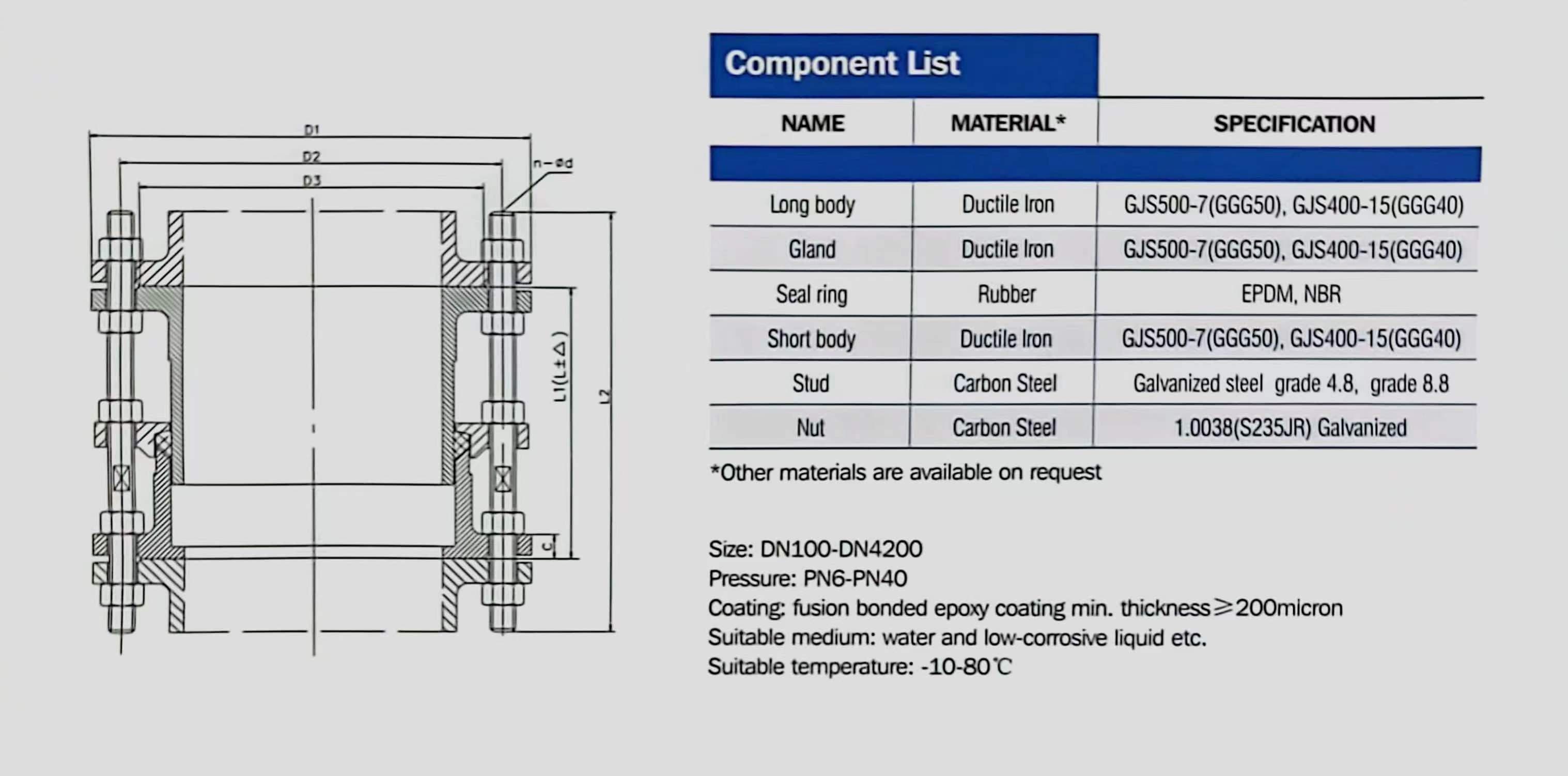

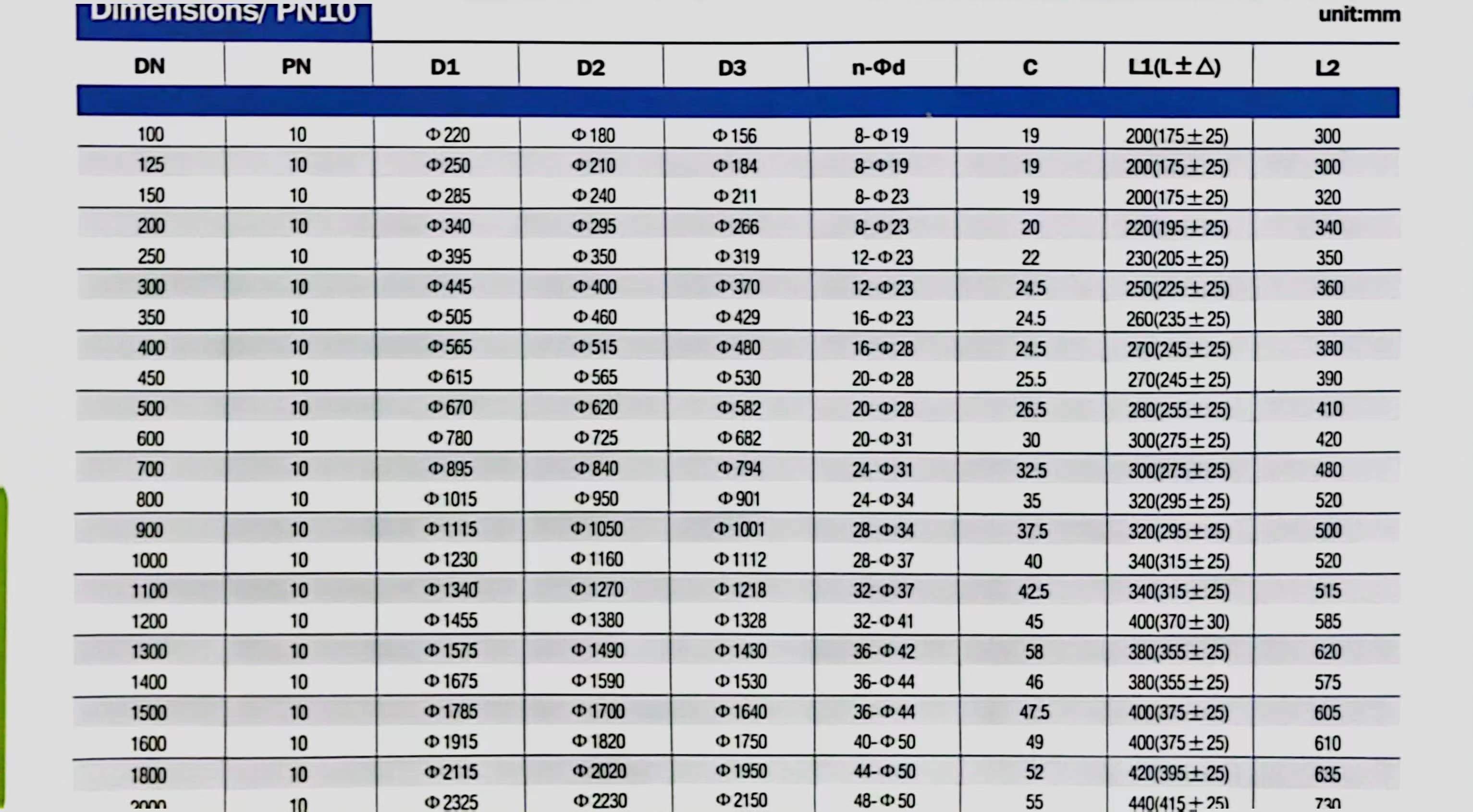

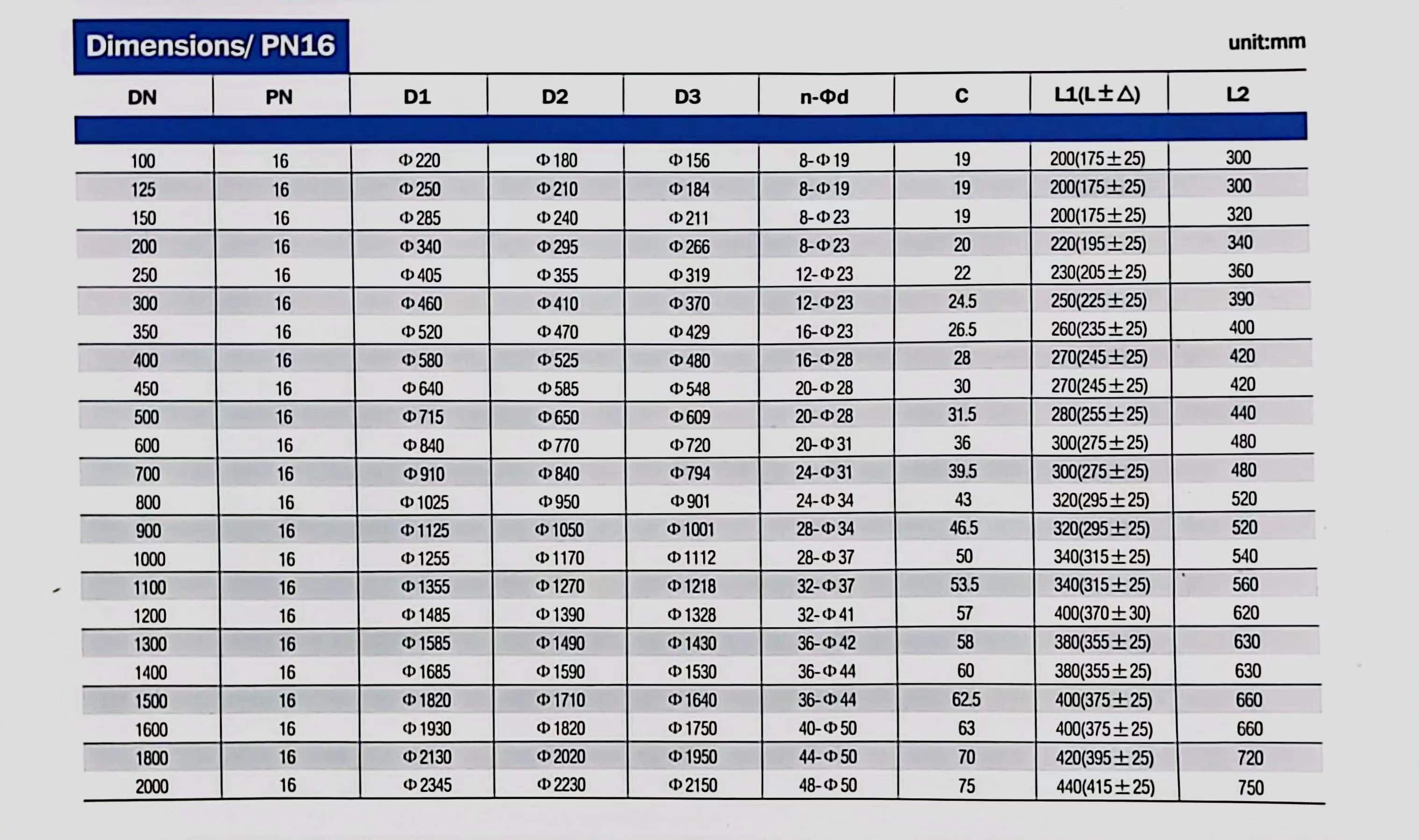

- Diagram: Image 3 (index 3): Cross-sectional drawing of double-flanged dismantling joint showing long body, short body, gland, seal rings, and stud/nut arrangement. Dimensional references D1, D2, D3, n-Φd, C, L1(L±Δ) and L2 are labelled.

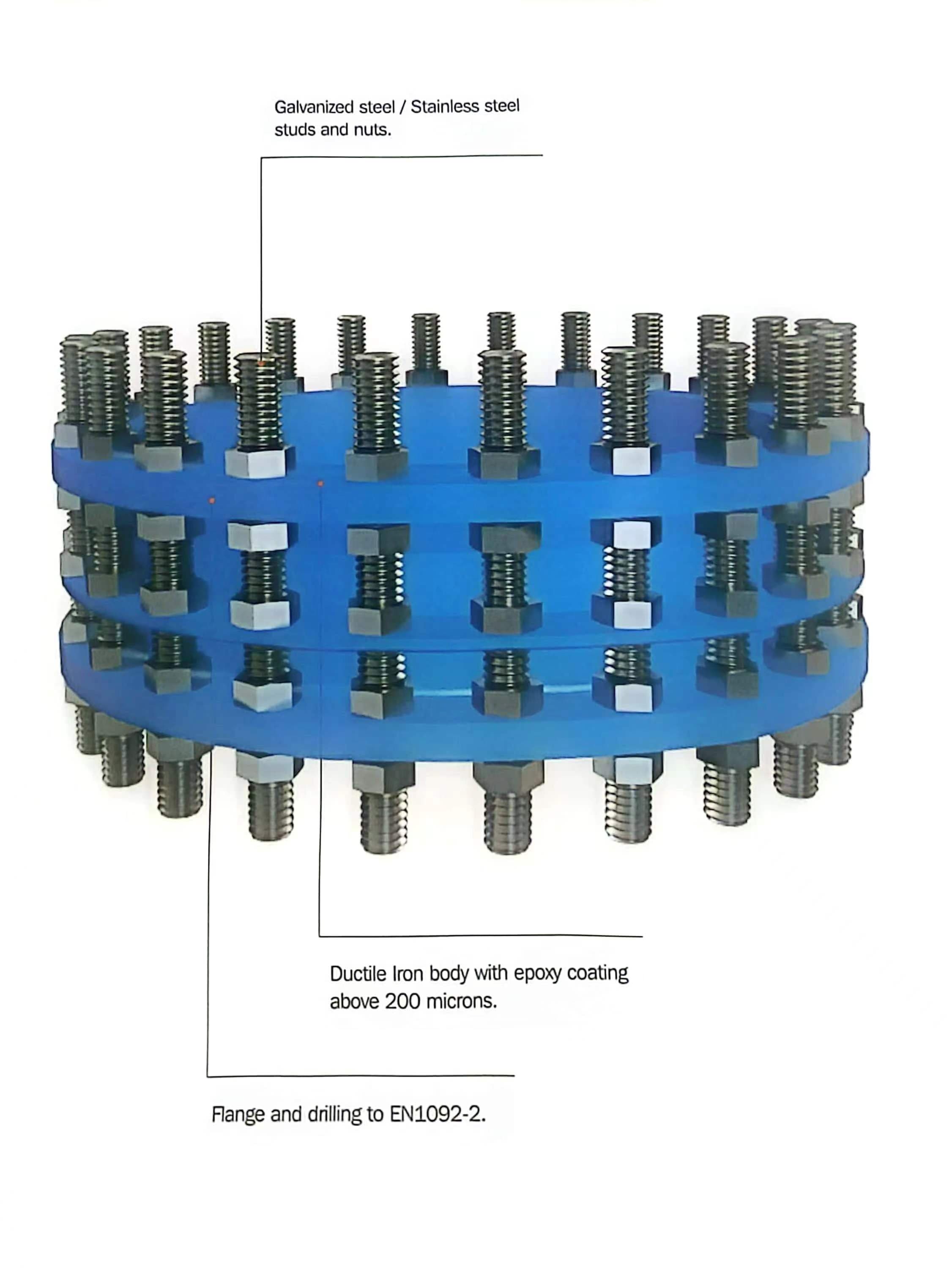

- Diagram: Image 4 (index 4): 3D rendered sectional view of double-flanged dismantling joint with part callouts: galvanised steel/stainless steel studs and nuts; ductile iron body with epoxy coating above 200 microns; flange and drilling to EN1092-2.
Description
Dismantling joints Y type Strainer knife gate valve Air Valve triple function nonslam Ball Valve News and Cases About Us Quality Test Certificates Contact Us VR English Products Home Products Dismantling joints Dismantling joints Brief description: Size range: DN50 to DN4000 Pressure range: PN6, PN10, PN16, PN25, PN40 and PN64, Class 150 & Class 300, or more high pressure to be designed specifically. Suitable medium: water, sea water, gas, oil , ow-corrosive liquid,and ect. Suitable temp. :-20 to 100℃ degree Flange and drilling acc.to : ISO7005-2,EN1092-2/-1, ANSI B16,5,ANSI B16.47, AWWA C207 and etc. Coating: fusion bonded epoxy coating, min. thickness 300 microns Pressure test acc.to: EN12266-1, ISO5208 Leakage rate: Class A (Zero leakage) in both direction, 100% testing before delivery
