Triple Eccentric Flange Butterfly Valve

Size Range

16 inch-16 inch

Pressure Class

150LB

Standards

ANSI B16.10, BS5152, BS 1868, ASME B16.10, ASME B16.5, ASME B16.34, API 6D, API 598, MSS SP-55, MSS SP-25

Configure your variant(manually adjust box on the right if you require a different spec)

Size

NPS 16 inch

Pressure

150LB

End connection

Flanged ASME B16.5 Class 150

Materials

All available material options per part. Click a pill to set it in the configurator.

body

CF8MA216 Gr. WCBA216 Gr. WCCA216 Gr. WCAA352 Gr. LCBA352 Gr. LCCA352 Gr. LC1A217 Gr. WC6A217 Gr. WC9A217 Gr. C5A217 Gr. C12A217 Gr. C12AA351 Gr. CF8A351 Gr. CF8MA351 Gr. CF3A351 Gr. CF3MA351 Gr. CF8CCN7M alloy 20CN3M alloy 20 modifiedCT15CA995 Gr. 4AA995 Gr. 5AA995 Gr. CE8MNA995 Gr. CD6MNA995 Gr. CD3MNB148 C95500B148 C95600B148 C95800M30CM35-1CZ100CY40 inconel 600CW2m Hastelloy C4N12MV Hastelloy BCW12MW Hastelloy C276CU5MCuC Incoloy 825CW6MC Incoloy 625

disc

CF8

stem

SS410

bushing

Nitriding

packing

Flexible Graphite

bolt

CSSS304

connecting support

WCB

disc flange

SS304

packing flange

WCB

pon

SS304

seat sealing ring

SS304+Graphite

stud

CS

washers

CS

Operating media

Actuation options

Approvals

Features

• Triple offset (triple eccentric) disc geometry
• Metal-to-metal sealing for zero-leakage shut-off
• Reduced friction between disc and seat during operation
• Suitable for both throttling and isolation duty
• Flanged end connection for stable installation in large pipeline systems
• Compatible with manual, pneumatic, or electric actuators
• Triple-offset (triple-eccentric) disc geometry visible on multiple units
• Flanged end connections (double-flanged body)
• Worm gear actuator fitted as standard on multiple variants
• Gear operator with handwheel operation
• Extended stem/bonnet arrangement visible on one variant (image 2)
• Metal seat sealing visible on disc face
• Available in stainless steel body/disc construction (images 0, 4)
• Available in carbon steel / ductile iron body with stainless disc (images 2, 5)
• Red-painted body variant with stainless disc (image 3) — indicative of fire-safe or high-pressure service
• Blue-painted cast iron/ductile iron body variant (images 2, 5)
• Multiple units shown ganged together indicating batch/manifold configurations

Notes

• Optional actuators—manual, pneumatic, or electric—can be added to suit automation requirements.

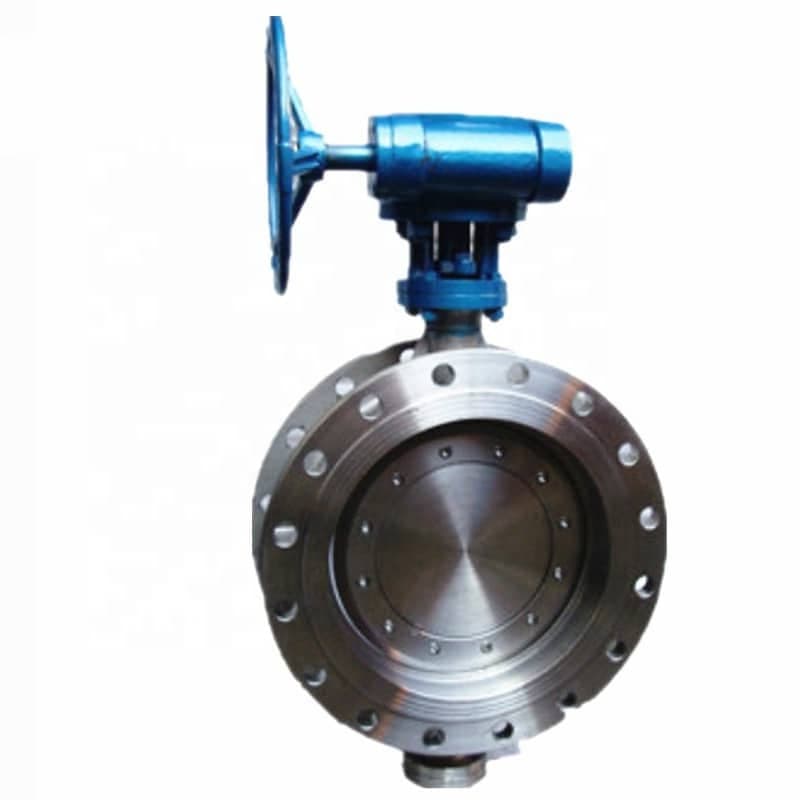

• Diagram: Image 0: Single flanged triple-offset butterfly valve, stainless steel body, blue worm gearbox actuator, viewed from disc face

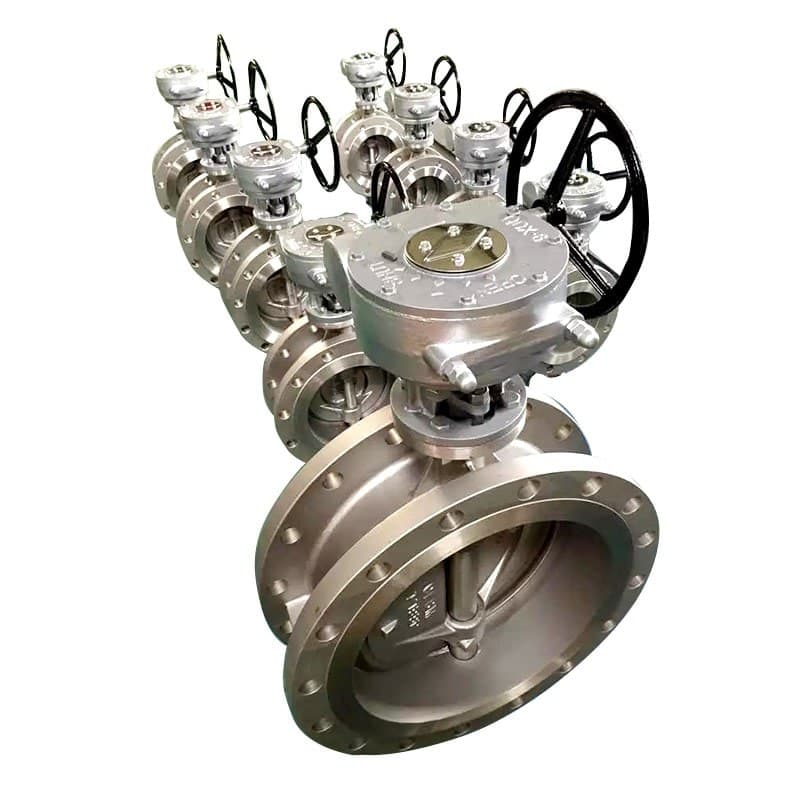

• Diagram: Image 1: Group of flanged triple-offset butterfly valves in stainless steel with worm gear operators and handwheels, various sizes

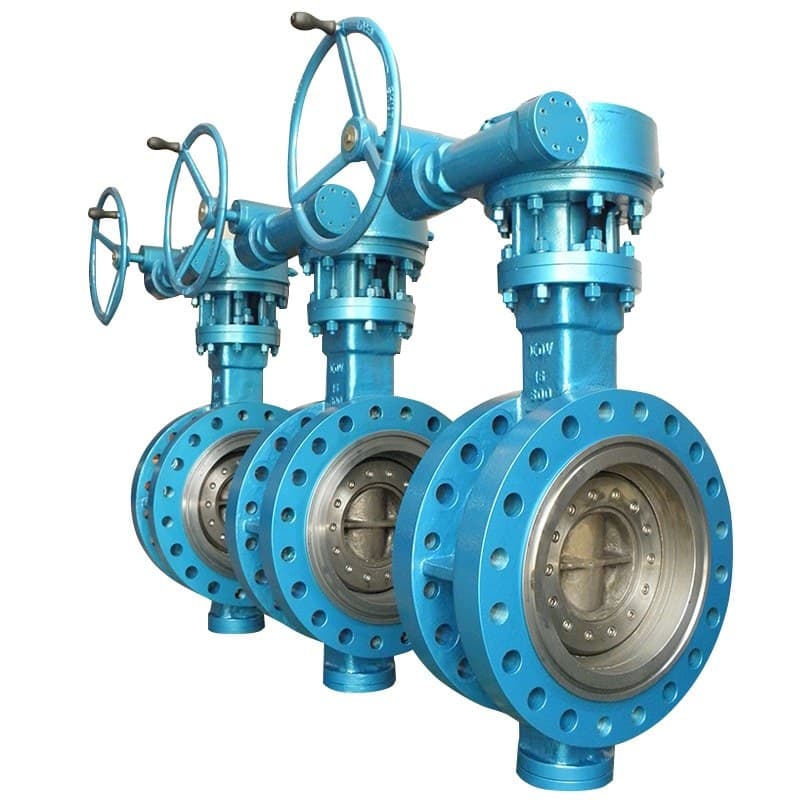

• Diagram: Image 2: Three flanged triple-offset butterfly valves in blue, large bore, fitted with worm gear operators and extended bonnets

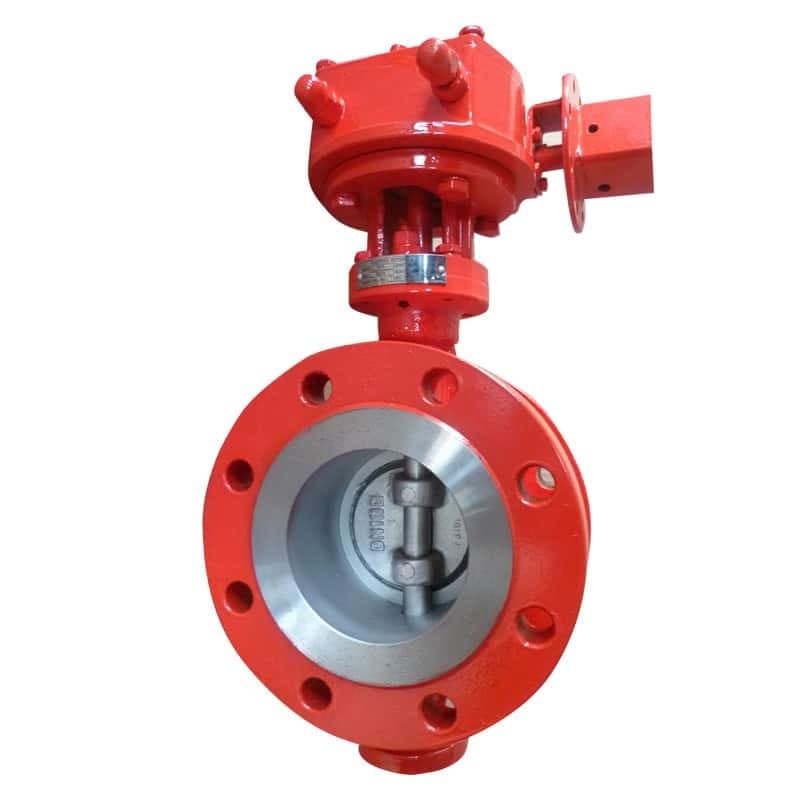

• Diagram: Image 3: Single flanged triple-offset butterfly valve in red with stainless disc, worm gear operator with actuator mounting bracket

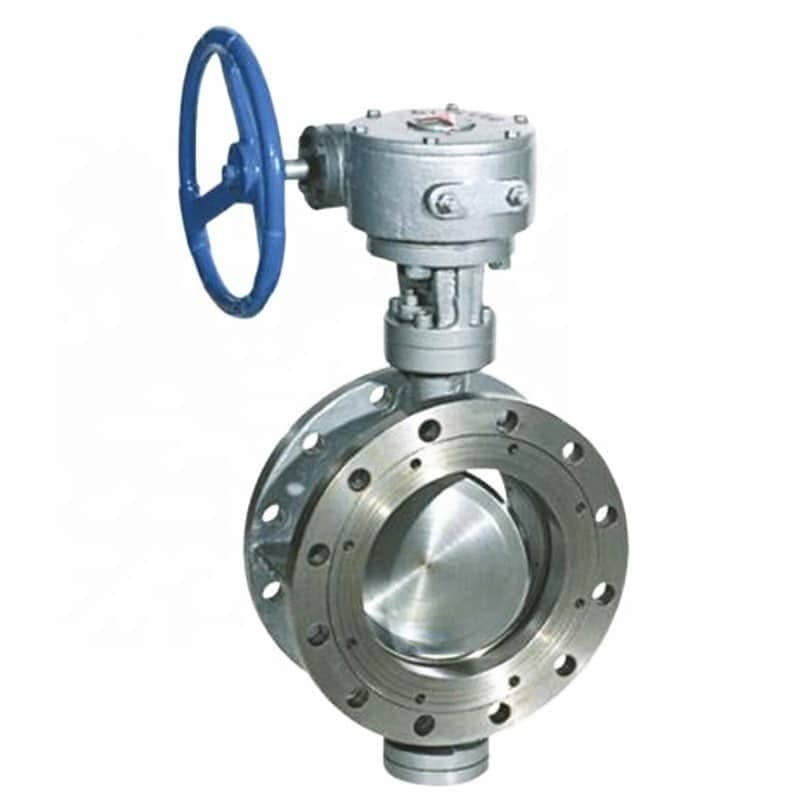

• Diagram: Image 4: Single flanged triple-offset butterfly valve in stainless steel body, blue handwheel worm gearbox

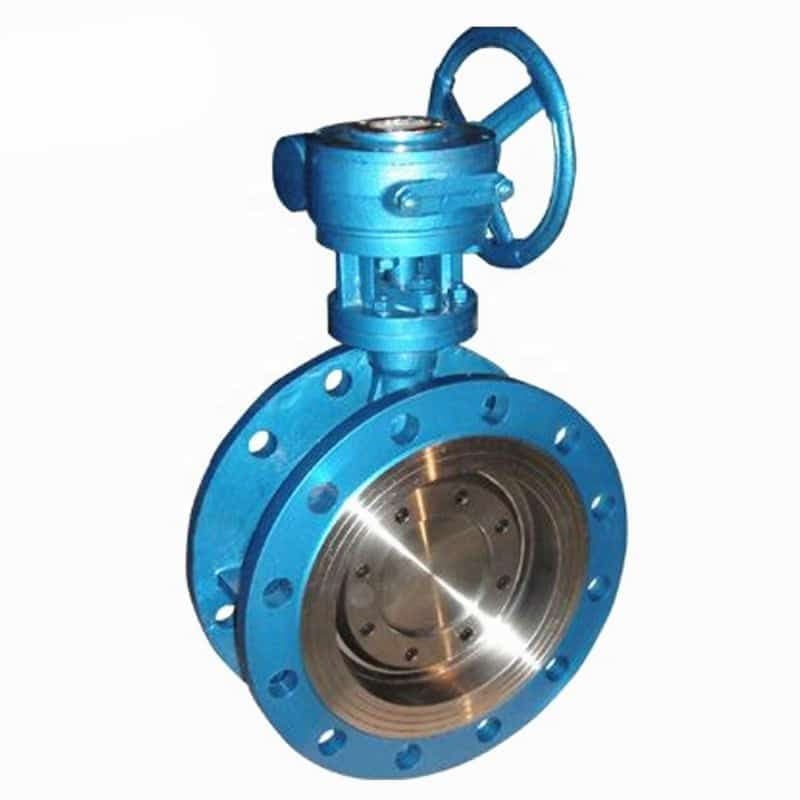

• Diagram: Image 5: Single flanged triple-offset butterfly valve, blue body, bronze/stainless disc, handwheel worm gearbox

Description

A triple eccentric (triple offset) flanged butterfly valve utilising metal-to-metal sealing for tight shut-off in high-pressure and high-temperature service. The disc and seat geometry reduces friction during operation. Available with manual, pneumatic, or electric actuation to suit isolation or throttling duties.
