Ventilation Butterfly Valve
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN100-DN3600
- Pressure Class
- 150LB/300LB
- End connection
- Wafer type, Lug Type
- Operating temperature
- ≤ 425°C
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- seat
- stem
- packing
- o ring
- body alternative
- body disc
Operating media
Features
- Three eccentric hard seal structure; seat and disc are near wear-free
- Combines metal hard seal and elastic seal; effective across low and high temperature ranges with corrosion resistance
- Valve disc overlaid with hard-facing material for wear resistance and extended service life
- Rotation range 0°–90°; fully open at 90°
- Double-flanged body construction
- Cross-ribbed disc design for structural reinforcement
- Worm gearbox actuator fitted
- Stainless steel disc and body visible
- Large-bore configuration (appears to be DN400 or larger based on bolt-hole count)
Notes

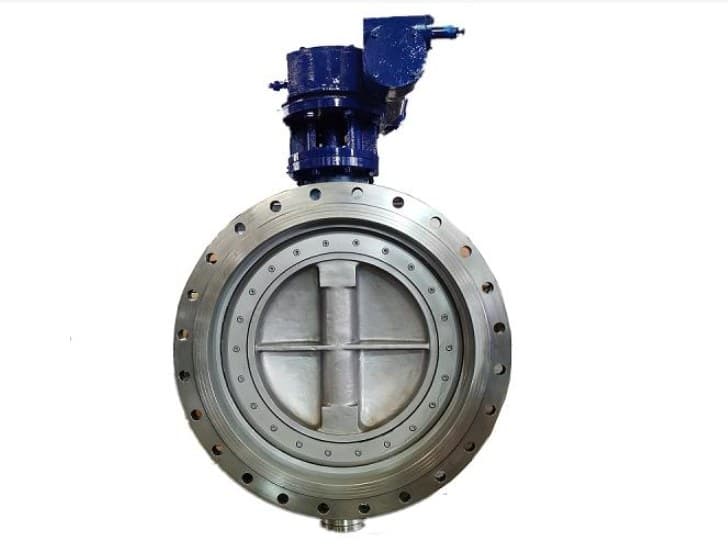

- Diagram: Photograph of a large-bore double-eccentric (high-performance) butterfly valve with a stainless steel disc and body, flanged ends with multiple bolt holes, and a blue gear actuator/worm gearbox mounted on top. Disc features a cross-ribbed reinforcement pattern.
Description
Ventilation Butterfly Valve Triple Eccentric butterfly valve is installed in the diameter direction of the pipe. In the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, the rotation angle is between 0 ° ~ 90 °, and when the rotation reaches 90 °, the valve is fully open. Features of the new high life stainless steel butterfly valve and problems with the butterfly valve during use. widely used in metallurgy, electric power, petrochemical, water supply and drainage and municipal construction and other industrial pipelines with medium temperature ≤ 425 °C for regulating flow and cutting off fluids. Specification Size: DN100～DN3600 Pressure: 150LB 300LB Connection: Wafer type, Lug Type, Body: WCB；stainless steel ；Aluminum bronze Seat: St
