Aluminum Wafer butterfly valve

Size Range

DN50-DN1000

Pressure Class

PN10/300LB

Standards

API609, ANSI16.34, JISB2064, GB/T12238, DIN3202, ISO5752, BS5155, API598, ISO5211, DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

Configure your variant(manually adjust box on the right if you require a different spec)

Size

DN50 (2")DN65 (2 1/2")DN80 (3")DN100 (4")DN125 (5")DN150 (6")DN200 (8")DN250 (10")DN300 (12")DN350 (14")DN400 (16")DN450 (18")DN500 (20")DN600 (24")DN700 (28")DN800 (32")DN900 (36")DN1000 (40")

Pressure

PN10PN16PN25PN40PN64PN100PN160PN250Class 150Class 300

End connection

Wafer DIN2501 PN10/16Wafer ANSI 125/150/300Wafer BS4504Wafer JIS 10K

Materials

All available material options per part. Click a pill to set it in the configurator.

body

AluminiumCast IronDuctile IronCarbon SteelStainless Steel

disc

Ductile Iron+NiCF8CF8+PTFECF8MCF8M+PTFEBronzeDuctile IronCarbon Steel

seat

EPDMNBRPTFEVITONHYPALONNeopreneSilicone

stem

SS416SS316SS304SS420

bushing

PTFEBronze

o ring

NBREPDM

handle

Aluminium

Operating media

Actuation options

Approvals

Features

• Lightweight aluminium body construction
• Wafer-type design for compact installation between flanges
• ISO5211 top flange for actuator mounting
• Multiple seat material options for chemical compatibility
• Multiple disc material options including PTFE-lined variants

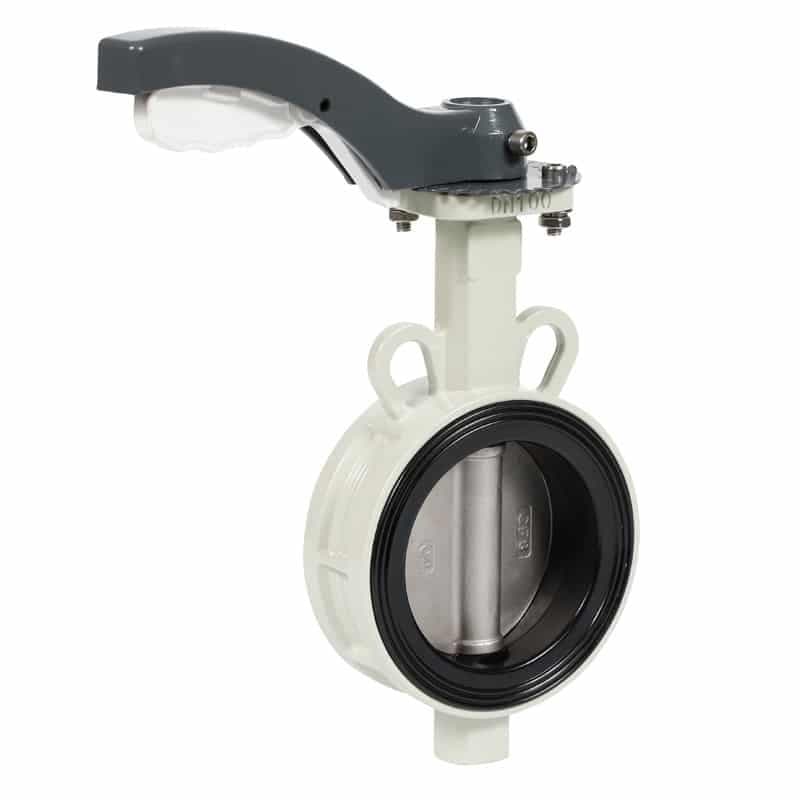

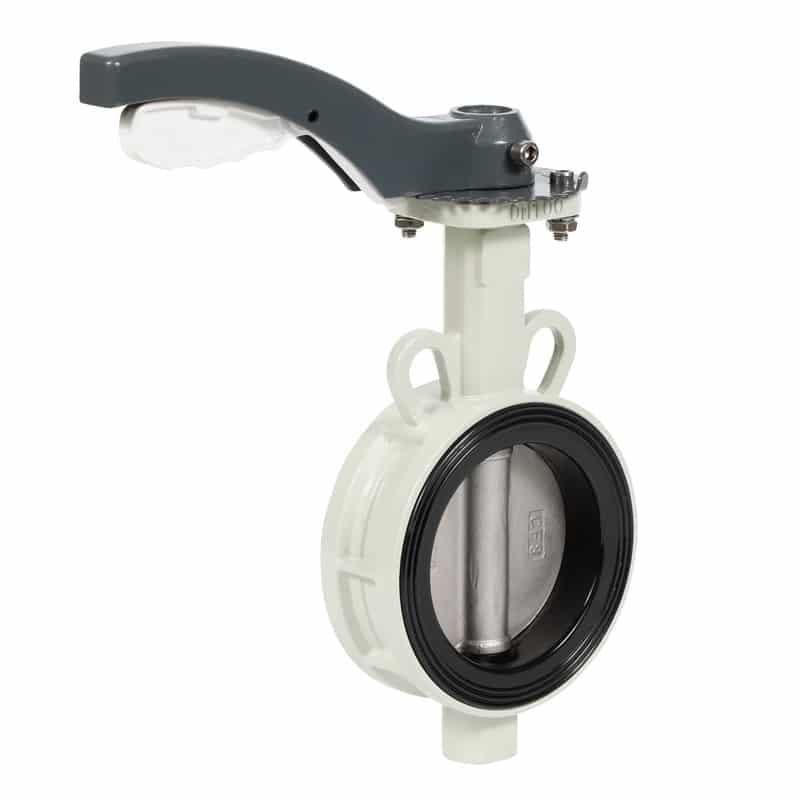

• Wafer-type butterfly valve with lever operator

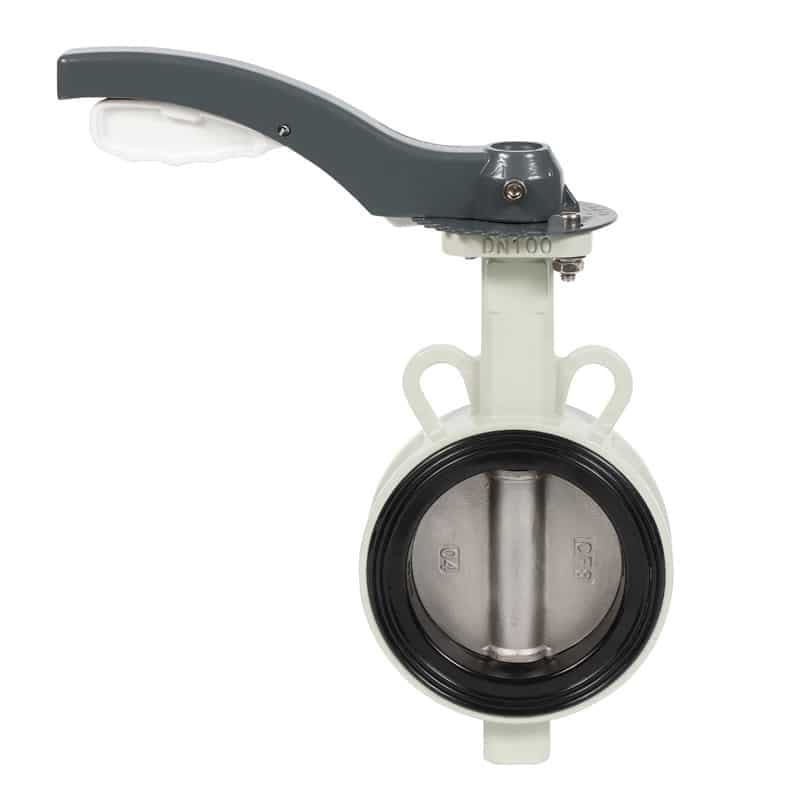

• DN100 size marking visible on stem/neck
• Valve body appears to be polypropylene or similar polymer (white/light grey)
• Stainless steel disc
• Black elastomeric seat/liner
• Grey cast lever handle with white position indicator
• Stainless steel stem fasteners
• Lug-style body with through-bolt holes

Notes

• Seat options listed in product header include Silicone and Hypalon which do not appear in the main materials table
• Size stated as DN50–DN1200 in the product header but DN50–DN1000 in the specification table

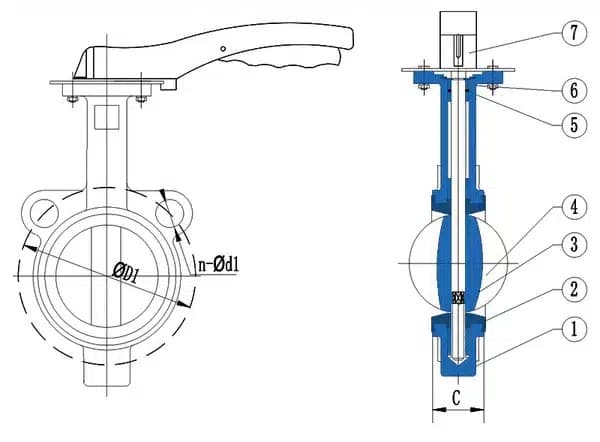

• Diagram: Sectional and front-view assembly drawing showing 7 numbered components: (1) body bottom/stub shaft, (2) seat/liner, (3) disc, (4) body upper, (5) stem, (6) stem upper/packing area, (7) actuator/handle mounting bracket. Dimension C denotes face-to-face length; D1 denotes bolt-circle diameter; n-d1 denotes number of bolt holes and hole diameter.

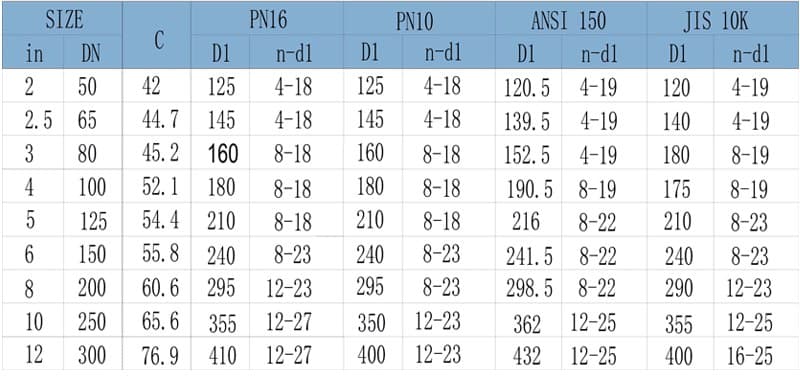

• Diagram: Dimension table correlating valve size (inches and DN) with face-to-face length C and bolt-circle/hole data for PN16, PN10, ANSI 150, and JIS 10K flange standards, covering DN50 to DN300.
