Aluminum Bronze Disc PTFE Seat Wafer Butterfly Valve with Handle

Size Range

DN50-DN1200

Pressure Class

PN10/PN16

Standards

API 609, ANSI 16.34, JIS B2064, GB/T 12238, DIN 3202, ISO 5752, BS 5155, API 598, ISO 5211, DIN 2501 PN10/16, ANSI 125/150/300, BS 4504, JIS 10K

End connection

Wafer

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

Available pressure classes

Pressure classes this product is rated to.

Configure your variant(manually adjust box on the right if you require a different spec)

Size

DN50 (2")DN65 (2 1/2")DN80 (3")DN100 (4")DN125 (5")DN150 (6")DN200 (8")DN250 (10")DN300 (12")DN350 (14")DN400 (16")DN450 (18")DN500 (20")DN600 (24")DN700 (28")DN800 (32")DN900 (36")DN1000 (40")DN1200 (48")

Pressure

PN10PN16

End connection

Wafer DIN 2501 PN10/16Wafer ANSI 125/150/300Wafer BS 4504Wafer JIS 10K

Materials

All available material options per part. Click a pill to set it in the configurator.

body

CIDICSSS

disc

Aluminum BronzeCF8CF8MDI+NiSS304

seat

EPDMNBRPTFEVITONHYPALON

stem

SS416SS316SS304CS

bushing

PTFEBronze

o ring

NBREPDM

pin

SS

Operating media

Actuation options

Approvals

Features

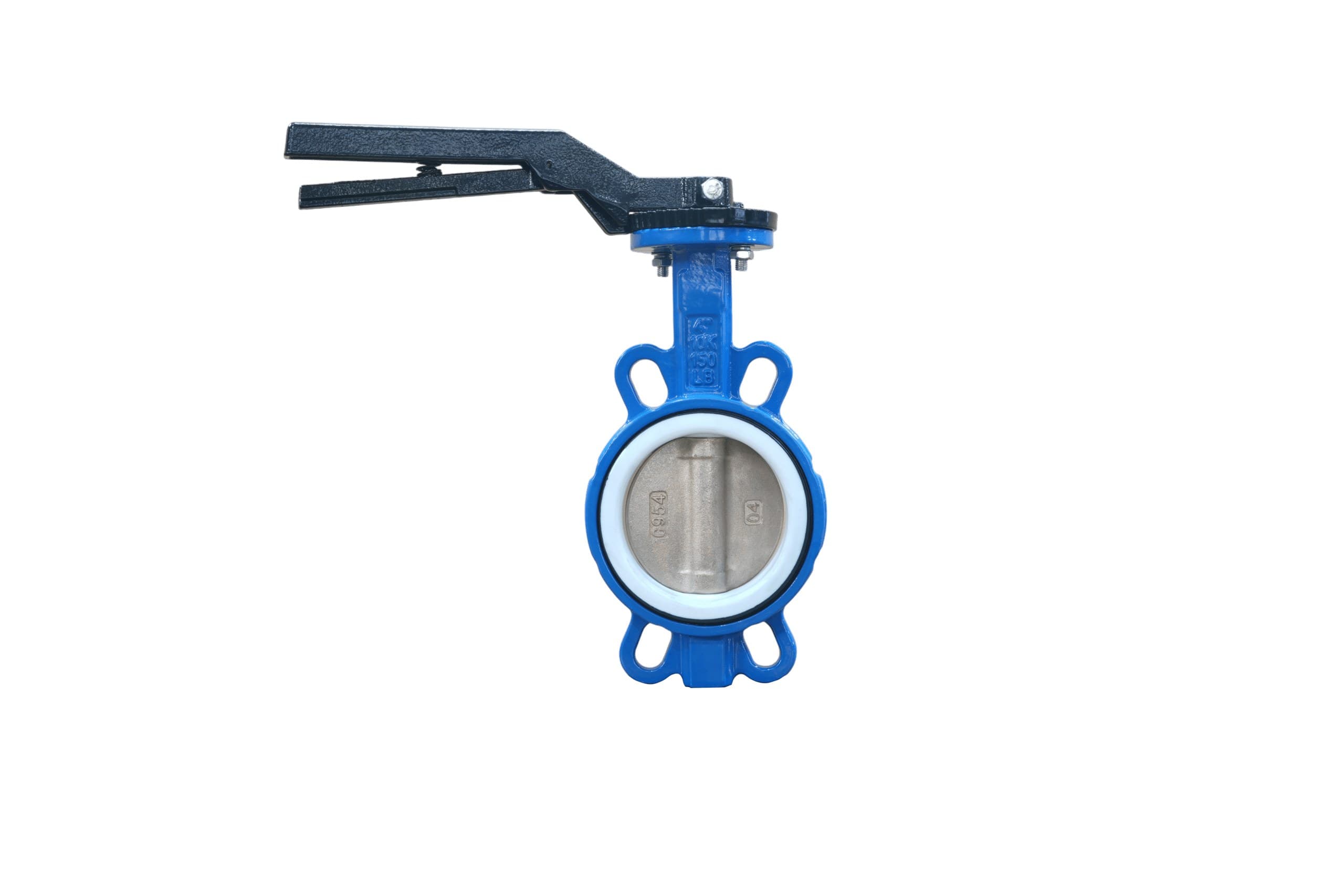

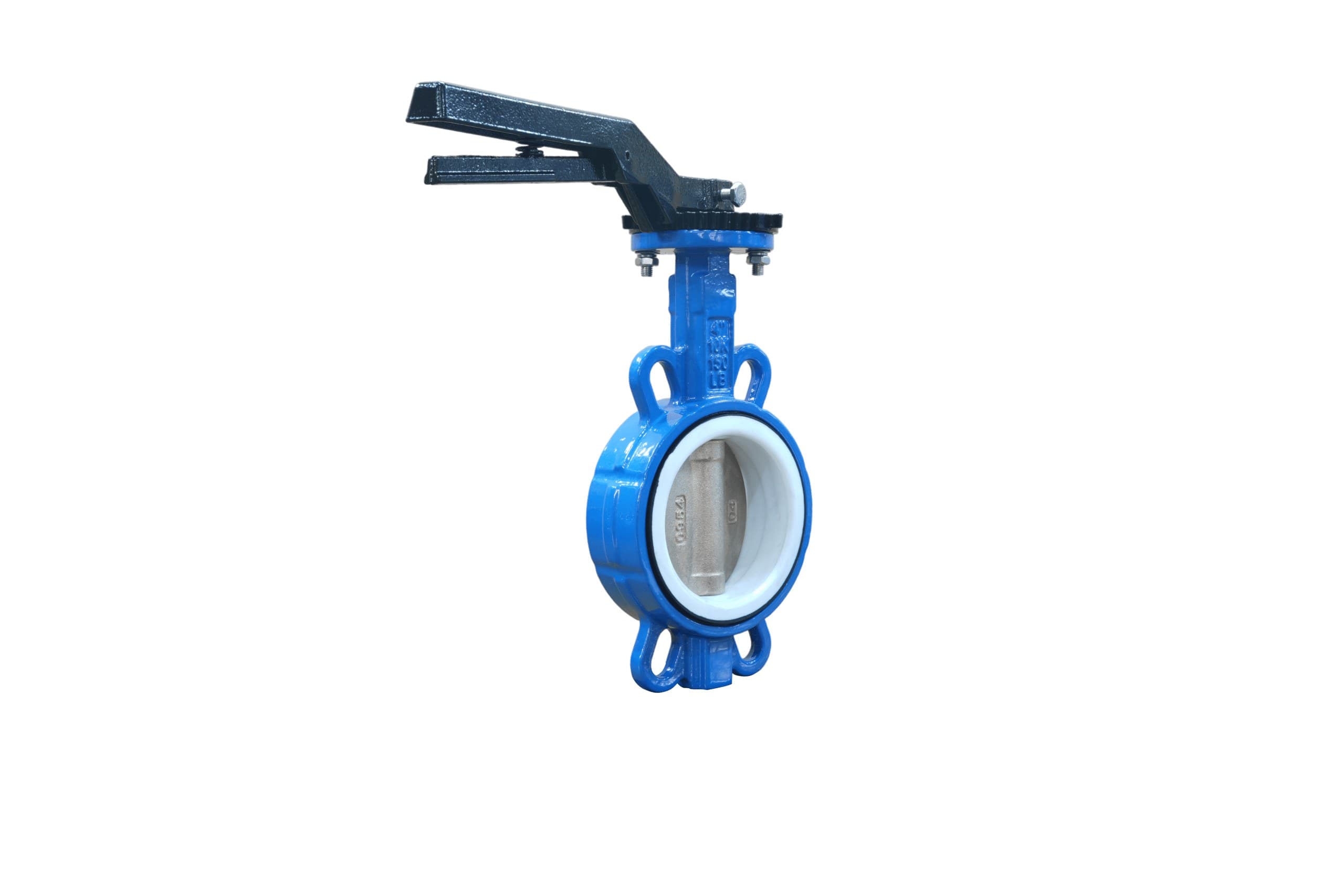

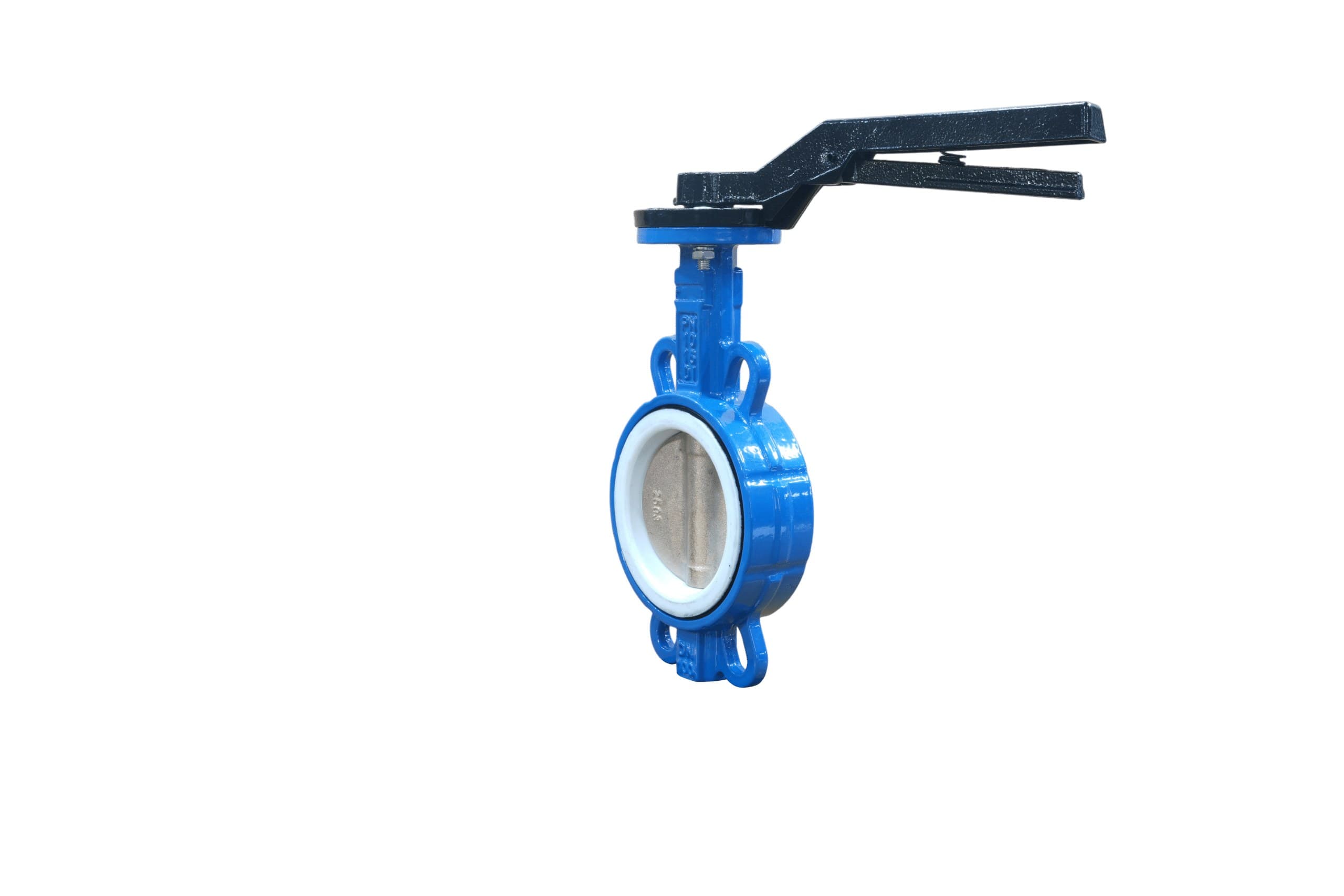

• Aluminium bronze disc for improved resistance to seawater and corrosion compared with ductile iron or carbon steel disc materials
• PTFE seat for sealing where rubber seats may be unsuitable
• Wafer-type body for installation between flanges
• Manual handle operation
• ISO 5211 top flange for actuator mounting
• Wafer-style butterfly valve body
• PTFE-lined seat/liner visible as white seating face
• Lever operator with notched positioning bracket
• Stainless steel disc
• Through-stem (pin-less) shaft design visible in sectional drawing
• Parts numbered 1–7 in sectional drawing: lower shaft (1), body (2), disc (3), seat/liner (4), upper shaft area (5), top flange/ISO mounting pad (6), stem seal/packing area (7)

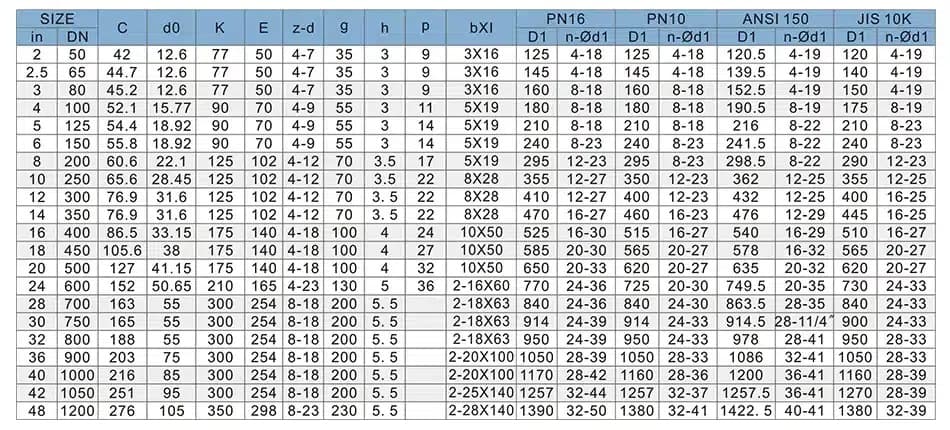

• Flanged drilling compatible with PN10, PN16, ANSI 150, JIS 10K

Notes

• Seat options also listed in product summary as: EPDM, NBR, PTFE, Viton, Neoprene, Hypalon, Silion — 'Neoprene' and 'Silion' (possibly Silicone) appear in the summary text but not in the formal materials table

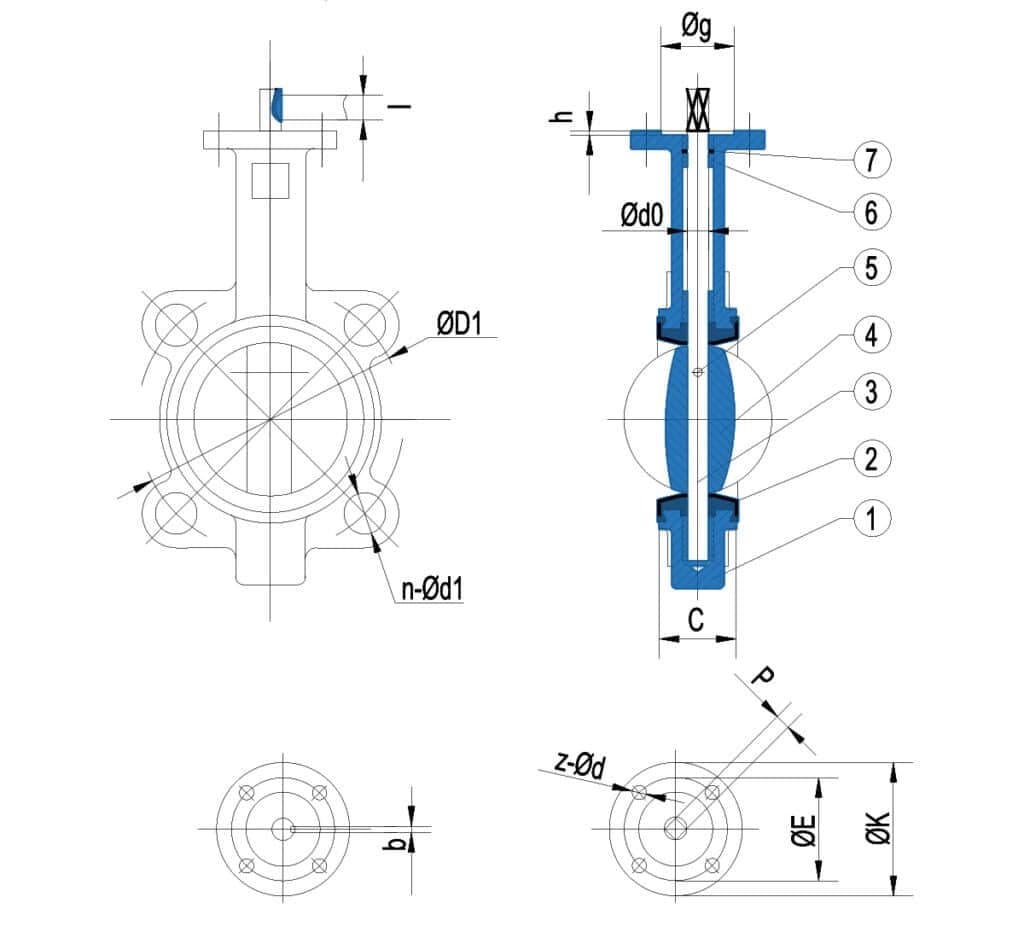

• Diagram: Sectional/dimensional drawing of wafer butterfly valve showing front elevation with bolt-hole circle dimensions (ØD1, n-ØD1), plan view of ISO mounting pad (dimension b), cross-section showing internal components numbered 1–7 with key dimensions (C, d0, Øg, h, ØE, ØK, z-Ød, p)

Description

A wafer-type butterfly valve featuring an aluminium bronze disc and PTFE seat, intended for manual isolation service in pipelines handling corrosive or chemically aggressive media. The aluminium bronze disc provides improved resistance to seawater and corrosion compared with standard ductile iron or carbon steel disc materials. Operated by a manual handle and suited to smaller and medium pipe sizes requiring frequent operation and dependable shut-off.
