Straight Type Mud Box
Model: VCVD-10
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN600
- Pressure Class
- PN2.5/PN4
- Standards
- DIN87 151-D Straight, DIN EN 12266, DIN EN 1092 PN10, DIN EN 1092 PN16, ANSI, JIS
- End connection
- Flanged (DIN EN 1092), options: ANSI, JIS Flanges
- Face-to-face
- DIN 3202 F1
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- o ring
- other.nut
- other.plug
- other.ring screw
- other.screen
- other.stud

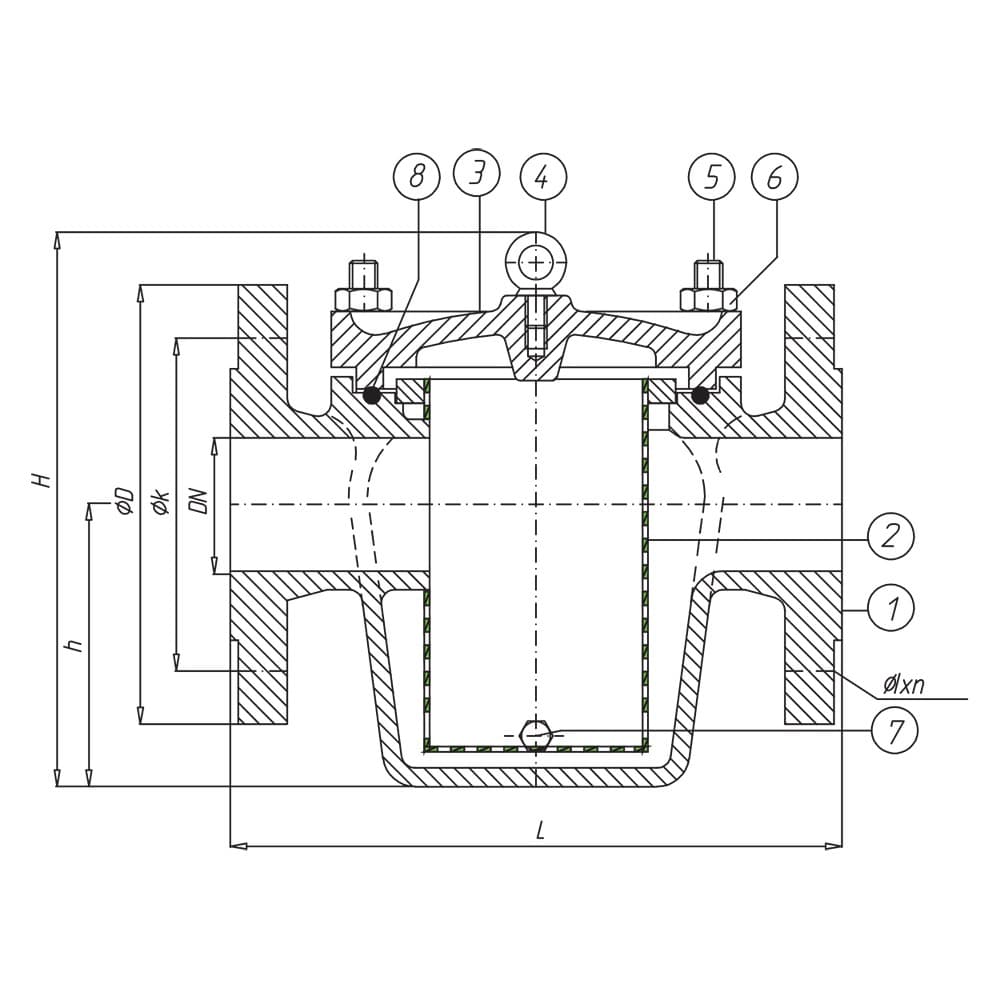

Dimensions per size(14 sizes)
| Size | L | H | h | Weight |
|---|---|---|---|---|
| DN40 | 200 mm | 205 mm | 95 mm | 14 kg |
| DN50 | 230 mm | 225 mm | 106 mm | 19 kg |
| DN65 | 290 mm | 260 mm | 134 mm | 26 kg |
| DN80 | 310 mm | 310 mm | 156 mm | 33 kg |
| DN100 | 350 mm | 345 mm | 185 mm | 45 kg |
| DN125 | 400 mm | 395 mm | 225 mm | 60 kg |
| DN150 | 480 mm | 465 mm | 265 mm | 86 kg |
| DN200 | 600 mm | 565 mm | 335 mm | 147 kg |
| DN250 | 600 mm | 610 mm | 345 mm | 180 kg |
| DN300 | 700 mm | 675 mm | 390 mm | 245 kg |
| DN350 | 800 mm | 790 mm | 425 mm | 325 kg |
| DN400 | 740 mm | 900 mm | 470 mm | 415 kg |
| DN500 | 1000 mm | 1100 mm | 525 mm | 550 kg |
| DN600 | 1100 mm | 1100 mm | 670 mm | 815 kg |
Operating media
Features
- Straight-type body configuration
- Totally stainless steel or bronze screen discs available as option in 3" and larger sizes
- Available with ANSI and JIS flange options
- Multiple body material options including bronze, cast iron, cast steel, stainless steel and duplex stainless steel
Description
A straight-type mud box (strainer) designed for pipelines carrying sea cooling water. Available in DN40–DN600, rated PN4 (DN40–DN400) and PN2.5 (DN500–DN600). Flanged end connections conforming to DIN EN 1092 PN10/PN16, with dimensions per DIN87 151-D Straight and DIN EN 12266.
