Quick Closing Valve Control Cabinet
Model: VKAB-10
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Pressure Class
- 31 bar
Configure your variant(manually adjust box on the right if you require a different spec)
- Pressure
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| Air Tank | °C | 31 bar |
| Pipe Connections Outlet | °C | 10 bar |
Operating media
Actuation options
Features
- Internal air tank rated to maximum 31 bar
- Pneumatic control circuit with pressure gauge
- 4 outlet pipe connections, tube Ø8 mm, operating pressure 5–10 bar
- Air supply inlet and air tank inlet via tube Ø12 mm, max. 31 bar
- Panel-mounted lamp indicator and close/open selector switch on front door
- Transparent window on cabinet door for internal component visibility
Description

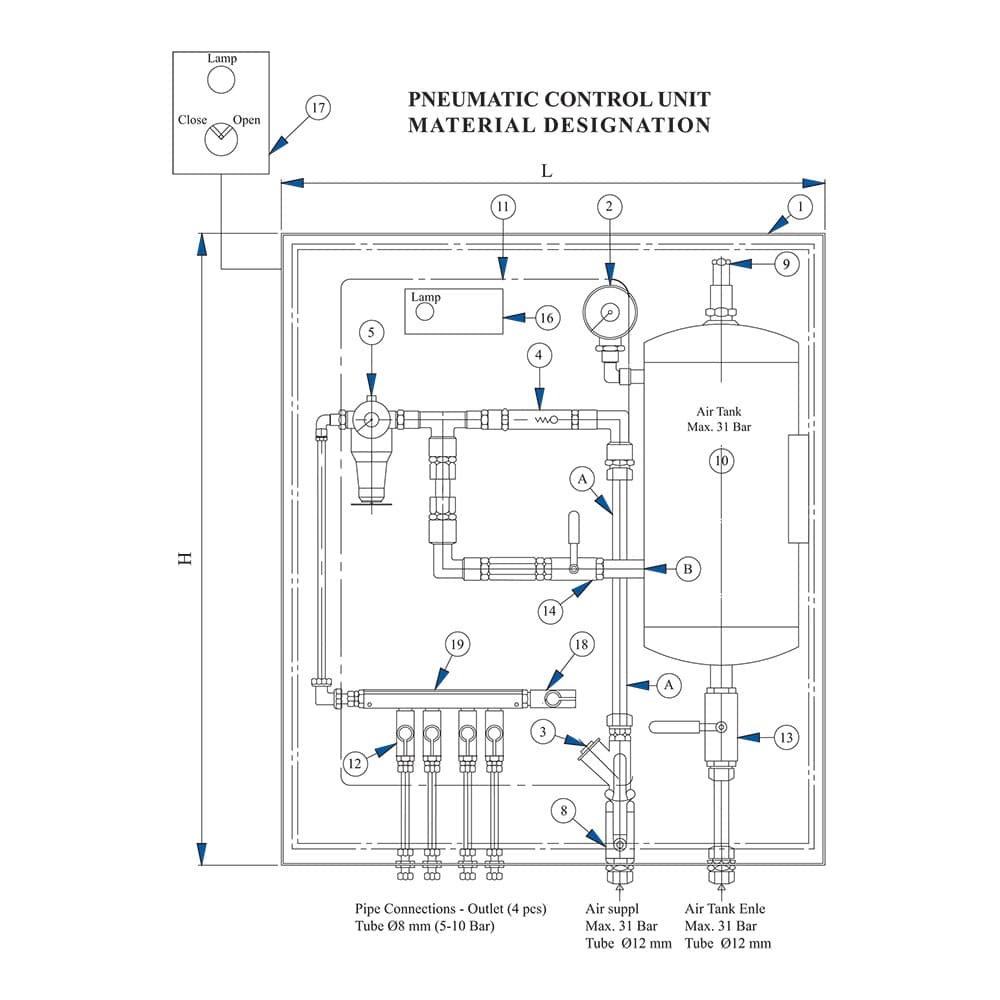

Pneumatic control cabinet designed for operation of quick closing valves. The unit houses an internal air tank rated to a maximum of 31 bar, pressure gauge, solenoid valve, and pneumatic control components within an enclosure. Pipe connections are provided for outlet (4 pcs, tube Ø8 mm, 5–10 bar), air supply (max. 31 bar, tube Ø12 mm), and air tank inlet (max. 31 bar, tube Ø12 mm).
