SS SDNR Globe Valve - BSP
Model: VKCDS-20
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN50
- Pressure Class
- 20 Bar
- Standards
- BSPT
- End connection
- BSPT
- Operating temperature
- -20~180 ยบC
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- packing
- gasket
- handwheel
- other.gland
- other.gland nut
- other.nameplate
- other.nut

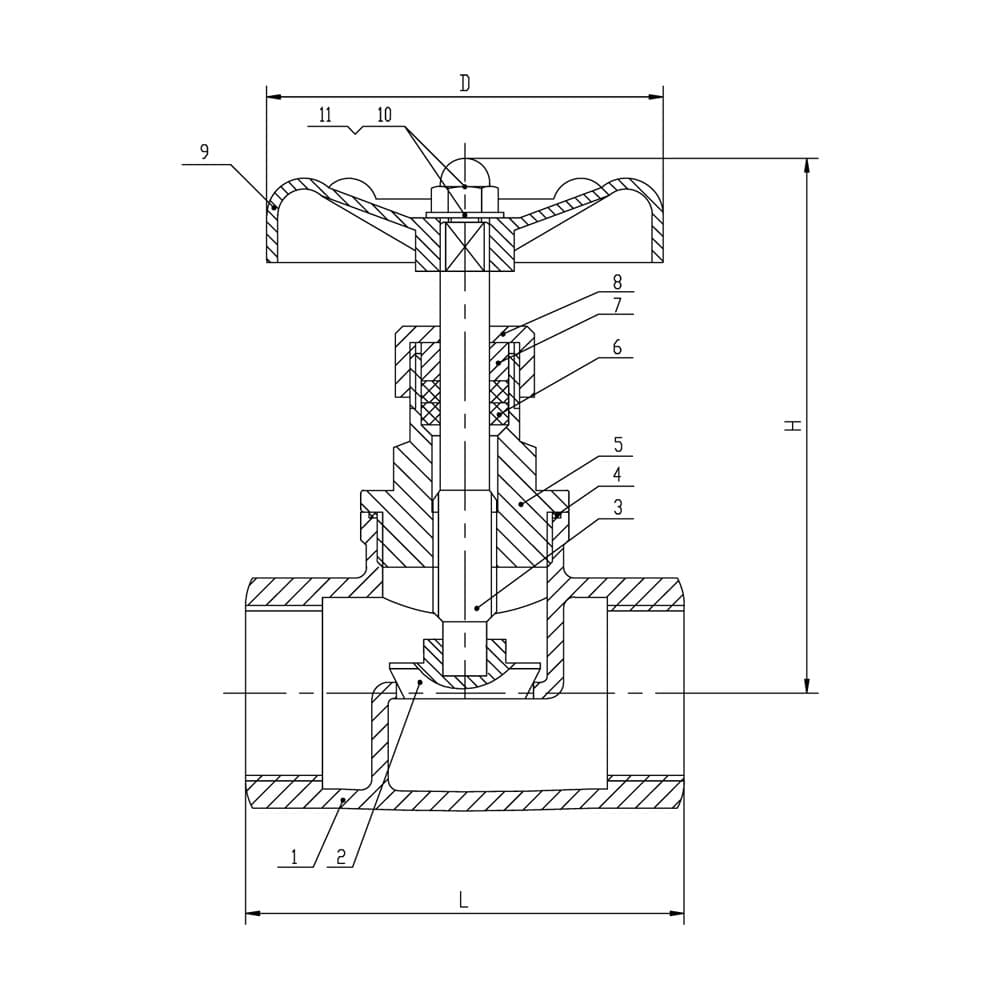

Dimensions per size(6 sizes)
| Size | L | D | H | Weight |
|---|---|---|---|---|
| DN15 | 59 mm | 64 mm | 90 mm | โ |
| DN20 | 69 mm | 64 mm | 95 mm | โ |
| DN25 | 79 mm | 73 mm | 105 mm | โ |
| DN32 | 98 mm | 76 mm | 125 mm | โ |
| DN40 | 104 mm | 98 mm | 135 mm | โ |
| DN50 | 119 mm | 98 mm | 145 mm | โ |
Operating media
Actuation options
Description
A stainless steel SDNR globe valve with BSP threaded end connections, rated to 20 bar. Available in sizes DN15 to DN50 with BSPT ends. Suitable for water, oil, and gas applications across a temperature range of -20 to 180ยฐC.
