API Globe Valve

Name: API Globe Valve
Brand: Euro Flow Control
SKU: EFC-4
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: fbk · ref: 4

Specifications

Confirmed at quote

Size Range: NPS 2"-NPS 24"
Pressure Class: CLASS 150LB/CLASS 900LB
Standards: BS 1873, ASME B16.5, ASME B16.47, B16.11, B16.25, ASME B16.10, API 598
Face-to-face: ASME B16.10
Operating temperature: -29~425°C

Available pressure classes

Pressure classes this product is rated to.

Class 150 Class 300 Class 600 Class 900

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
stem
packing
gasket
back seat
bolt
eye bolt
gland
gland flange
hand wheel
nameplate
nut
pin
sleeve
stem nut

Dimensions per size(37 sizes)

Size	d	D	D1	D2	b	f	n_bolt_circle	L	H	W	Weight
NPS 2" (150LB)	51 mm	152 mm	120.5 mm	92 mm	16 mm	1.6 mm	4-ø19 mm	203 mm	315 mm	200 mm	—
NPS 2.5" (150LB)	64 mm	178 mm	139.5 mm	105 mm	18 mm	1.6 mm	4-ø19 mm	216 mm	341 mm	220 mm	—
NPS 3" (150LB)	76 mm	190 mm	152.5 mm	127 mm	19 mm	1.6 mm	4-ø19 mm	241 mm	395 mm	250 mm	—
NPS 4" (150LB)	102 mm	229 mm	190.5 mm	157 mm	24 mm	1.6 mm	8-ø19 mm	292 mm	436 mm	280 mm	—
NPS 5" (150LB)	127 mm	254 mm	216 mm	186 mm	24 mm	1.6 mm	8-ø22 mm	356 mm	474 mm	300 mm	—
NPS 6" (150LB)	152 mm	279 mm	241.5 mm	216 mm	26 mm	1.6 mm	8-ø22 mm	406 mm	530 mm	400 mm	—
NPS 8" (150LB)	203 mm	343 mm	298.5 mm	270 mm	29 mm	1.6 mm	8-ø22 mm	495 mm	608 mm	450 mm	—
NPS 10" (150LB)	254 mm	406 mm	362 mm	324 mm	31 mm	1.6 mm	12-ø25 mm	622 mm	897 mm	500 mm	—
NPS 12" (150LB)	305 mm	483 mm	432 mm	381 mm	32 mm	1.6 mm	12-ø25 mm	698 mm	1018 mm	600 mm	—
NPS 14" (150LB)	337 mm	533 mm	476 mm	413 mm	35 mm	1.6 mm	12-ø29 mm	787 mm	1168 mm	530 mm	—
NPS 16" (150LB)	387 mm	597 mm	540 mm	470 mm	37 mm	1.6 mm	16-ø29 mm	914 mm	1328 mm	530 mm	—
NPS 18" (150LB)	438 mm	635 mm	578 mm	533 mm	40 mm	1.6 mm	16-ø32 mm	978 mm	1508 mm	600 mm	—
NPS 20" (150LB)	489 mm	699 mm	635 mm	584 mm	43 mm	1.6 mm	20-ø32 mm	978 mm	1628 mm	600 mm	—
NPS 24" (150LB)	591 mm	813 mm	749.5 mm	693 mm	48 mm	1.6 mm	20-ø35 mm	1295 mm	1740 mm	600 mm	—
NPS 2" (300LB)	51 mm	165 mm	127 mm	92 mm	23 mm	1.6 mm	8-ø19 mm	267 mm	320 mm	220 mm	—
NPS 2.5" (300LB)	64 mm	190 mm	149 mm	105 mm	26 mm	1.6 mm	8-ø22 mm	292 mm	395 mm	250 mm	—
NPS 3" (300LB)	76 mm	210 mm	168.5 mm	127 mm	29 mm	1.6 mm	8-ø22 mm	318 mm	425 mm	300 mm	—
NPS 4" (300LB)	102 mm	254 mm	200 mm	157 mm	32 mm	1.6 mm	8-ø22 mm	356 mm	465 mm	350 mm	—
NPS 5" (300LB)	127 mm	279 mm	235 mm	186 mm	35 mm	1.6 mm	8-ø22 mm	400 mm	570 mm	400 mm	—
NPS 6" (300LB)	152 mm	318 mm	270 mm	216 mm	37 mm	1.6 mm	12-ø22 mm	444.5 mm	562 mm	450 mm	—
NPS 8" (300LB)	203 mm	381 mm	330 mm	270 mm	42 mm	1.6 mm	12-ø25 mm	559 mm	709 mm	500 mm	—
NPS 10" (300LB)	254 mm	445 mm	387.5 mm	324 mm	48 mm	1.6 mm	16-ø29 mm	622 mm	856 mm	500 mm	—
NPS 12" (300LB)	305 mm	521 mm	451 mm	381 mm	51 mm	1.6 mm	16-ø32 mm	711 mm	1006 mm	500 mm	—
NPS 2" (600LB)	51 mm	165 mm	127 mm	92 mm	26 mm	6.4 mm	8-ø19 mm	292 mm	358 mm	280 mm	—
NPS 3" (600LB)	76 mm	210 mm	168 mm	127 mm	32 mm	6.4 mm	8-ø22 mm	356 mm	505 mm	300 mm	—
NPS 4" (600LB)	102 mm	273 mm	216 mm	157 mm	38 mm	6.4 mm	8-ø25 mm	432 mm	603 mm	400 mm	—
NPS 6" (600LB)	152 mm	356 mm	292 mm	216 mm	48 mm	6.4 mm	12-ø29 mm	559 mm	752 mm	500 mm	—
NPS 8" (600LB)	200 mm	419 mm	349 mm	270 mm	56 mm	6.4 mm	12-ø32 mm	660 mm	876 mm	550 mm	—
NPS 10" (600LB)	248 mm	508 mm	432 mm	324 mm	64 mm	6.4 mm	16-ø35 mm	787 mm	920 mm	650 mm	—
NPS 12" (600LB)	298 mm	559 mm	489 mm	381 mm	67 mm	6.4 mm	20-ø35 mm	838 mm	1100 mm	530 mm	—
NPS 2" (900LB)	47 mm	216 mm	165 mm	92 mm	38.5 mm	6.4 mm	8-ø26 mm	368 mm	405 mm	280 mm	—
NPS 3" (900LB)	73 mm	241 mm	190.5 mm	127 mm	38.5 mm	6.4 mm	8-ø26 mm	381 mm	609 mm	400 mm	—
NPS 4" (900LB)	98 mm	292 mm	235 mm	157 mm	44.5 mm	6.4 mm	8-ø32 mm	457 mm	654 mm	450 mm	—
NPS 6" (900LB)	146 mm	381 mm	317.5 mm	216 mm	56 mm	6.4 mm	12-ø32 mm	610 mm	790 mm	600 mm	—
NPS 8" (900LB)	190 mm	470 mm	393.5 mm	270 mm	63.5 mm	6.4 mm	12-ø38 mm	737 mm	890 mm	600 mm	—
NPS 10" (900LB)	238 mm	546 mm	470 mm	324 mm	70 mm	6.4 mm	16-ø38 mm	838 mm	1054 mm	530 mm	—
NPS 12" (900LB)	282 mm	610 mm	533.5 mm	381 mm	79.5 mm	6.4 mm	20-ø38 mm	965 mm	1295 mm	530 mm	—

Operating media

WaterSteamOil

Actuation options

handwheelgear operator

Features

Double disc configuration for larger sizes (CLASS 150LB: 10" and above; CLASS 300LB: 8" and above)
Back seat provision with back seal test
Gear operator fitted from 10" or 14" depending on pressure class
Graphite or PTFE packing options for stainless steel variants
Flanged end connections visible on valve body

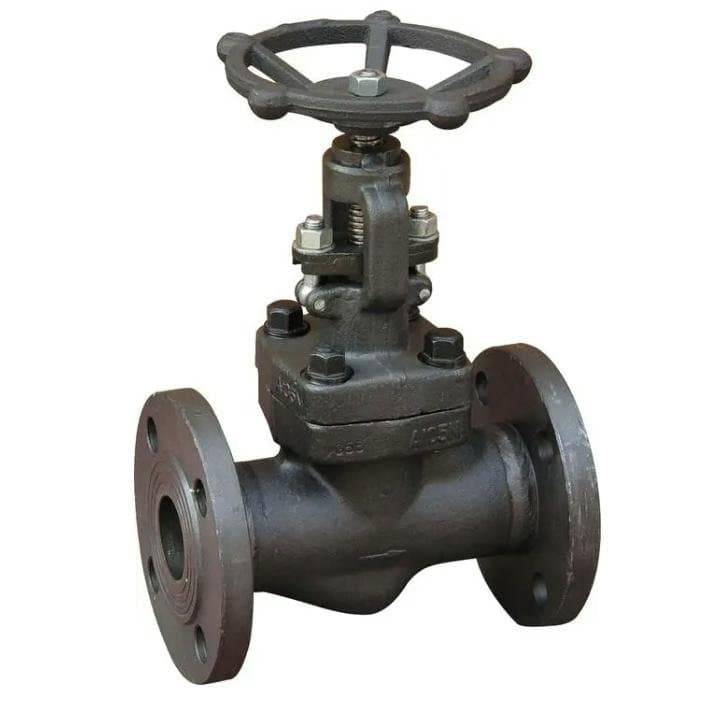

Handwheel operated (manual) globe valve
Bolted bonnet construction
Class 300 pressure rating cast on body (image index 6)
DN100 (4 inch) size marking on body (image index 6)
Sectional drawing (index 7) shows approximately 18 numbered part callouts including body, bonnet, stem, disc, packing, gland, handwheel and associated fasteners
Dimensional drawing (index 8) shows key envelope dimensions: L (face-to-face), W (handwheel diameter), H (height), D (flange OD), B (flange thickness), f (raised face height)
Dimensional drawings (indices 9 and 10) show similar envelope dimensions for different pressure classes or sizes
Cross-section views indicate inside-screw, rising-stem design

Notes

CLASS 150LB 10" and above will be double disc
CLASS 150LB 14" and above Gear OP.
CLASS 300LB 8" and above will be double disc
CLASS 300LB 14" and above Gear OP.
CLASS 600LB 10" and above Gear OP.
CLASS 900LB 10" and above Gear OP.
Size range stated as NPS 2" to 48" but dimension tables only extend to NPS 24" (150LB), NPS 12" (300LB, 600LB, 900LB)
Diagram: Index 7: Side-by-side product photograph and numbered exploded/sectional assembly drawing of a flanged globe valve; approximately 18 part callout numbers visible; dimension lines L and H shown
Diagram: Index 8: Side-by-side product photograph and cross-sectional dimensional drawing; dimension labels W, L, H, D, B, f visible; arrows indicate flow direction through body
Diagram: Index 9: Side-by-side product photograph and cross-sectional dimensional drawing; dimension labels W, L, H, B, f visible; similar layout to index 8 but appears to represent a different size/class
Diagram: Index 10: Side-by-side product photograph and cross-sectional dimensional drawing; dimension labels W, L, H, B, f visible; similar layout to indices 8 and 9

Description

Cast steel globe valve designed and manufactured to BS 1873, available in sizes NPS 2" to 48" across pressure classes CLASS 150LB to 2500LB. Body materials include WCB, LCB, LCC, WC6, C5, C12, CF8, CF8M, CF3, CF3M, and CF8C. Flange dimensions conform to ASME B16.5 and ASME B16.47; face-to-face per ASME B16.10; testing per API 598.
