Control Valve

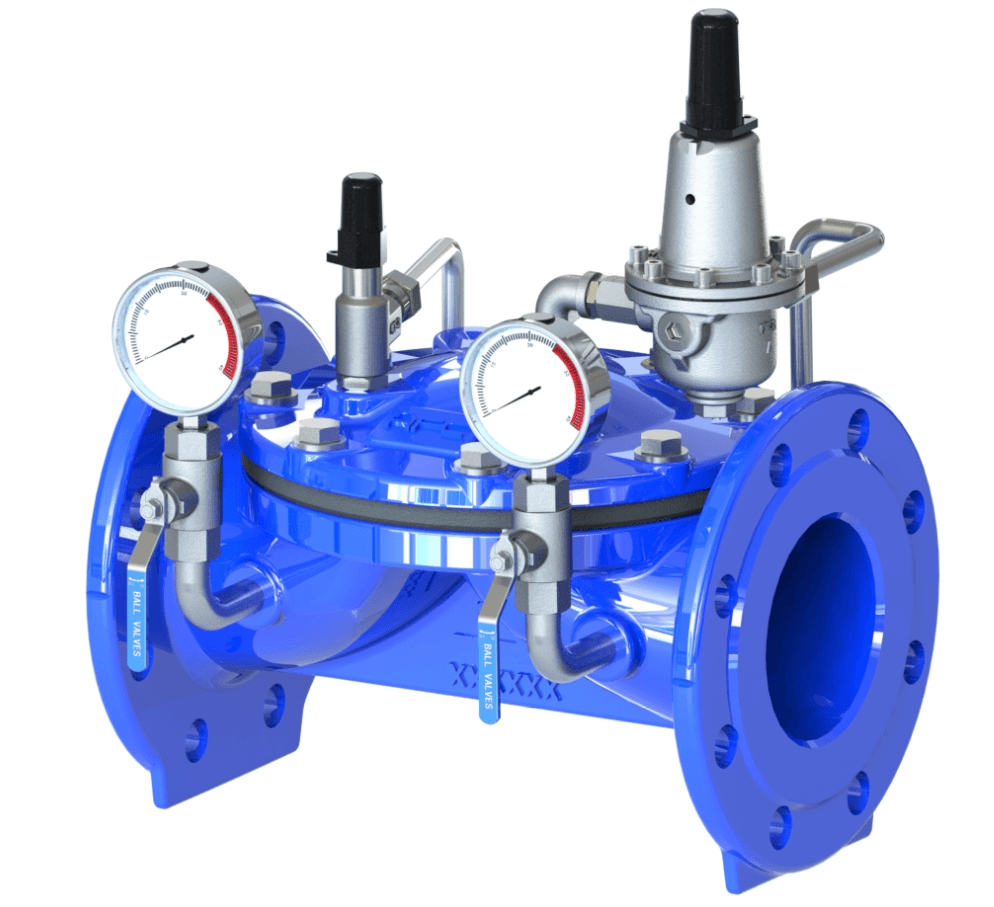

D200 Direct Membrane Pressure Reducing Valve

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: afc · ref: 367

Specifications

Confirmed at quote
Size Range
DN15–DN100
Pressure Class
PN16
Standards
EN 1074-5
End connection
Threaded BSP / Flanged PN16

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15DN20DN25DN32DN40DN50DN65DN80DN100

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

Body
Diaphragm

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

ClassTemperatureMax pressure
PN16-10°C16 bar
PN1680°C16 bar

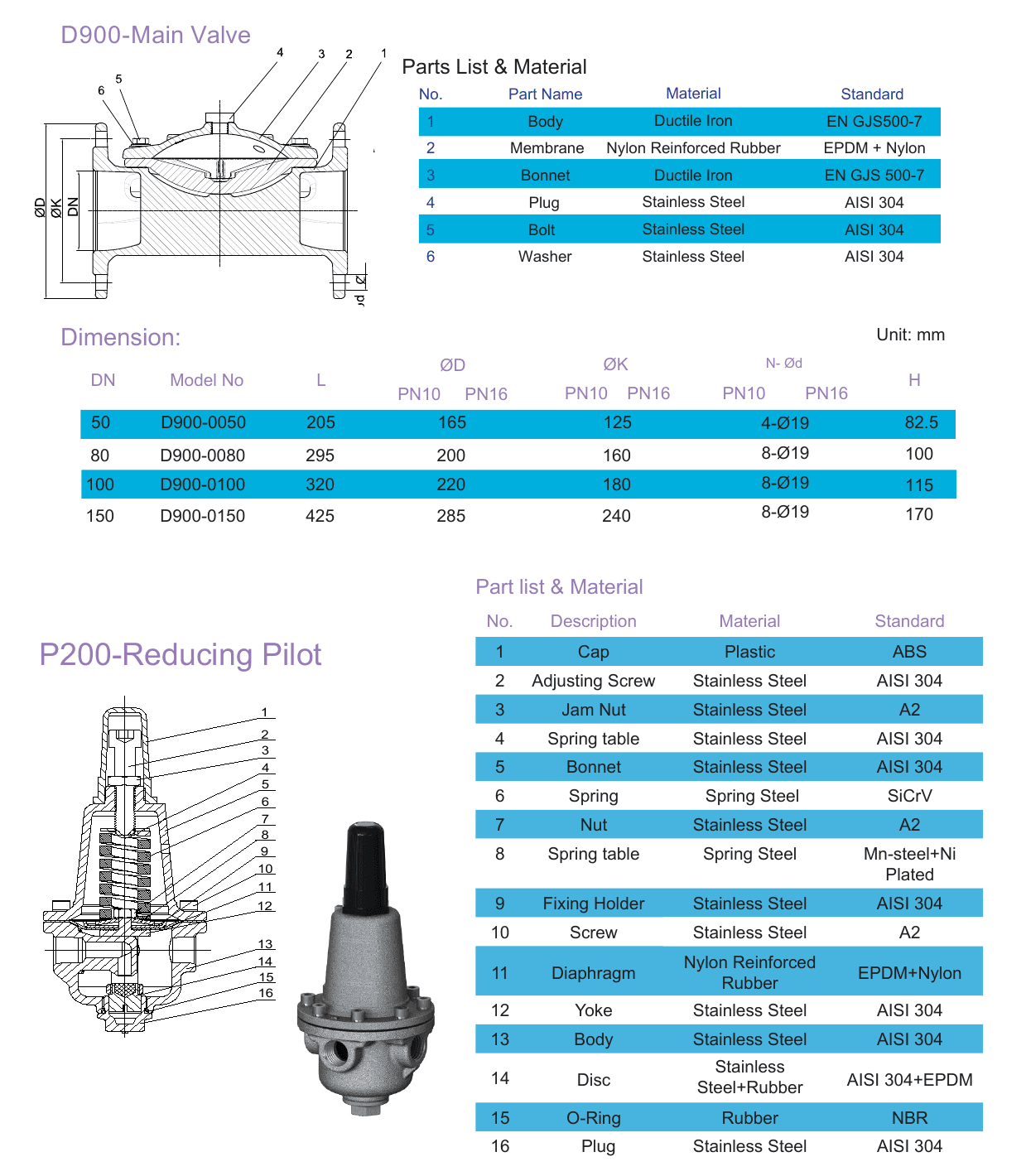

Dimensions per size(4 sizes)
SizeLØDØKHWeight
DN50205 mm165 mm125 mm82.5 mm—
DN80295 mm200 mm160 mm100 mm—
DN100320 mm220 mm180 mm115 mm—
DN150425 mm285 mm240 mm170 mm—

Approvals

WRASISO 9001

Features

  • The D200 is a direct-acting pressure reducing valve using a spring-loaded diaphragm to maintain constant downstream pressure without a separate pilot circuit
  • The compact, self-contained design has fewer components than a pilot-operated PRV and is easier to install and service
  • Suitable for small diameter applications, building services and low-flow duties where the accuracy of a full pilot-operated A200 is not required

Description

Direct-acting membrane PRV for compact installations. The D200 is a direct-acting pressure reducing valve using a spring-loaded diaphragm to maintain constant downstream pressure without a separate pilot circuit. The compact, self-contained design has fewer components than a pilot-operated PRV and is easier to install and service. Suitable for small diameter applications, building services and low-flow duties where the accuracy of a full pilot-operated A200 is not required.
