Bronze Marine Valve

Lift Type Check Valve (Marine)

Debug Β· supplier source (internal only)

Supplier product page β†—EFC datasheet PDF β†—supplier: visvana Β· ref: 203

Specifications

Confirmed at quote
Size Range
DN25-DN65
Pressure Class
PN16/PN40
Standards
DIN EN 10226-1 PN 16, DIN 2533, DIN 3202/2 F32, TS 10873
End connection
DIN 2533 (Flanş)

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN25DN32DN40DN50DN65

Available pressure classes

Pressure classes this product is rated to.

PN16PN25PN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
seat
gasket
spring
seat ring
stud nut

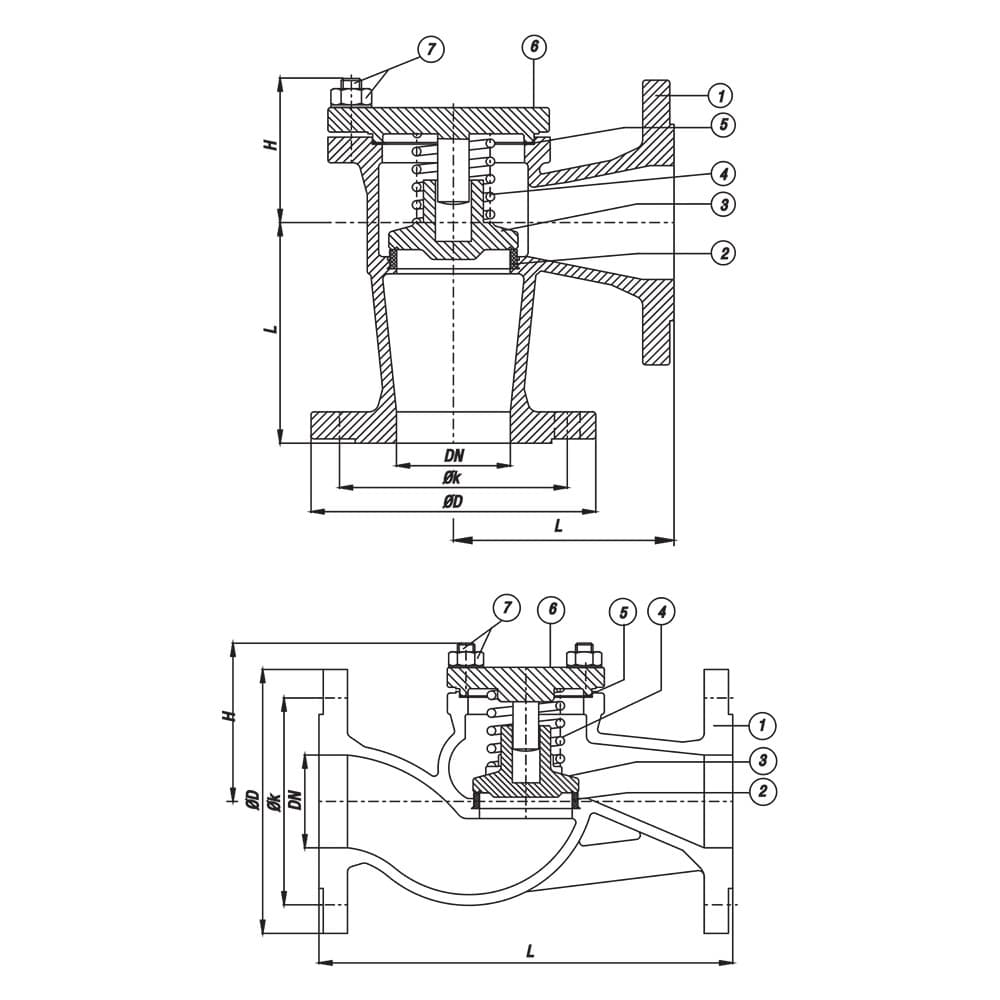

Dimensions per size(5 sizes)
SizeLHOd1tAAWeight
DN25125 mm80 mm1" inch17 mm50 mm1.7 kg
DN32135 mm85 mm1 1/4" inch25 mm65 mm2.4 kg
DN40151 mm105 mm1 1/2" inch27 mm75 mm3 kg
DN50175 mm125 mm2" inch31 mm90 mm4 kg
DN65202 mm135 mm2 1/2" inch31 mm95 mm5.5 kg

Features

  • Spring-assisted lift disc mechanism
  • Available with flanged end connections to DIN 2533
  • Multiple body and bonnet material options including cast iron, ductile iron, cast steel, bronze, stainless steel, and duplex stainless steel

Description

A lift type check valve designed for marine applications, available in a range of body and bonnet materials including cast iron, ductile iron, bronze, and stainless steel. Rated to PN16–40 and covering nominal diameters DN15 to DN600. End connections are flanged to DIN 2533 with face-to-face dimensions per DIN 3202/2 F32 and TS 10873.
