Double Flanged Butterfly Valve

Name: Double Flanged Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-102
Availability: InStock

Model: VFKV-16

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 102

Specifications

Confirmed at quote

Size Range: DN100-DN1200
Pressure Class: PN10/PN40
Standards: DIN 3202/2-F4, EN 558 Serie 14, DIN 3202 F4, EN 558 Serie 13, BS 5155, EN 12266, EN 1092, DIN 2501, BS 4504, TS 810
End connection: Double flanged (TS 810 DIN 2501 BS 4504)
Face-to-face: DIN 3202/2-F4 / BS 5155

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700 DN800 DN900 DN1000 DN1200

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
stem
bushing
o ring
other.bolt
other.cover driven end
other.cover free end
other.key
other.reating ring
other.screw
other.sealing ring
other.setscrew
other.stem free end
other.worm gear unit

Dimensions per size(17 sizes)

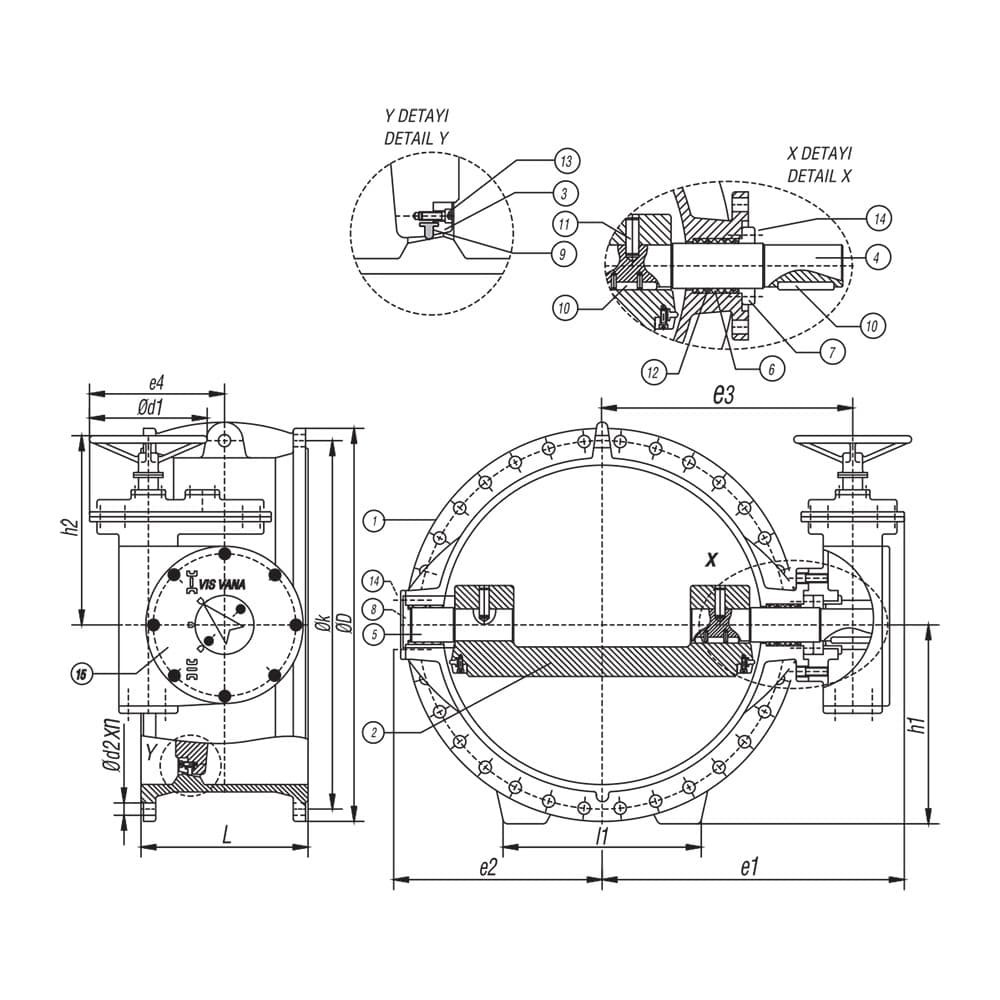

Size	L_EN558_S14	L_BS5155	e1	e2	e3	h1	d1	l1	Weight
DN100	190 mm	127 mm	250 mm	105 mm	198 mm	110 mm	180 mm	—	30 kg
DN125	200 mm	140 mm	262 mm	117 mm	210 mm	125 mm	180 mm	—	35 kg
DN150	210 mm	140 mm	284 mm	128 mm	232 mm	143 mm	180 mm	—	45 kg
DN200	230 mm	152 mm	307 mm	157 mm	255 mm	170 mm	180 mm	—	50 kg
DN250	250 mm	165 mm	387 mm	213 mm	319 mm	212 mm	—	260 mm	95 kg
DN300	270 mm	178 mm	423 mm	242 mm	355 mm	240 mm	—	335 mm	120 kg
DN350	290 mm	190 mm	438 mm	273 mm	370 mm	270 mm	—	345 mm	160 kg
DN400	310 mm	216 mm	482 mm	299 mm	414 mm	295 mm	—	375 mm	200 kg
DN450	330 mm	222 mm	515 mm	335 mm	447 mm	325 mm	—	450 mm	255 kg
DN500	350 mm	229 mm	573 mm	355 mm	491 mm	367 mm	—	470 mm	300 kg
DN600	390 mm	267 mm	641 mm	430 mm	559 mm	430 mm	—	545 mm	460 kg
DN700	430 mm	292 mm	729 mm	465 mm	599 mm	465 mm	—	590 mm	635 kg
DN800	470 mm	318 mm	790 mm	521 mm	660 mm	522 mm	—	660 mm	790 kg
DN900	510 mm	330 mm	845 mm	576 mm	715 mm	570 mm	—	720 mm	1020 kg
DN1000	550 mm	410 mm	920 mm	650 mm	790 mm	632 mm	—	770 mm	1355 kg
DN1100	590 mm	440 mm	980 mm	710 mm	850 mm	695 mm	—	—	1710 kg
DN1200	630 mm	470 mm	1168 mm	765 mm	945 mm	752 mm	—	—	2400 kg

Actuation options

worm gear

Description

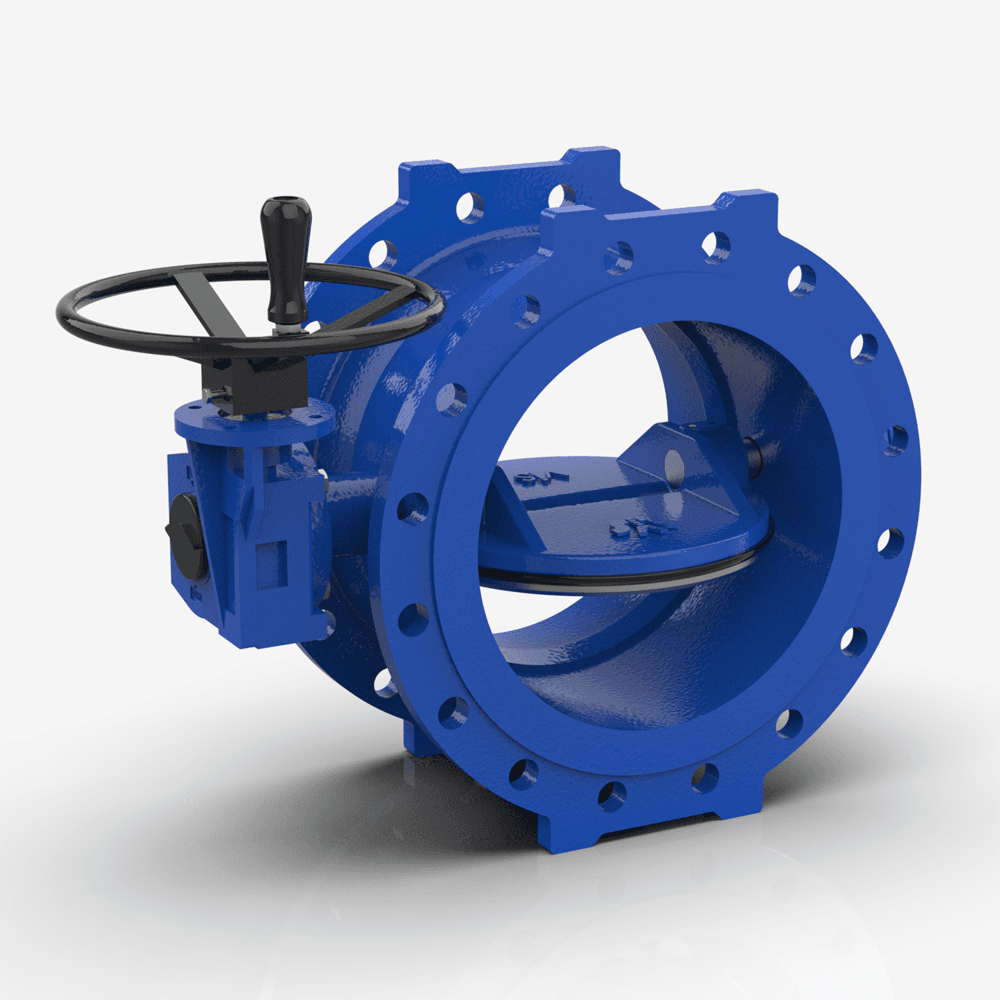

A double-flanged butterfly valve available in sizes DN100 to DN1200 and pressure ratings PN10 to PN40. The body is constructed from ductile iron or cast steel with stainless steel shaft options. Designed to EN 558 face-to-face dimensions and tested to EN 12266.
