SS SDSL Globe Valve - BSP
Model: VDBS-20
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN50
- Pressure Class
- 20 bar
- Standards
- BS-20, BSPT
- End connection
- BSPT
- Operating temperature
- -20~180 ยฐC
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- packing
- gasket
- handwheel
- other.gland
- other.gland nut
- other.nameplate
- other.nut

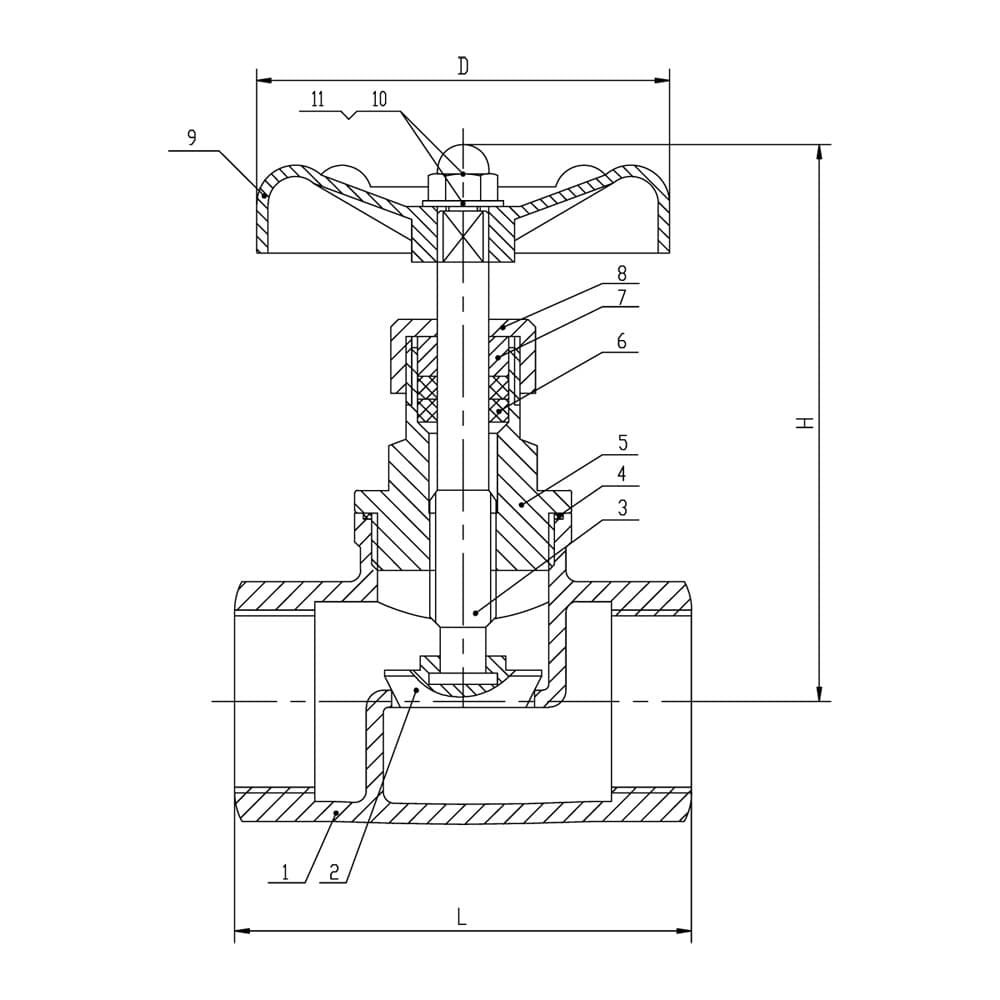

Dimensions per size(6 sizes)
| Size | L | D | H | Weight |
|---|---|---|---|---|
| DN15 | 59 mm | 64 mm | 90 mm | โ |
| DN20 | 69 mm | 64 mm | 95 mm | โ |
| DN25 | 79 mm | 73 mm | 105 mm | โ |
| DN32 | 98 mm | 76 mm | 125 mm | โ |
| DN40 | 104 mm | 98 mm | 135 mm | โ |
| DN50 | 119 mm | 98 mm | 145 mm | โ |
Operating media
Actuation options
Description
A stainless steel threaded globe valve with BSPT end connections, rated to 20 bar. Available in sizes DN15 to DN50 with a temperature range of -20 to 180ยฐC. Suitable for water, oil, and gas applications.
