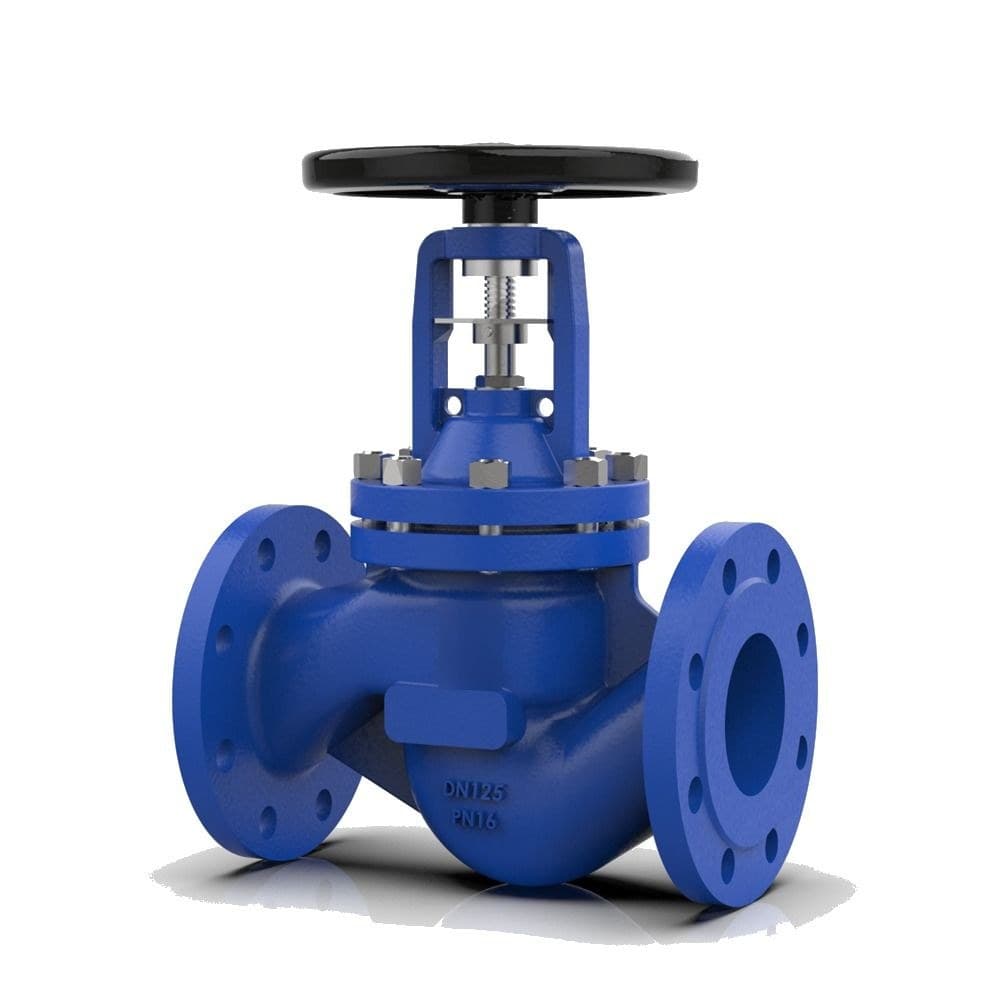

Straight Type Cast Steel Globe Valve
Model: VDB-64
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN250
- Pressure Class
- PN64
- Standards
- DIN 3356, EN 558 Serie 2, DIN 3202 F2, EN 1092-2/B, EN 12266, DIN EN 558-1-FTF 2
- End connection
- EN 1092-2/B
- Face-to-face
- EN 558 Serie 2, DIN 3202 F2
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- seat
- stem
- packing
- gasket
- handwheel
- other.disc nut
- other.gland
- other.stud nut
- other.t stud nut
Dimensions per size(13 sizes)
| Size | L | H | D | k | d4 | b | Oxn | Strok_max | OC | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 210 mm | 230 mm | 105 mm | 75 mm | 45 mm | 20 mm | 14 mm | 11 mm | — | 9.5 kg |
| DN20 | 230 mm | 230 mm | 130 mm | 90 mm | 58 mm | 24 mm | 18 mm | 11 mm | 160 mm | 11 kg |
| DN25 | 230 mm | 230 mm | 140 mm | 100 mm | 68 mm | 24 mm | 18 mm | 11 mm | 160 mm | 12.5 kg |
| DN32 | 260 mm | 310 mm | 155 mm | 110 mm | 78 mm | 26 mm | 22 mm | 17 mm | — | 16.5 kg |
| DN40 | 260 mm | 310 mm | 170 mm | 125 mm | 88 mm | 28 mm | 22 mm | 17 mm | 200 mm | 20.5 kg |
| DN50 | 300 mm | 315 mm | 180 mm | 135 mm | 102 mm | 26 mm | 22 mm | 22 mm | 200 mm | 25 kg |
| DN65 | 340 mm | 420 mm | 205 mm | 160 mm | 122 mm | 26 mm | 22 mm | 38 mm | 315 mm | 40 kg |
| DN80 | 380 mm | 485 mm | 215 mm | 170 mm | 138 mm | 28 mm | 22 mm | 59 mm | 315 mm | 55 kg |
| DN100 | 430 mm | 550 mm | 250 mm | 200 mm | 162 mm | 30 mm | 26 mm | 68 mm | 400 mm | 85 kg |
| DN125 | 500 mm | 625 mm | 295 mm | 240 mm | 188 mm | 34 mm | 30 mm | 68 mm | 400 mm | 125 kg |
| DN150 | 550 mm | 630 mm | 345 mm | 280 mm | 218 mm | 36 mm | 33 mm | 79 mm | 500 mm | 150 kg |
| DN200 | 650 mm | 860 mm | 415 mm | 345 mm | 285 mm | 42 mm | 36 mm | 128 mm | 500 mm | 260 kg |
| DN250 | 775 mm | 900 mm | 470 mm | 400 mm | 345 mm | 46 mm | 36 mm | 180 mm | 630 mm | 375 kg |
Actuation options
Features
- Straight-type body configuration
- Cast carbon steel body and bonnet
- X20Cr13 martensitic stainless steel disc and stem
- Graphite packing
- Flanged ends to EN 1092-2/B
- Available up to DN600 on request
- Alloy steel material variants available for special pressure and temperature conditions
Description
Straight-type cast steel globe valve designed to DIN 3356, with flanged ends to EN 1092-2/B. Available in nominal diameters DN15 to DN250, rated to PN64. Body material is GS-C 25 (GP240GH+N) with X20Cr13 disc and stem, and graphite packing.
