3 way female thread ball valve
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- 1/4"-4"
- Pressure Class
- 150 WOG/1000 WOG
- Standards
- BSPT, BSPP, ISO9001, ISO mounting, ENCE
- End connection
- Female thread
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- ball
- seat
- stem
- ball seat
- body gasket
- cap
- gland nut
- handle
- handle cover
- locking device
- nut
- spring washer
- stem packing
- thrust washer
Operating media
Actuation options
Approvals
Features
- T-port or L-port flow path design
- Quarter-turn operation (90ยฐ rotation from full open to full close)
- ISO mounting pad included
- Locking device included
- 100% factory test prior to dispatch
- Low operating torque
- Visual status indication via handle orientation
- 3-way ball valve with T-port or L-port configuration
- Screwed (BSP/NPT) end connections on all three ports
- Blue lever handle with lockable position plate
- ISO 5211 direct-mount actuator pad visible on top (image index 5 and 10)
- Open/close direction arrows marked on handle plate (red arrows visible in image index 3)
- Stem retaining nut and anti-blowout stem design visible
Notes
- MOQ: 20 pcs
- Sample available: Yes, sample is free
- Thread can be made to NPT, BSPT, BSPP and so on, which can meet different countries' standard
- Manufacturing standard can be ANSI, ASME, DIN, GB and Europe standard
- The handle can be made to long handle

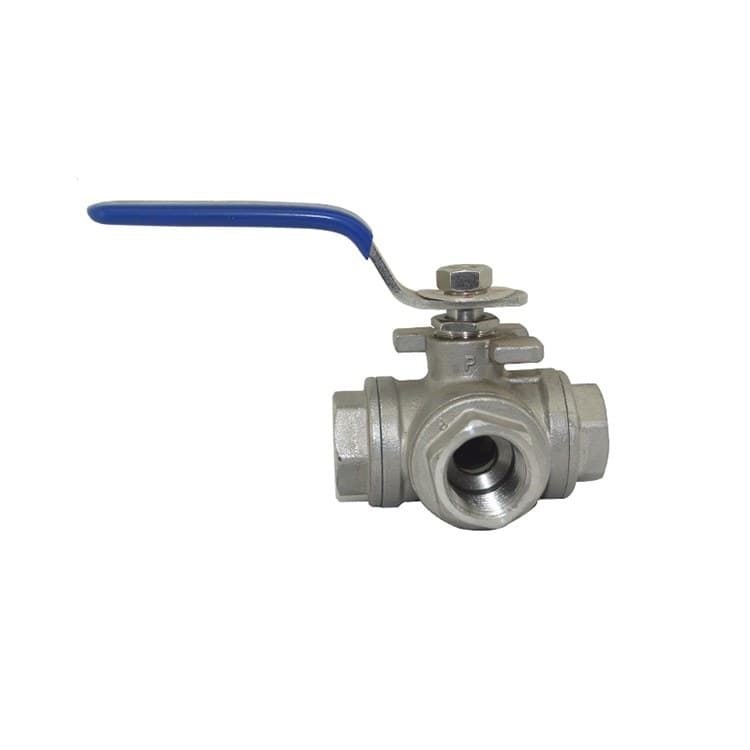

- Diagram: Product photo showing 3-way screwed ball valve from side/front angle with blue lever handle (indices 1, 2, 7, 8)
- Diagram: Product photo showing larger 3-way screwed ball valve with ISO mounting pad top plate and actuator-ready stem, no handle fitted (indices 5, 10)
- Diagram: Product photo showing 3-way screwed ball valve with lockable handle bracket and open/close position markings (indices 3, 4, 9)
Description
3 way female thread ball valve Home Products Piece Ball Valve 3 way female thread ball valve 3 way female thread ball valve Category 3 way female thread ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve. [email protected] Enquiry product description Company information What is the 3 way female thread ball valve ? 3 way female thread ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve. Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for
