KARA โ Anti-Shock Combination Air Release Valve
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50 โ DN300
- Pressure Class
- PN10 / PN16 / PN25
- Standards
- EN 1074-4
- End connection
- Flanged PN16
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- anti shock device
- float
- guide barrel
- sealing arc
- seals
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN25 max (flange DN50-DN300) | -10ยฐC | 25 bar |
| PN25 max (flange DN50-DN300) | 80ยฐC | 25 bar |
Dimensions per size(6 sizes)
| Size | B | D | K | H | C | D_PN16 | D_PN25 | K_PN16 | K_PN25 | C_PN16 | C_PN25 | B_PN10 | B_PN16 | D_PN10 | K_PN10 | C_PN10 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 99 mm | 165 mm | 125 mm | 310 mm | 19 mm | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ |
| DN80 | 132 mm | 200 mm | 160 mm | 382 mm | 19 mm | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ |
| DN100 | 156 mm | โ | โ | 420 mm | 19 mm | 220 mm | 235 mm | 180 mm | 190 mm | โ | โ | โ | โ | โ | โ | โ | โ |
| DN150 | 211 mm | โ | โ | 520 mm | โ | 285 mm | 300 mm | 240 mm | 250 mm | 19 mm | 20 mm | โ | โ | โ | โ | โ | โ |
| DN200 | โ | โ | โ | 630 mm | โ | 360 mm | โ | 310 mm | โ | 22 mm | โ | 266 mm | 274 mm | 340 mm | 295 mm | 20 mm | โ |
| DN300 | 370 mm | 460 mm | 410 mm | 800 mm | 24.5 mm | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ |
Approvals
Features
- The KARA combination air release valve combines large-orifice kinetic air venting during filling with small-orifice continuous air release under operating pressure
- The anti-shock check mechanism prevents water hammer caused by rapid air column collapse
- Suitable for potable water transmission mains and distribution systems where surge protection is required alongside air management
Description
Combination air release with integral anti-shock function. The KARA combination air release valve combines large-orifice kinetic air venting during filling with small-orifice continuous air release under operating pressure. The anti-shock check mechanism prevents water hammer caused by rapid air column collapse. Suitable for potable water transmission mains and distribution systems where surge protection is required alongside air management.
Smart find
Searches our product catalogue using your spec. Drop a PDF โ or multiple PDFs at once โ paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.Related Air Release Valves
Air Release ValveREF 336KAR5 โ Adjustable Anti-Shock Combination Kinetic Air Release Valve
- Model
- โ
- Size
- DN25โDN200
- Pressure
- PN16 / PN25
- Body
- Ductile iron
- Standards
- EN 1074-4
Adds to your quote request โ not a purchase. Refine size, pressure and material before submitting.
Air Release ValveREF 338KARX โ Combination Kinetic Air Release Valve
- Model
- โ
- Size
- DN25 โ DN300
- Pressure
- PN10 / PN16 / PN25
- Body
- Ductile iron
- Standards
- EN 1074-4
Adds to your quote request โ not a purchase. Refine size, pressure and material before submitting.
Air Release ValveREF 339SKAA โ Anti-Shock Sewage Combination Air Release Valve
- Model
- โ
- Size
- DN50 โ DN300
- Pressure
- PN10 / PN16
- Body
- Ductile iron
- Standards
- EN 1074-4
Adds to your quote request โ not a purchase. Refine size, pressure and material before submitting.

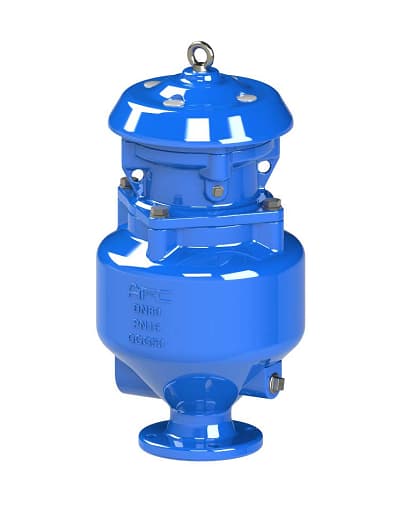

Air Release ValveREF 340SKAR โ Sewage Combination Air Release Valve
