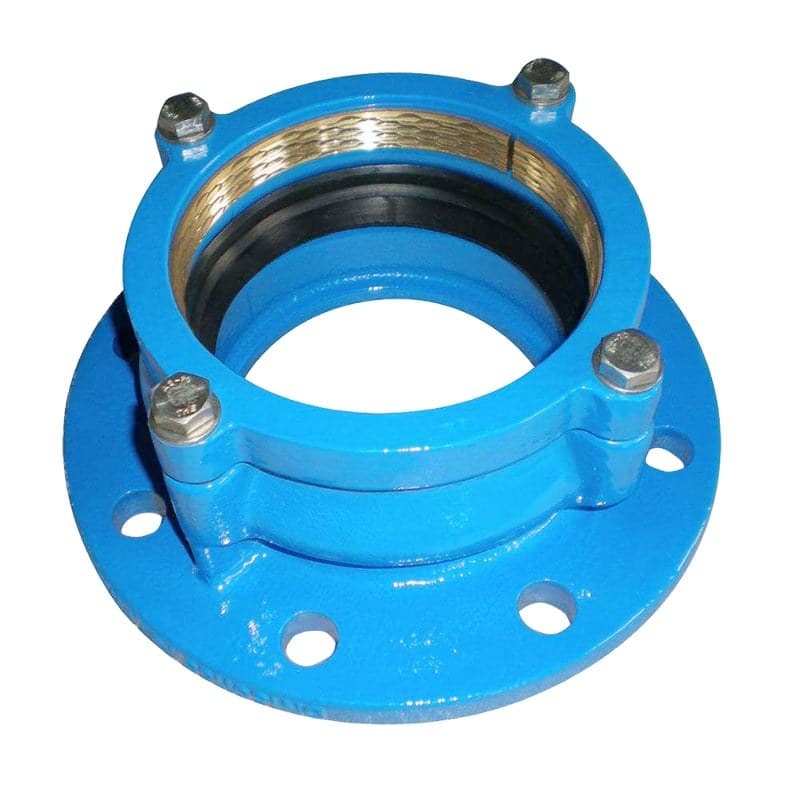

Quick Flange Adaptor For PE/PVC Pipe
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN400
- Pressure Class
- PN10/PN16
- Standards
- ANSI B16.10, BS5152, EN681-1
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- grip ring
- rubber
Dimensions per size(14 sizes)
| Size | Pipe_OD | L | D | Weight |
|---|---|---|---|---|
| DN40-50 | 50 mm | 50 mm | 165 mm | 1.7 kg |
| DN50 | 63 mm | 55 mm | 165 mm | 1.8 kg |
| DN60-65 | 63 mm | 55 mm | 185 mm | 2.4 kg |
| DN60-65 | 75 mm | 58 mm | 185 mm | 2.2 kg |
| DN80 | 90 mm | 60 mm | 200 mm | 2.8 kg |
| DN100 | 110 mm | 68 mm | 220 mm | 4 kg |
| DN125 | 125 mm | 70 mm | 250 mm | 4.2 kg |
| DN125 | 140 mm | 75 mm | 250 mm | 4.1 kg |
| DN150 | 160 mm | 80 mm | 285 mm | 6.5 kg |
| DN200 | 200 mm | 90 mm | 340 mm | 8.5 kg |
| DN200 | 225 mm | 93 mm | 340 mm | 8 kg |
| DN250 | 250 mm | 95 mm | 400 mm | 12.5 kg |
| DN300 | 315 mm | 100 mm | 455 mm | 15 kg |
| DN400 | 400 mm | 120 mm | 580 mm | 25 kg |
Operating media
Approvals
Features
- No welding or threading required for installation
- Wide grip range accommodating various pipe ODs
- Mechanical sealing system providing leak-free connection
- Built-in compression ring locks pipe without damaging pipe wall
- Accommodates pipe expansion and contraction
- Multi flange holes pattern compatible with PN10 and PN16
- Corrosion-resistant coating
- Suitable for PVC pipe and PE pipe variants
- Flanged adaptor with clamping collar and sealing ring
- Sectional drawing shows two key dimensions: L (length/height) and D (flange outer diameter)
- Part 1: Body (flanged adaptor body)
- Part 2: Sealing ring / O-ring
- Part 3: Clamping ring / retaining collar
Notes

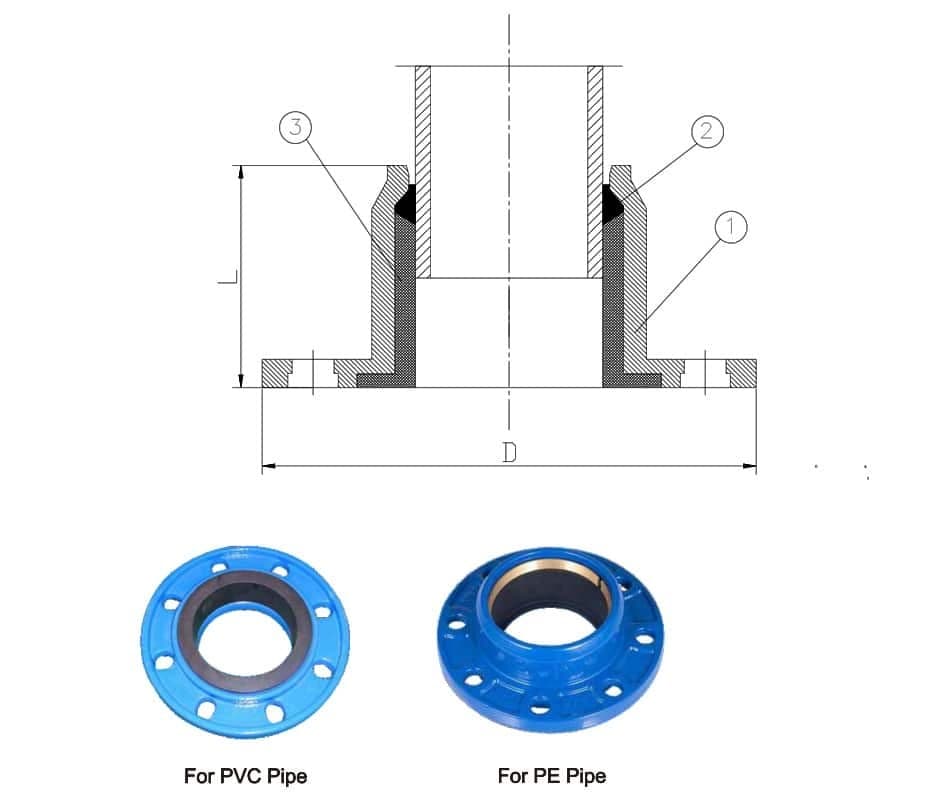

- Diagram: Cross-sectional half-view of a flanged adaptor showing internal assembly with three numbered parts: (1) body, (2) sealing ring, (3) clamping collar; dimensions L (axial length) and D (flange outer diameter) indicated
- Diagram: Product variant photographs showing two configurations: one for PVC pipe (rubber seal only) and one for PE pipe (with brass/bronze insert)
Description
A mechanical coupling device designed to connect polyethylene (PE) or polyvinyl chloride (PVC) pipes to flanged valves, pumps, or equipment without welding or threading. Features a compression ring and grip ring to secure the pipe and provide a leak-free mechanical seal. Constructed from ductile iron with epoxy or FBE coating for corrosion protection.
