Desulfuration Wafer Butterfly Valve

Name: Desulfuration Wafer Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-257
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: watts · ref: 257

Specifications

Confirmed at quote

Size Range: DN50-DN1200
Pressure Class: PN10/PN16
Standards: ANSI B16.10, BS5152, API598
End connection: Wafer type
Operating temperature: -10°C to +120°C

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700 DN800 DN900 DN1000 DN1200

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
seat
stem
shaft
bushing
o ring
pin

Operating media

flue gas desulfurisation slurrywastewatercorrosive mediaabrasive slurriesH₂SO₄HClCl₂

Actuation options

manual levermanual gearboxpneumatic actuatorelectric actuator

Approvals

LR (Lloyd's Register)ECM (Ente Certificazione Macchine)ISOEACCEBureau VeritasACS (Attestation de Conformité Sanitaire)WRAS Approved Product

Features

Resilient seat design with bubble-tight seal
Abrasion-resistant disc edge for slurry applications
Compact and lightweight construction
Pressure test conforms to API 598
Can regulate or isolate pipeline flow
Available with special linings, extended shafts, and actuation options
Available in multiple body, disc, and stem material combinations

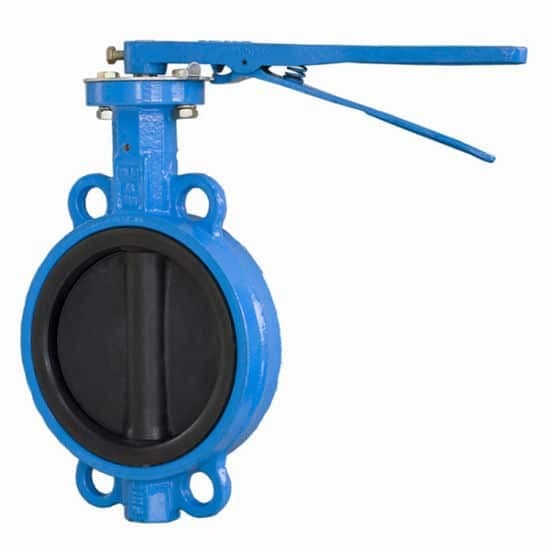

Wafer-style butterfly valve body with lever operator
Sectional diagram shows 7 numbered component parts

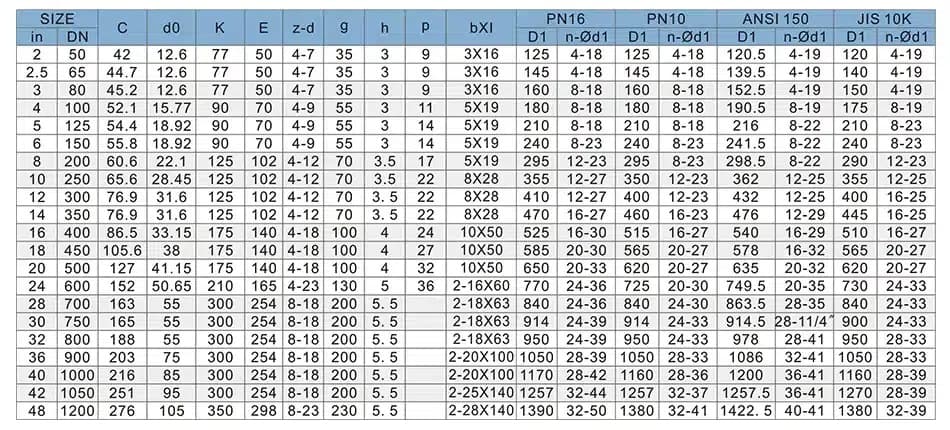

Dimensional parameters: C (face-to-face), d0 (bore/shaft diameter), K (actuator bolt circle), E (actuator bolt circle inner), z-d (flange bolt pattern), g (ISO top flange diameter), h (top flange height), p (bottom shaft diameter), D1 (flange bolt circle diameter), n-Ød1 (number and diameter of flange bolts)
Flange drilling compatible with PN10, PN16, ANSI 150, and JIS 10K standards
Sizes available from DN50 (2 inch) to DN1200 (48 inch)

Notes

Customizable Configurations – Special linings, extended shafts, and actuation options
Our products hold up to 10 international authoritative certification certificates

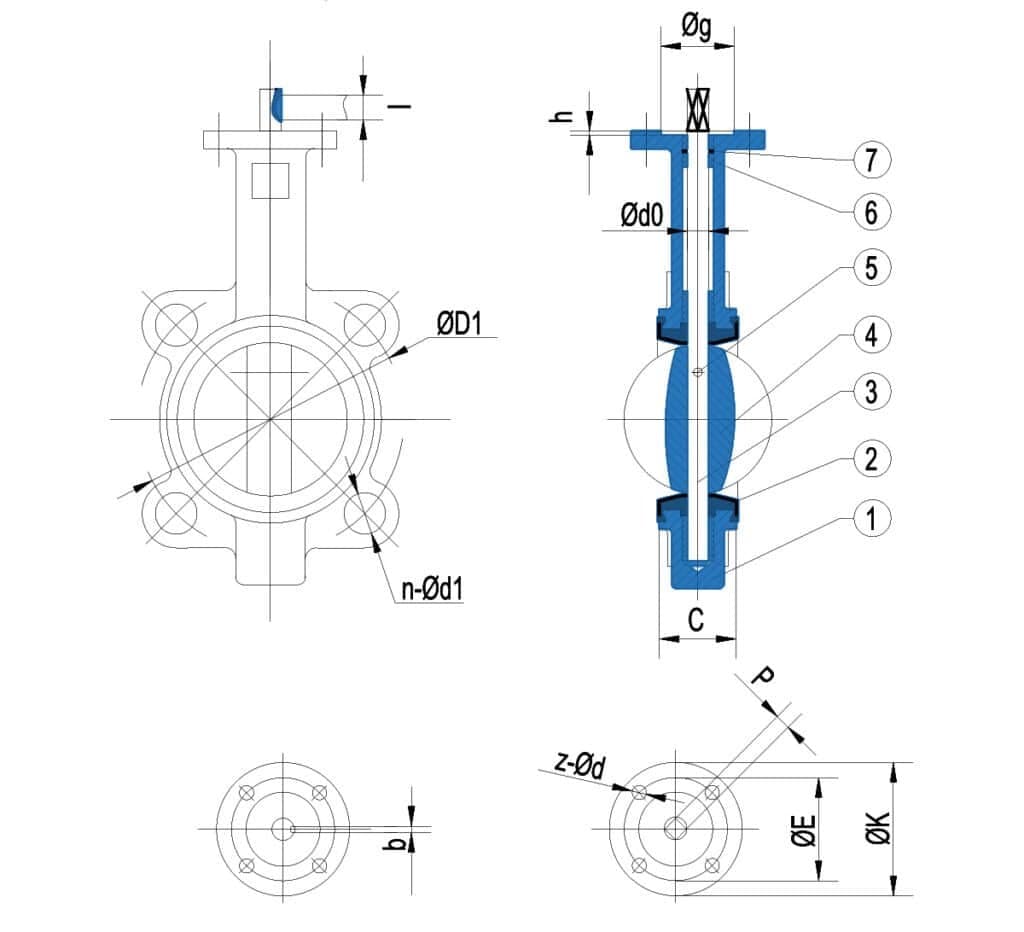

Diagram: Dimensional drawing showing wafer butterfly valve in front elevation and cross-section. Left side shows front face with bolt circle (ØD1, n-Ød1) and overall diameter. Right side shows cross-section with labelled dimensions: C (face-to-face length), d0 (bore diameter), g (top flange PCD), h (top flange height), p (bottom shaft diameter). Bottom views show actuator ISO flange with z-Ød bolt pattern, ØE and ØK diameters, and stem dimension b. Seven component parts are numbered (1–7) on the cross-section.

Description

A wafer-type butterfly valve engineered for flue gas desulfurisation (FGD) systems, wastewater treatment, and corrosive media handling. Constructed with a resilient seat design to achieve bubble-tight shut-off and flow control in abrasive slurry, acidic, and elevated-temperature service conditions. Available in a range of body, disc, and stem materials to suit varying corrosion and abrasion requirements.
