Angle Type Globe Valve (Marine)

Name: Angle Type Globe Valve (Marine)
Brand: Euro Flow Control
SKU: EFC-200
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 200

Specifications

Confirmed at quote

Size Range: DN15-DN600
Pressure Class: PN10/PN40
Standards: DIN 3356/2, DIN EN 558-1, DIN 2533
End connection: DIN 2533 (Flange)
Face-to-face: DIN 3356/2-F1 (Straight) / DIN 3356/2-F32 (Angle)

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
seat
stem
packing
gasket
handwheel
other.disc nut
other.gland
other.stud nut
other.t stud nut

Dimensions per size(14 sizes)

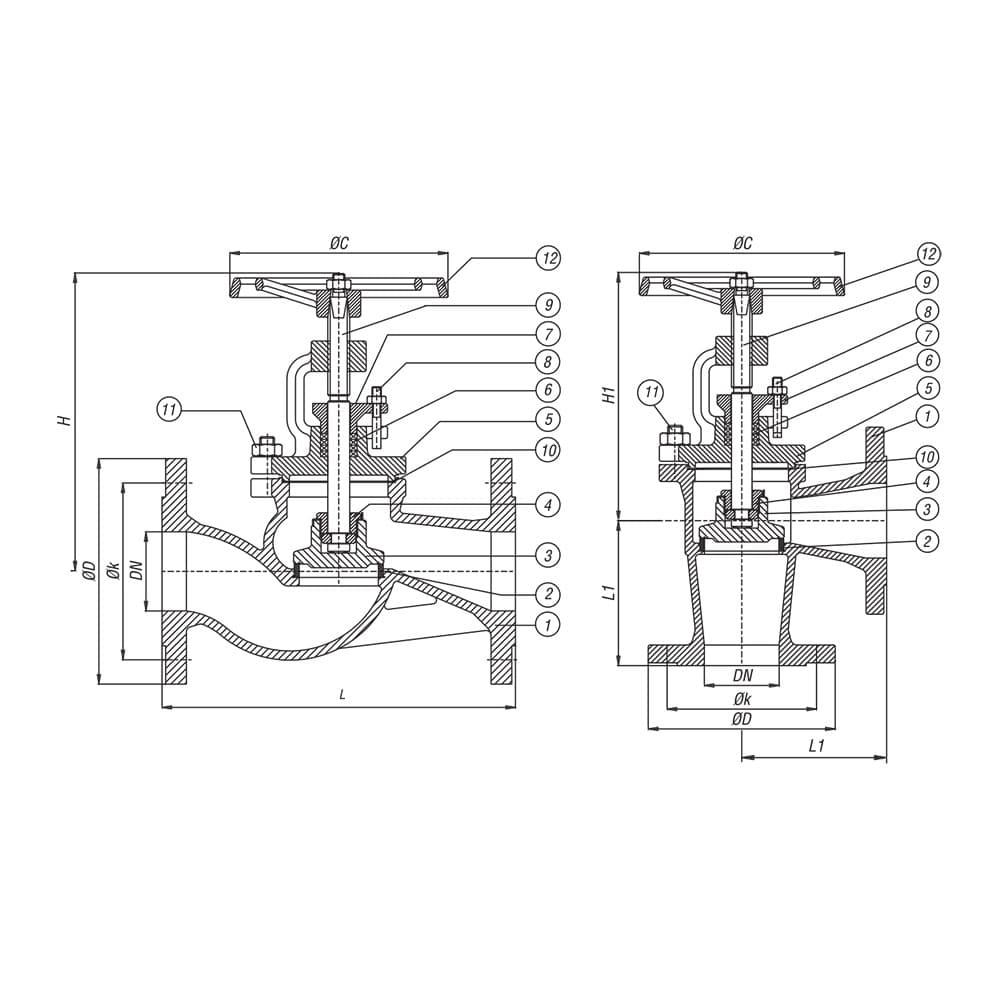

Size	L	L1	H	H1	Strok	OC	OD_PN16	Ok_PN16	OD_PN40	Ok_PN40	Weight
DN15	130 mm	90 mm	185 mm	155 mm	7 mm	120 mm	95 mm	65 mm	95 mm	65 mm	3.6 kg
DN20	150 mm	95 mm	185 mm	155 mm	7 mm	120 mm	105 mm	75 mm	105 mm	75 mm	4.25 kg
DN25	160 mm	100 mm	195 mm	170 mm	9 mm	140 mm	115 mm	85 mm	115 mm	85 mm	5.15 kg
DN32	180 mm	105 mm	205 mm	175 mm	11 mm	140 mm	140 mm	100 mm	140 mm	100 mm	6.75 kg
DN40	200 mm	115 mm	230 mm	195 mm	15 mm	160 mm	150 mm	110 mm	150 mm	110 mm	9.6 kg
DN50	230 mm	125 mm	240 mm	205 mm	18 mm	160 mm	165 mm	125 mm	165 mm	125 mm	12 kg
DN65	290 mm	145 mm	275 mm	225 mm	23 mm	180 mm	185 mm	145 mm	185 mm	145 mm	16.4 kg
DN80	310 mm	155 mm	290 mm	250 mm	28 mm	200 mm	200 mm	160 mm	200 mm	160 mm	23.2 kg
DN100	350 mm	175 mm	350 mm	305 mm	35 mm	225 mm	220 mm	180 mm	235 mm	190 mm	33 kg
DN125	400 mm	200 mm	410 mm	315 mm	43 mm	250 mm	250 mm	210 mm	270 mm	220 mm	55 kg
DN150	480 mm	225 mm	430 mm	380 mm	50 mm	300 mm	285 mm	240 mm	300 mm	250 mm	87.5 kg
DN200	600 mm	275 mm	580 mm	425 mm	68 mm	400 mm	340 mm	295 mm	375 mm	320 mm	136 kg
DN250	730 mm	325 mm	710 mm	470 mm	80 mm	520 mm	405 mm	355 mm	450 mm	385 mm	212 kg
DN300	850 mm	375 mm	780 mm	675 mm	100 mm	520 mm	460 mm	410 mm	515 mm	450 mm	300 kg

Actuation options

manual handwheel

Features

Available in straight (düz) and angle (açılı) body configurations
Totally stainless steel or bronze discs optional in 3" and larger sizes
100% graphite packing
Multiple body material options: cast iron, ductile iron, carbon steel, bronze, stainless steel, duplex stainless steel
Flanged end connections per DIN 2533

Description

Angle type globe valve with flanged end connections per DIN 2533, available in straight (düz) and angle (açılı) body configurations. Pressure rated from PN10 to PN40 across a size range of DN15 to DN300 (table data). Suitable for multiple body material options including bronze, cast iron, and stainless steel.
