Pinch Valve
Pinch Valve
Model: VPVV-10
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN300
- Pressure Class
- PN10
- Standards
- DIN 3202/2-F5/F15, DIN EN 1092-1-2
- End connection
- Flange (DIN EN 1092-1-2)
- Face-to-face
- DIN 3202/2-F5/F15
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- handwheel
- other.bolt nut
- other.sleeve
- other.top body
- other.upper body

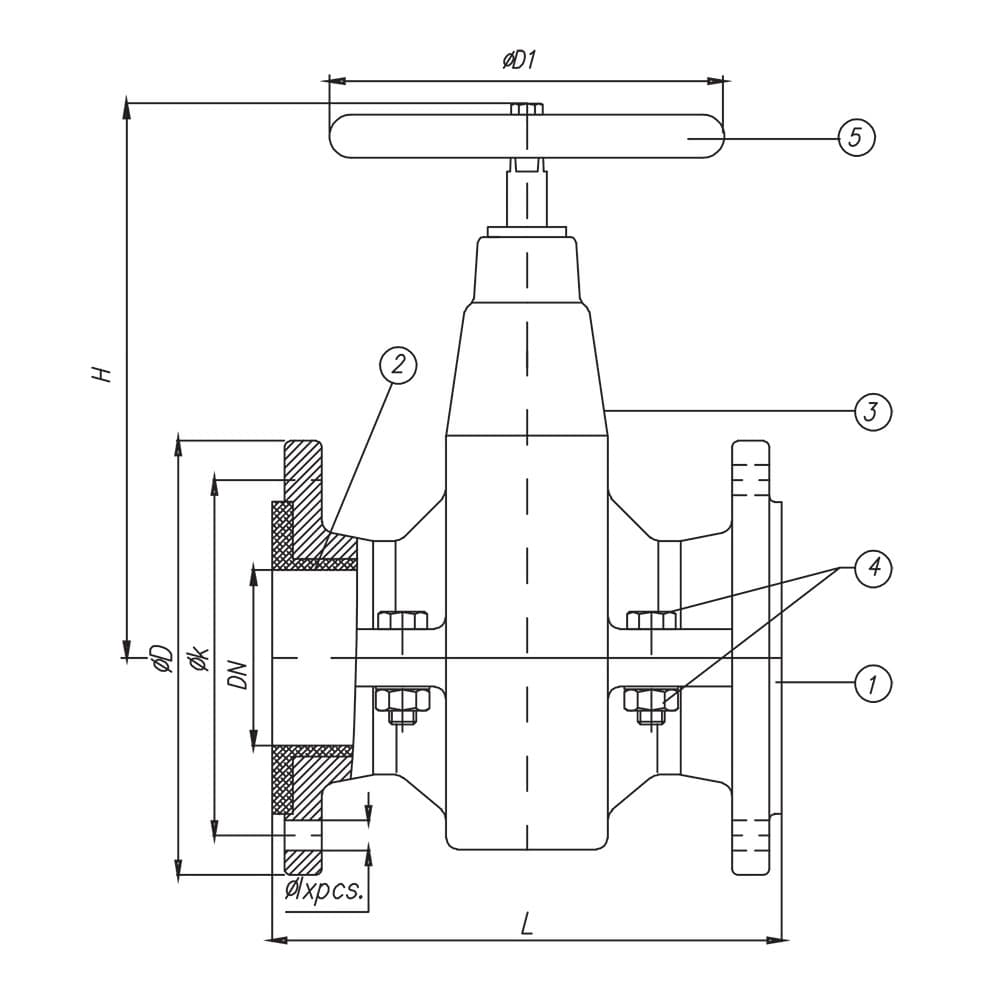

Dimensions per size(10 sizes)
| Size | L | H | D1 | D | k | b | Ixpcs | Weight |
|---|---|---|---|---|---|---|---|---|
| DN40 | 165 mm | 100 mm | 160 mm | 150 mm | 110 mm | 18 mm | 18x4 | 5 kg |
| DN50 | 178 mm | 110 mm | 160 mm | 165 mm | 125 mm | 20 mm | 18x4 | 8 kg |
| DN65 | 190 mm | 140 mm | 160 mm | 185 mm | 145 mm | 20 mm | 18x4 | 15 kg |
| DN80 | 203 mm | 160 mm | 160 mm | 200 mm | 160 mm | 22 mm | 18x8 | 20 kg |
| DN100 | 300 mm | 200 mm | 200 mm | 220 mm | 180 mm | 24 mm | 18x8 | 25 kg |
| DN125 | 325 mm | 250 mm | 200 mm | 250 mm | 210 mm | 24 mm | 18x8 | 30 kg |
| DN150 | 350 mm | 300 mm | 250 mm | 285 mm | 240 mm | 26 mm | 22x8 | 40 kg |
| DN200 | 400 mm | 400 mm | 250 mm | 340 mm | 295 mm | 26 mm | 22x8 | 50 kg |
| DN250 | 450 mm | 500 mm | 315 mm | 395 mm | 350 mm | 28 mm | 22x12 | 105 kg |
| DN300 | 500 mm | 600 mm | 315 mm | 445 mm | 400 mm | 28 mm | 22x12 | 140 kg |
Operating media
slurriesabrasive mediageneral industrial fluids
Actuation options
ManualPneumatic
Features
- Two-part body construction comprising upper and lower body sections
- Replaceable elastomer sleeve as the sole wetted component
- Full bore design with no internal obstructions when fully open
- Available in grey cast iron, ductile cast iron, or cast steel body
- NBR or natural rubber sleeve options
- Manual handwheel or pneumatic actuation options
Description
A flanged pinch valve rated to PN 10, available in nominal diameters DN 40 through DN 300. The valve uses a sleeve (diaphragm) of NBR or NR elastomer to control flow by mechanical compression of the sleeve body. Available with manual handwheel or pneumatic actuation.
