Strainer Basket (Suction Strainer)

Name: Strainer Basket (Suction Strainer)
Brand: Euro Flow Control
SKU: EFC-125
Availability: InStock

Model: VKF-10

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 125

Specifications

Confirmed at quote

Size Range: DN40-DN700
Pressure Class: PN2,5/PN40
Standards: DIN 3247

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700

Available pressure classes

Pressure classes this product is rated to.

PN6 PN10 PN16 PN25 PN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
other.basket

Dimensions per size(16 sizes)

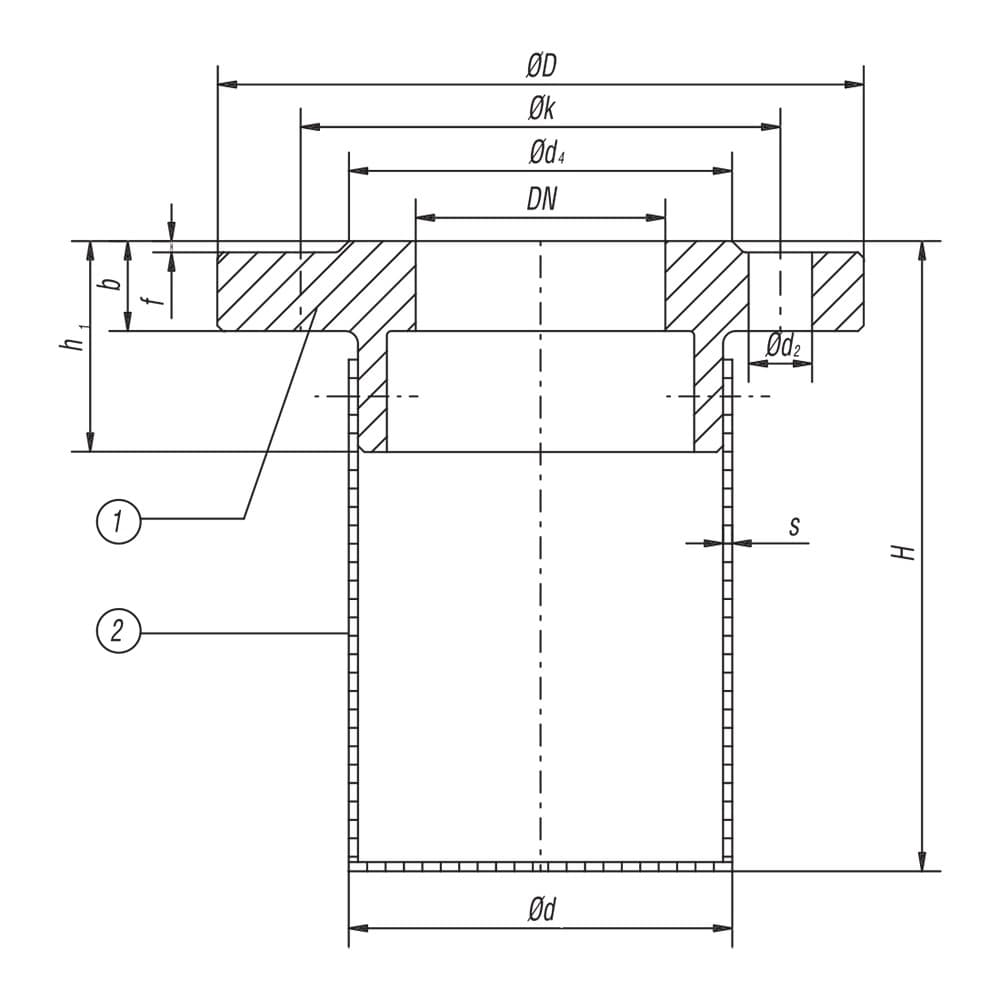

Size	OD	Ok	b	Od1	t	Holes	Od2	BoltDia	Od_filter	S	h1	H	Weight
DN40	150 mm	110 mm	18 mm	84 mm	null mm	4 count	18 mm	null mm	71 mm	1.5 mm	50 mm	130 mm	—
DN50	165 mm	125 mm	18 mm	99 mm	—	4 count	18 mm	16 mm	81 mm	1.5 mm	50 mm	160 mm	—
DN65	185 mm	145 mm	20 mm	118 mm	—	4 count	18 mm	16 mm	101 mm	1.5 mm	50 mm	160 mm	—
DN80	200 mm	160 mm	20 mm	132 mm	—	8 count	18 mm	16 mm	111 mm	1.5 mm	50 mm	180 mm	—
DN100	220 mm	180 mm	22 mm	156 mm	—	8 count	18 mm	16 mm	140 mm	1.5 mm	50 mm	195 mm	—
DN125	250 mm	210 mm	22 mm	184 mm	—	8 count	18 mm	16 mm	161 mm	1.5 mm	50 mm	250 mm	—
DN150	285 mm	240 mm	24 mm	211 mm	2 mm	8 count	22 mm	20 mm	190 mm	1.5 mm	50 mm	285 mm	—
DN200	340 mm	295 mm	24 mm	266 mm	2 mm	12 count	22 mm	20 mm	235 mm	1.5 mm	50 mm	385 mm	—
DN250	395 mm	350 mm	26 mm	319 mm	2 mm	12 count	22 mm	20 mm	295 mm	2 mm	60 mm	460 mm	—
DN300	445 mm	400 mm	26 mm	370 mm	2 mm	12 count	22 mm	20 mm	345 mm	2 mm	60 mm	530 mm	—
DN350	505 mm	460 mm	26 mm	429 mm	—	16 count	26 mm	24 mm	410 mm	2 mm	60 mm	600 mm	—
DN400	565 mm	515 mm	26 mm	480 mm	—	16 count	26 mm	24 mm	454 mm	2 mm	60 mm	715 mm	—
DN450	615 mm	565 mm	28 mm	530 mm	—	20 count	26 mm	24 mm	474 mm	2.5 mm	85 mm	880 mm	—
DN500	670 mm	620 mm	28 mm	582 mm	—	20 count	26 mm	24 mm	554 mm	2.5 mm	85 mm	915 mm	—
DN600	780 mm	725 mm	34 mm	682 mm	—	20 count	29.5 mm	27 mm	654 mm	2.5 mm	85 mm	1030 mm	—
DN700	895 mm	840 mm	34 mm	794 mm	5 mm	24 count	null mm	null mm	774 mm	2.5 mm	95 mm	1215 mm	—

Description

A flanged suction strainer (basket type) designed to DN3247 for use in pipework systems. Available in sizes DN40 to DN700, with pressure ratings PN10-40 for DN40-DN400 and PN2.5 for DN450-DN700. The body is cast iron with a perforated stainless steel or galvanised steel basket insert.
