Foot Valves With Spring
Model: VDKF-10-16
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN600
- Pressure Class
- PN10/PN16
- Standards
- EN 12266, API 598, EN 1092-2/B, ASME B16.5, DIN EN 1092 PN10, DIN EN 1092 PN16, ASA Class 150
- End connection
- Flange Ends EN 1092-2/B - ASME B16.5
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- seat
- stem
- spring
- other.basket
- other.flange
- other.guide
- other.ring

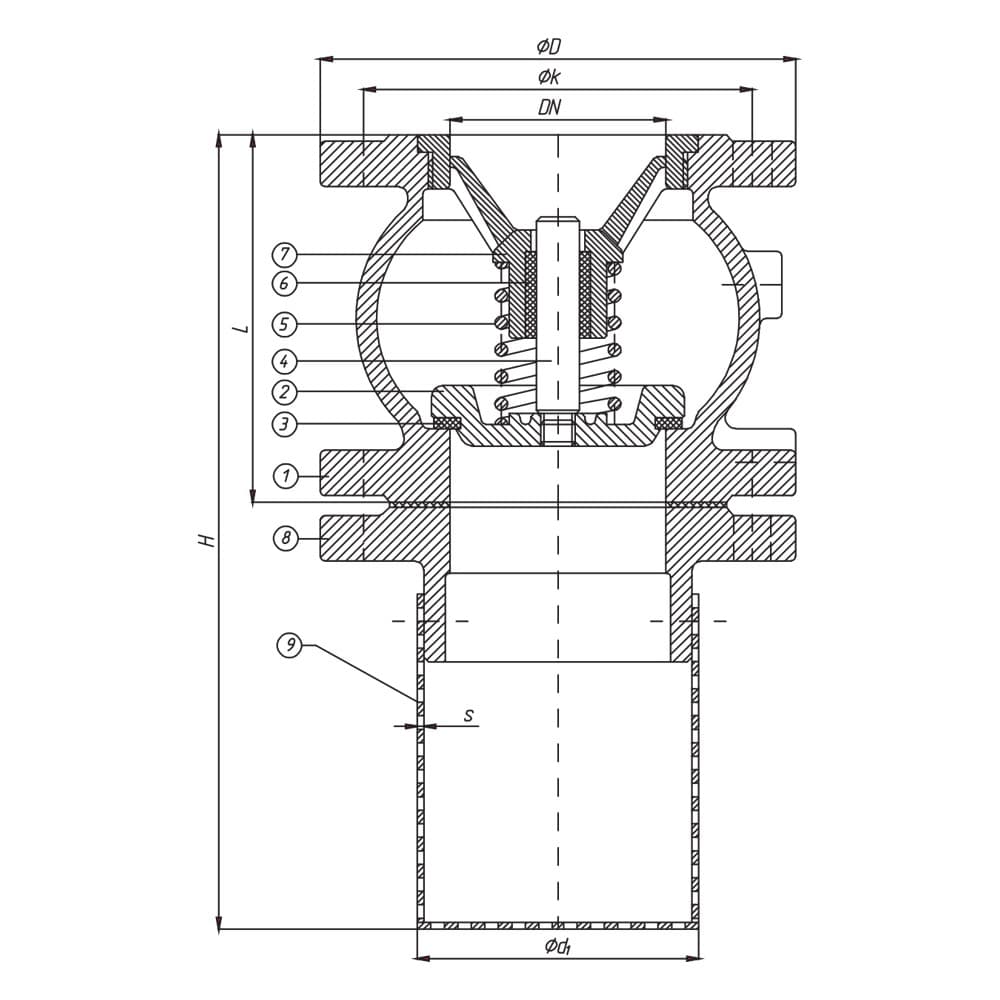

Dimensions per size(14 sizes)
| Size | L | H | Od | S | Weight |
|---|---|---|---|---|---|
| DN40 | 85 mm | 185 mm | 71 mm | 1.5 mm | 6.2 kg |
| DN50 | 100 mm | 200 mm | 81 mm | 1.5 mm | 8.8 kg |
| DN65 | 120 mm | 245 mm | 101 mm | 1.5 mm | 11 kg |
| DN80 | 140 mm | 280 mm | 111 mm | 1.5 mm | 14 kg |
| DN100 | 170 mm | 320 mm | 140 mm | 1.5 mm | 19.5 kg |
| DN125 | 200 mm | 400 mm | 161 mm | 1.5 mm | 30.5 kg |
| DN150 | 230 mm | 450 mm | 190 mm | 1.5 mm | 39.5 kg |
| DN200 | 288 mm | 510 mm | 235 mm | 2 mm | 64.5 kg |
| DN250 | 354 mm | 600 mm | 295 mm | 2 mm | 110 kg |
| DN300 | 395 mm | 650 mm | 345 mm | 2 mm | 156 kg |
| DN350 | 472 mm | 735 mm | 410 mm | 2 mm | 250 kg |
| DN400 | 560 mm | 860 mm | 454 mm | 2 mm | 342 kg |
| DN500 | 670 mm | 1020 mm | 554 mm | 2.5 mm | 590 kg |
| DN600 | 710 mm | 1400 mm | 654 mm | 2.5 mm | 630 kg |
Operating media
Features
- Integral basket strainer at inlet
- Spring-assisted disc closure
- Suitable for use at suction pipe base
- Available in multiple body and disc material combinations
- Flanged ends compatible with EN 1092-2/B and ASME B16.5
Description
Spring-loaded foot valve (strainer type) designed for installation at the base of suction pipes. Available in flanged end connections conforming to EN 1092-2/B and ASME B16.5, with an integral basket strainer. Rated for PN 10-16 / Class 150 across a size range of DN40 to DN600.
