Specifications
Confirmed at quote- Size Range
- DN50–DN600
- Pressure Class
- PN16 / PN25
- Standards
- EN 1074-5
- End connection
- Flanged PN16/PN25
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
- Body
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN10 | 10°C | 10 bar |
| PN16 | 10°C | 16 bar |
| PN25 | 10°C | 25 bar |
| PN10 | 80°C | 10 bar |
| PN16 | 80°C | 16 bar |
| PN25 | 80°C | 25 bar |

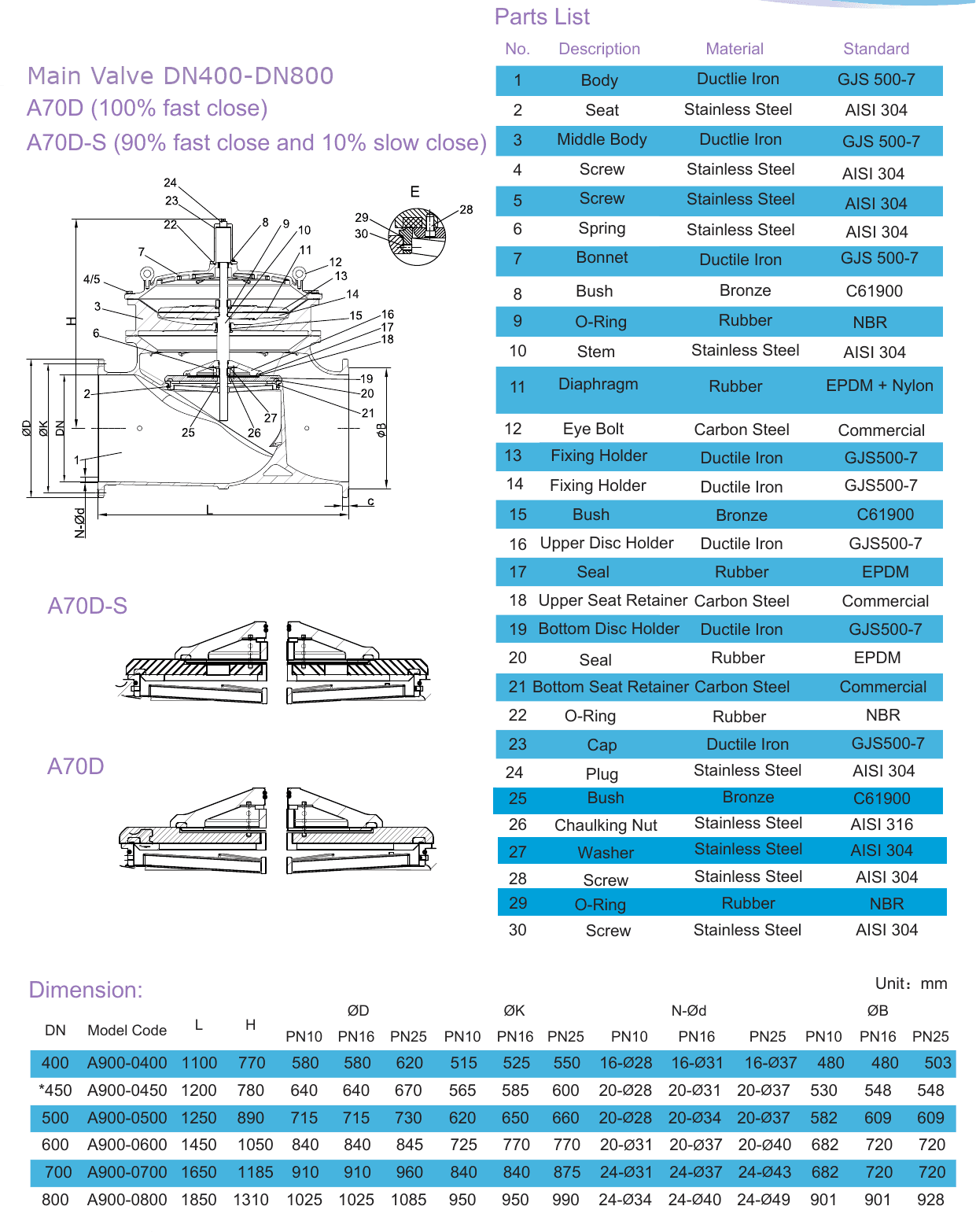

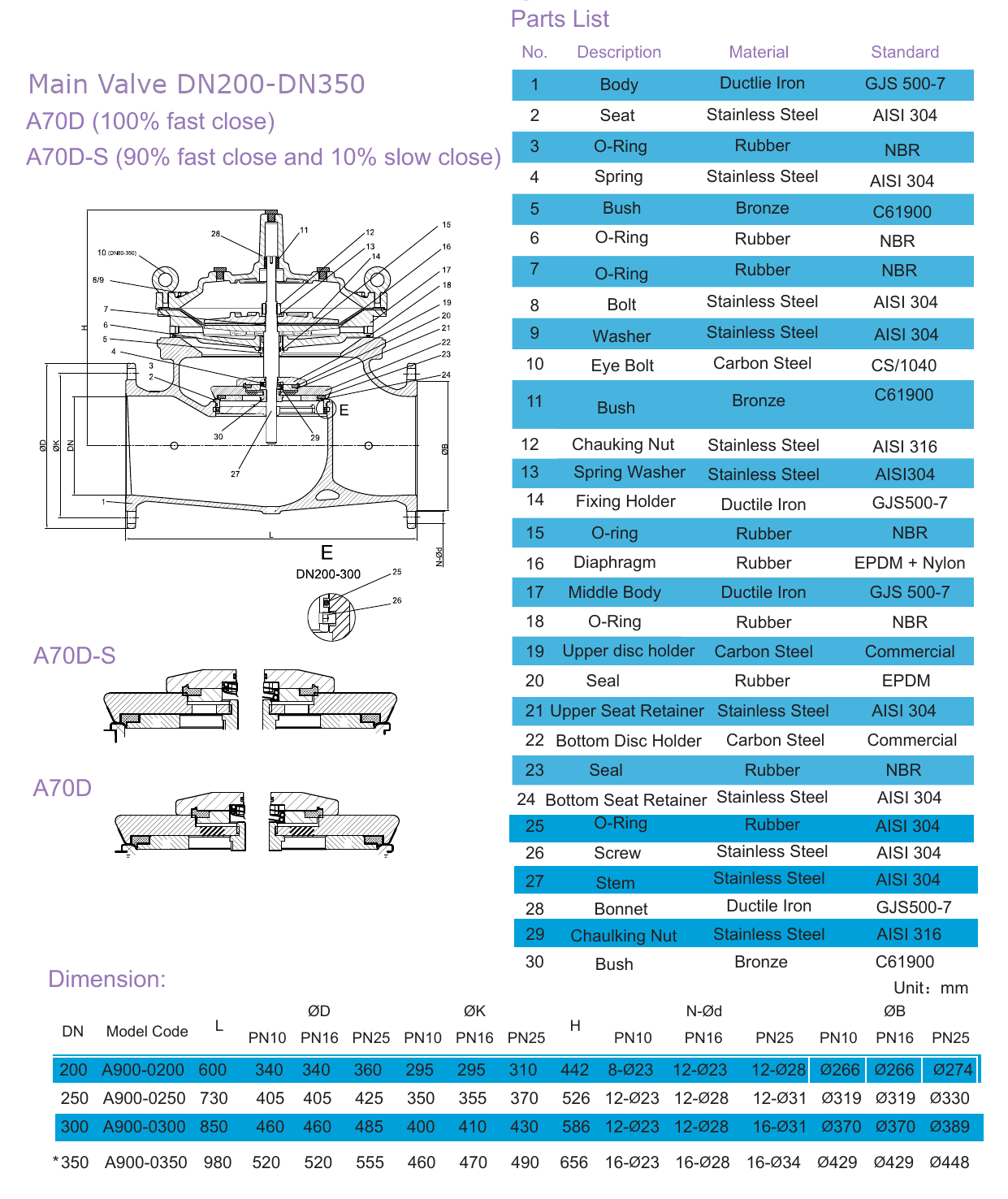

Dimensions per size(16 sizes)

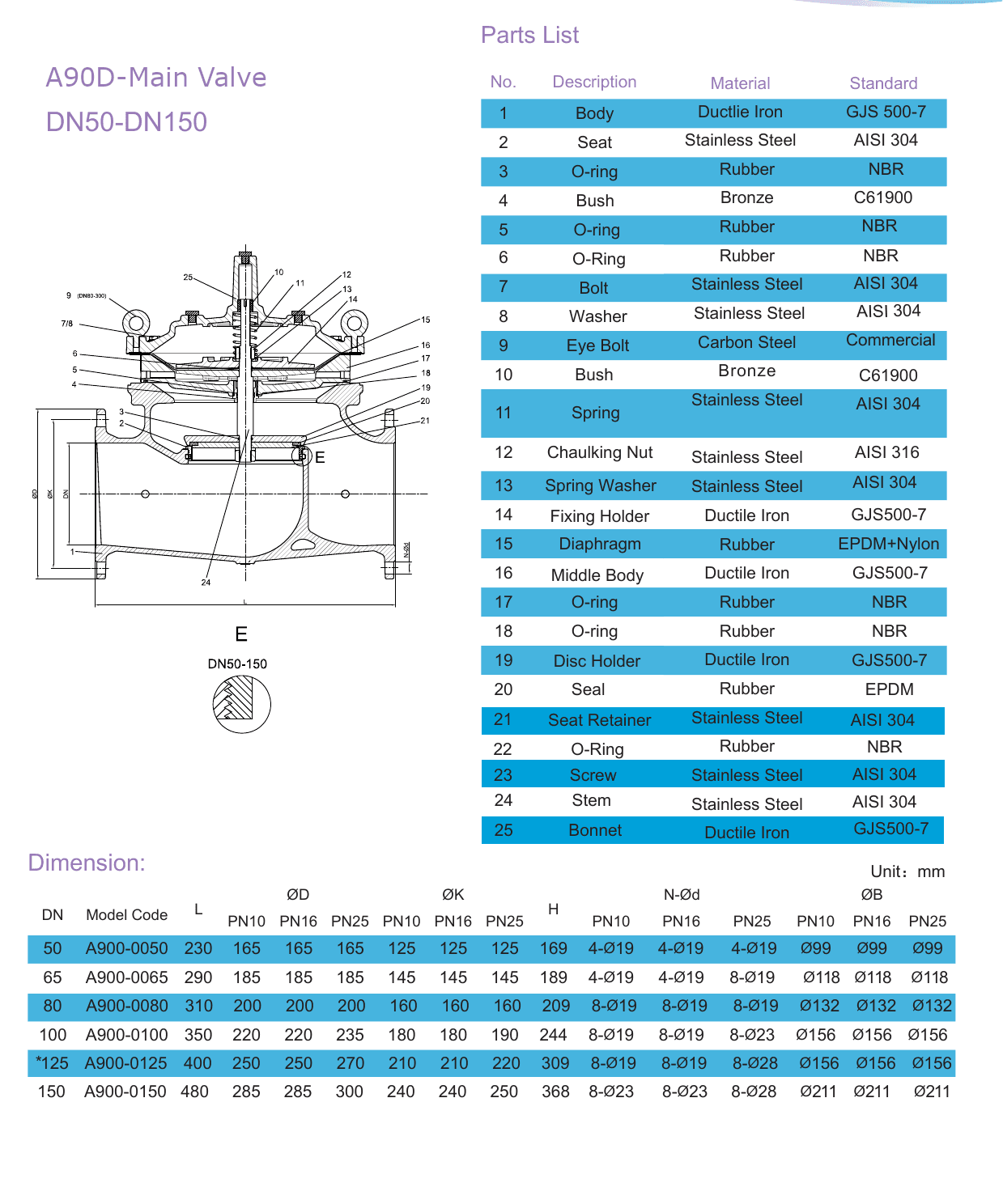

| Size | L | H | OD_PN10 | OD_PN16 | OD_PN25 | OK_PN10 | OK_PN16 | OK_PN25 | OB_PN10 | OB_PN16 | OB_PN25 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 230 mm | 169 mm | 165 mm | 165 mm | 165 mm | 125 mm | 125 mm | 125 mm | 99 mm | 99 mm | 99 mm | — |
| DN65 | 290 mm | 189 mm | 185 mm | 185 mm | 185 mm | 145 mm | 145 mm | 145 mm | 118 mm | 118 mm | 118 mm | — |
| DN80 | 310 mm | 209 mm | 200 mm | 200 mm | 200 mm | 160 mm | 160 mm | 160 mm | 132 mm | 132 mm | 132 mm | — |
| DN100 | 350 mm | 244 mm | 220 mm | 220 mm | 235 mm | 180 mm | 180 mm | 190 mm | 156 mm | 156 mm | 156 mm | — |
| DN125 | 400 mm | 309 mm | 250 mm | 250 mm | 270 mm | 210 mm | 210 mm | 220 mm | 156 mm | 156 mm | 156 mm | — |
| DN150 | 480 mm | 368 mm | 285 mm | 285 mm | 300 mm | 240 mm | 240 mm | 250 mm | 211 mm | 211 mm | 211 mm | — |
| DN200 | 600 mm | 442 mm | 340 mm | 340 mm | 360 mm | 295 mm | 295 mm | 310 mm | 266 mm | 266 mm | 274 mm | — |
| DN250 | 730 mm | 526 mm | 405 mm | 405 mm | 425 mm | 350 mm | 355 mm | 370 mm | 319 mm | 319 mm | 330 mm | — |
| DN300 | 850 mm | 586 mm | 460 mm | 460 mm | 485 mm | 400 mm | 410 mm | 430 mm | 370 mm | 370 mm | 389 mm | — |
| DN350 | 980 mm | 656 mm | 520 mm | 520 mm | 555 mm | 460 mm | 470 mm | 490 mm | 429 mm | 429 mm | 448 mm | — |
| DN400 | 1100 mm | 770 mm | 580 mm | 580 mm | 620 mm | 515 mm | 525 mm | 550 mm | 480 mm | 480 mm | 503 mm | — |
| DN450 | 1200 mm | 780 mm | 640 mm | 640 mm | 670 mm | 565 mm | 585 mm | 600 mm | 530 mm | 548 mm | 548 mm | — |
| DN500 | 1250 mm | 890 mm | 715 mm | 715 mm | 730 mm | 620 mm | 650 mm | 660 mm | 582 mm | 609 mm | 609 mm | — |
| DN600 | 1450 mm | 1050 mm | 840 mm | 840 mm | 845 mm | 725 mm | 770 mm | 770 mm | 682 mm | 720 mm | 720 mm | — |
| DN700 | 1650 mm | 1185 mm | 910 mm | 910 mm | 960 mm | 840 mm | 840 mm | 875 mm | 682 mm | 720 mm | 720 mm | — |
| DN800 | 1850 mm | 1310 mm | 1025 mm | 1025 mm | 1085 mm | 950 mm | 950 mm | 990 mm | 901 mm | 901 mm | 928 mm | — |
Approvals
Features

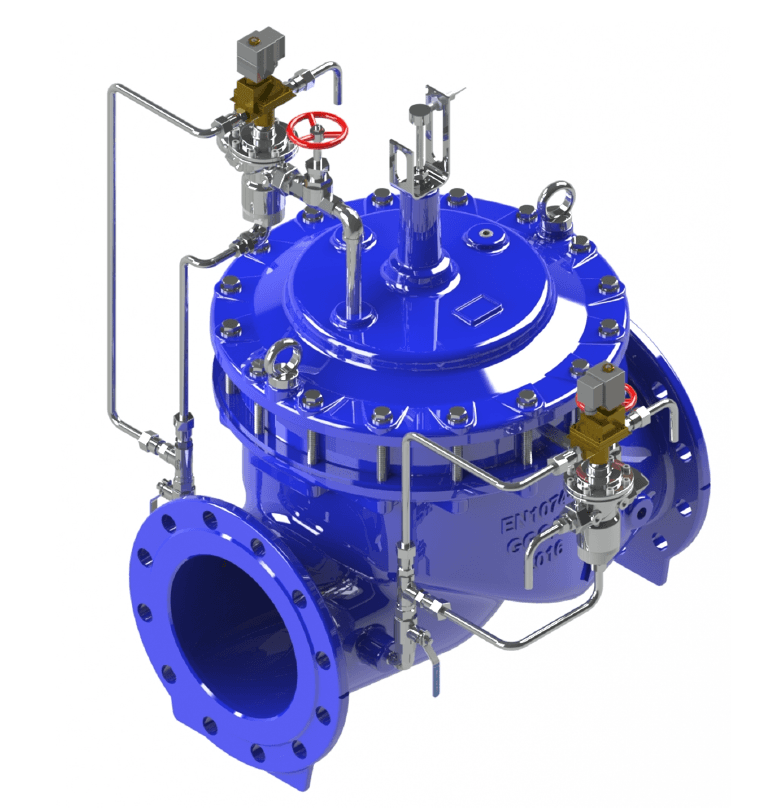

- The A76D double-chamber pump control valve provides active surge protection on both pump start and pump stop
- On pump start, the valve opens in a controlled two-stage sequence to prevent startup surge
- On pump stop, it closes slowly to arrest the decelerating water column before the pump reverses
- The dual-chamber design provides greater control authority and damping than single-chamber valves

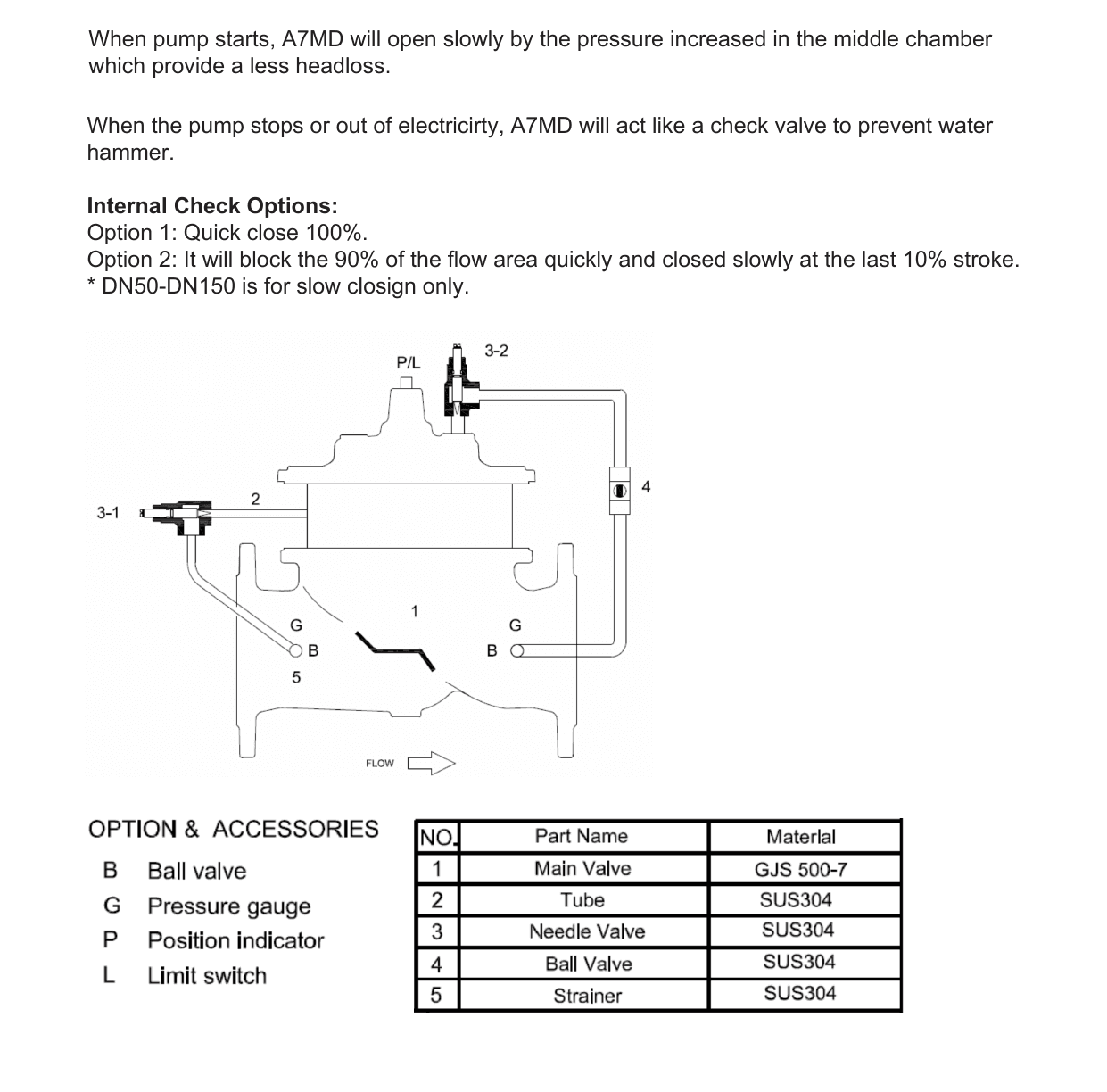

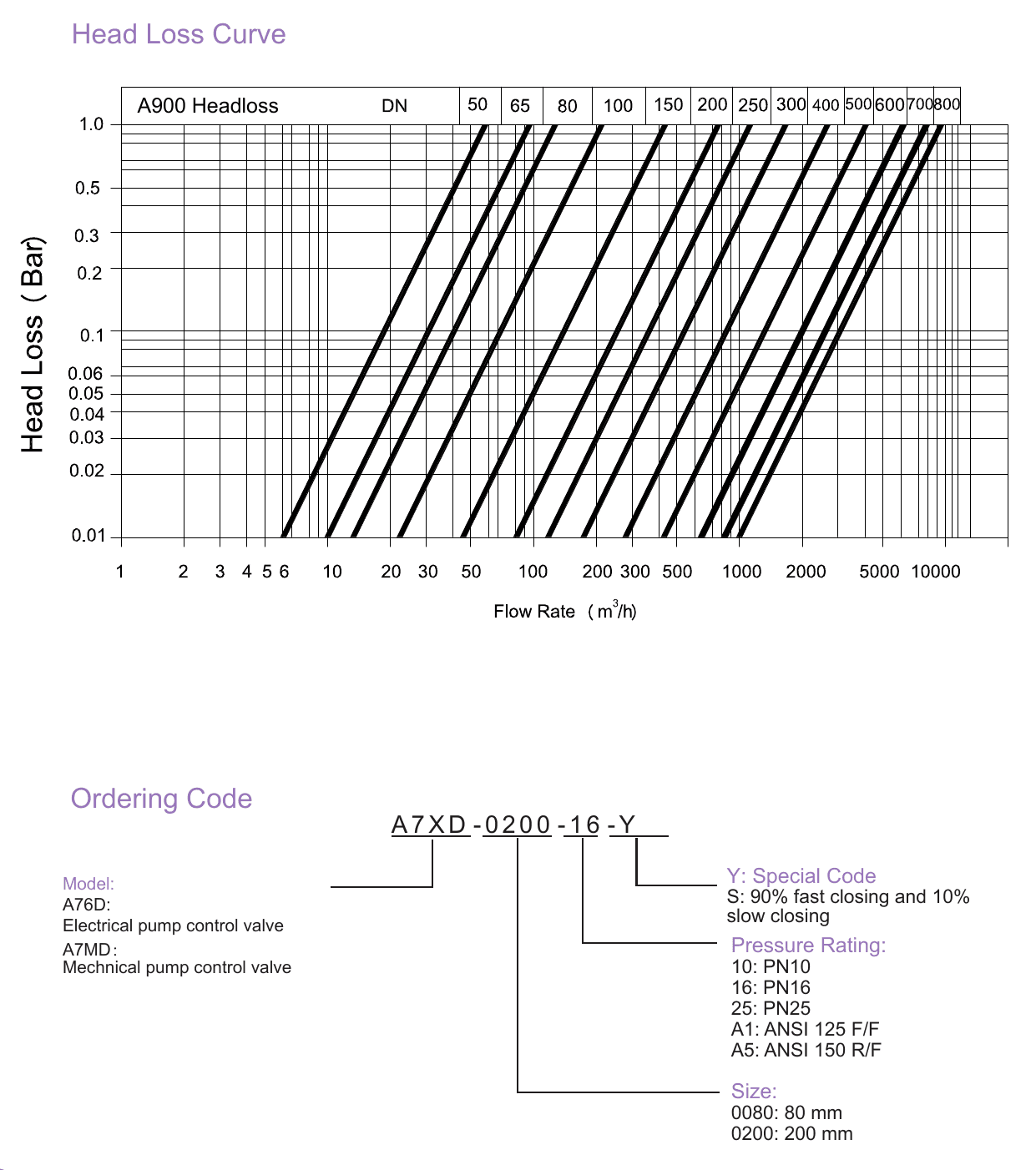

Description
The A76D is a pump control configuration of the A900 main valve body with a double-chamber actuator. The dual-chamber design provides independent hydraulic control of opening and closing rates, allowing the valve to open slowly on pump start to limit inrush and close in a controlled deceleration profile on pump stop to prevent surge. Needle valves in each chamber circuit allow both rates to be set independently in the field to match the specific pump and pipeline hydraulics.
