KARX – Combination Kinetic Air Release Valve
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN25 – DN300
- Pressure Class
- PN10 / PN16 / PN25
- Standards
- EN 1074-4
- End connection
- Flanged PN16
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.

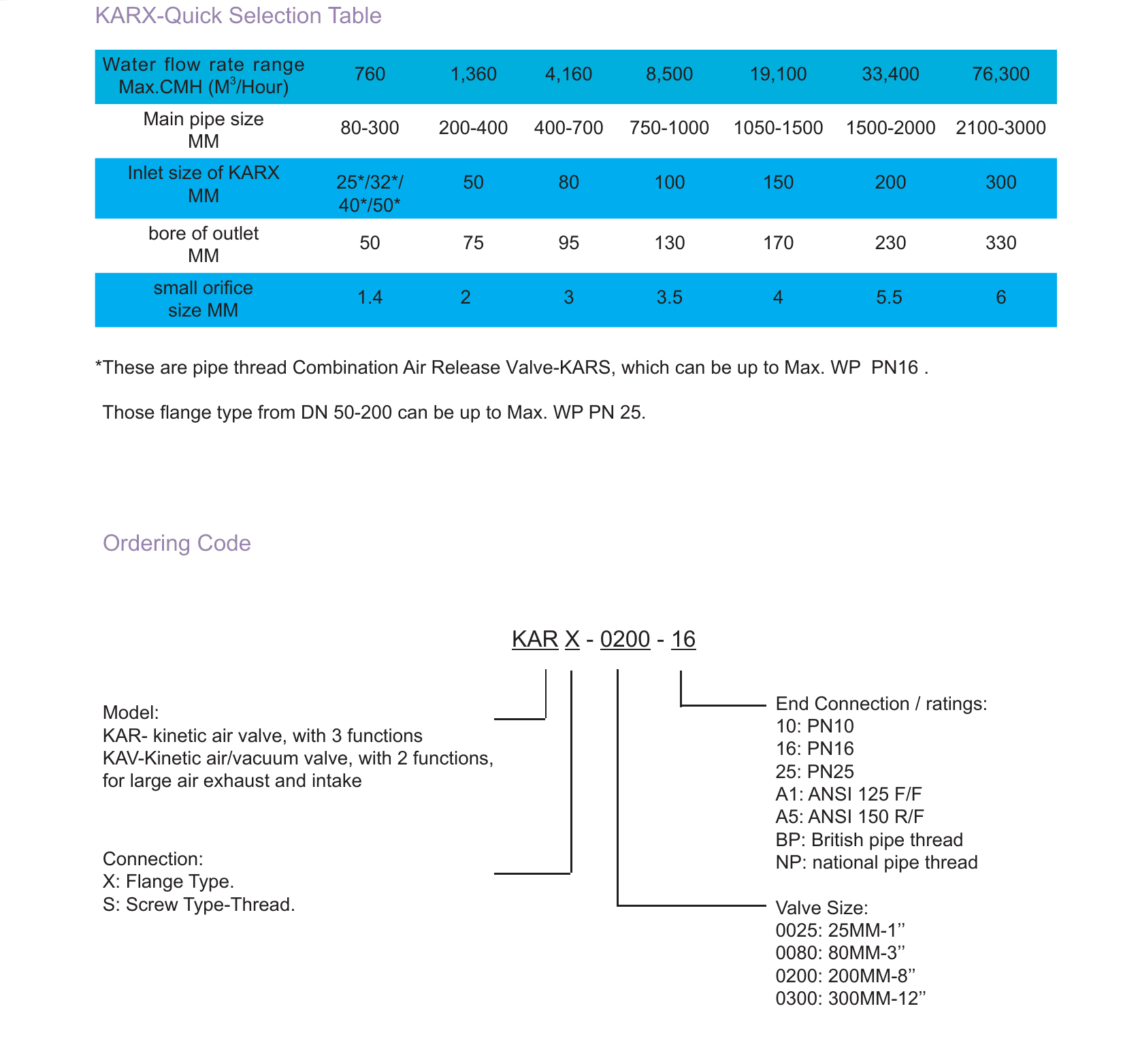

Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

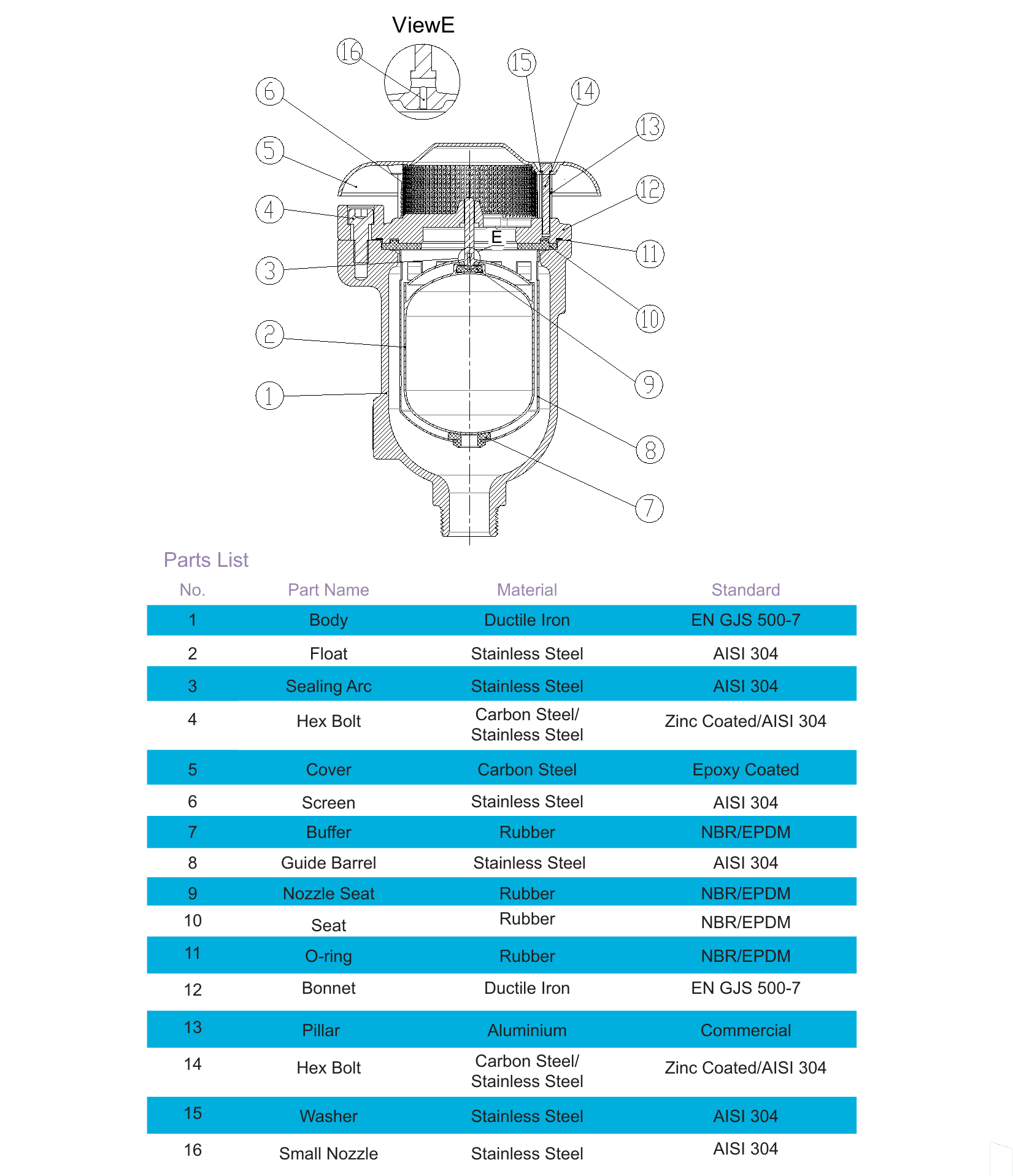

Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- float
- seals
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN16 (threaded/screw type) | -10°C | 16 bar |
| PN16 (threaded/screw type) | 80°C | 16 bar |
| PN25 (flange type DN50-DN200) | -10°C | 25 bar |
| PN25 (flange type DN50-DN200) | 80°C | 25 bar |

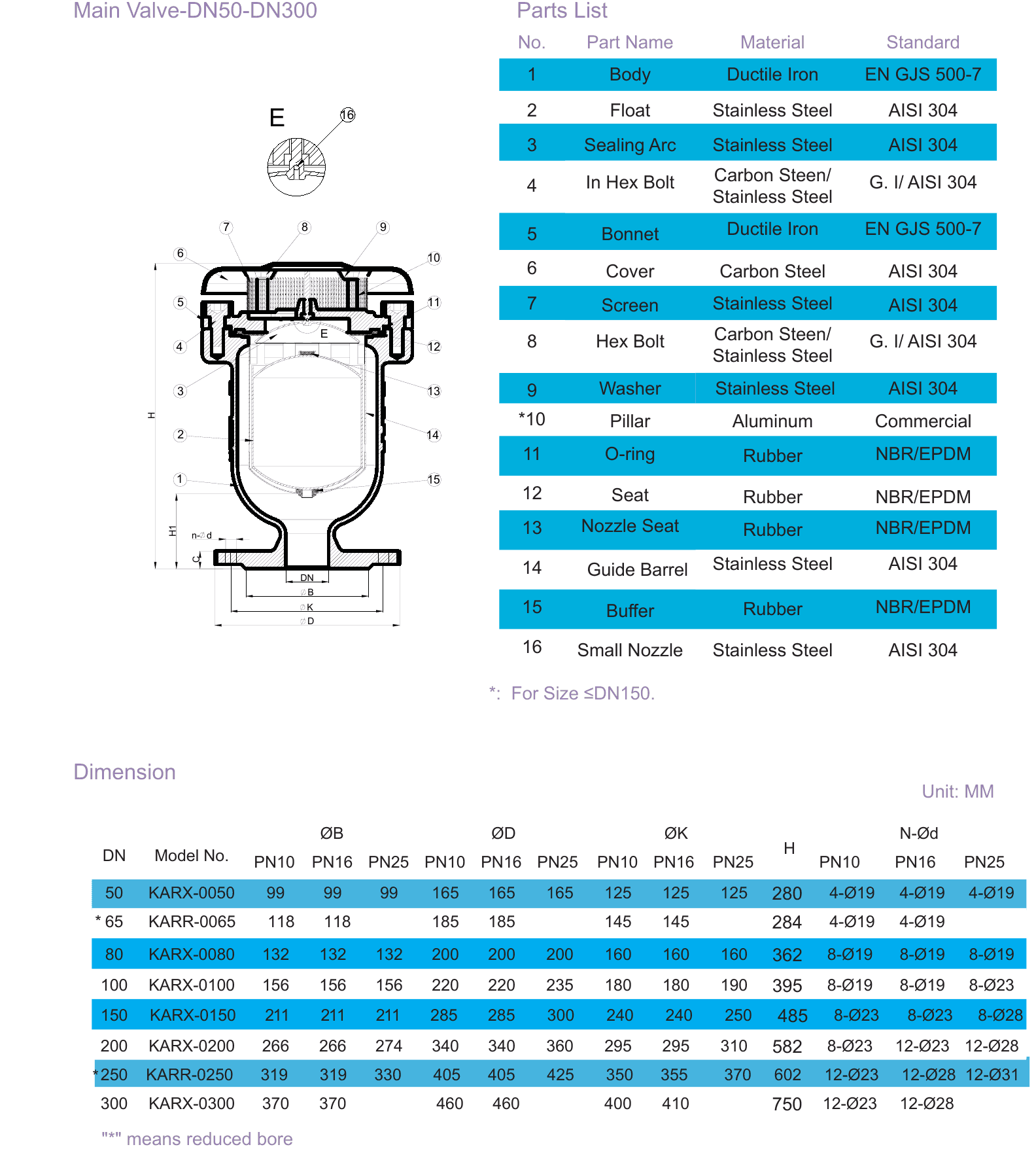

Dimensions per size(12 sizes)
| Size | ØA | C | H | ØB_PN10 | ØB_PN16 | ØB_PN25 | ØD_PN10 | ØD_PN16 | ØD_PN25 | ØK_PN10 | ØK_PN16 | ØK_PN25 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

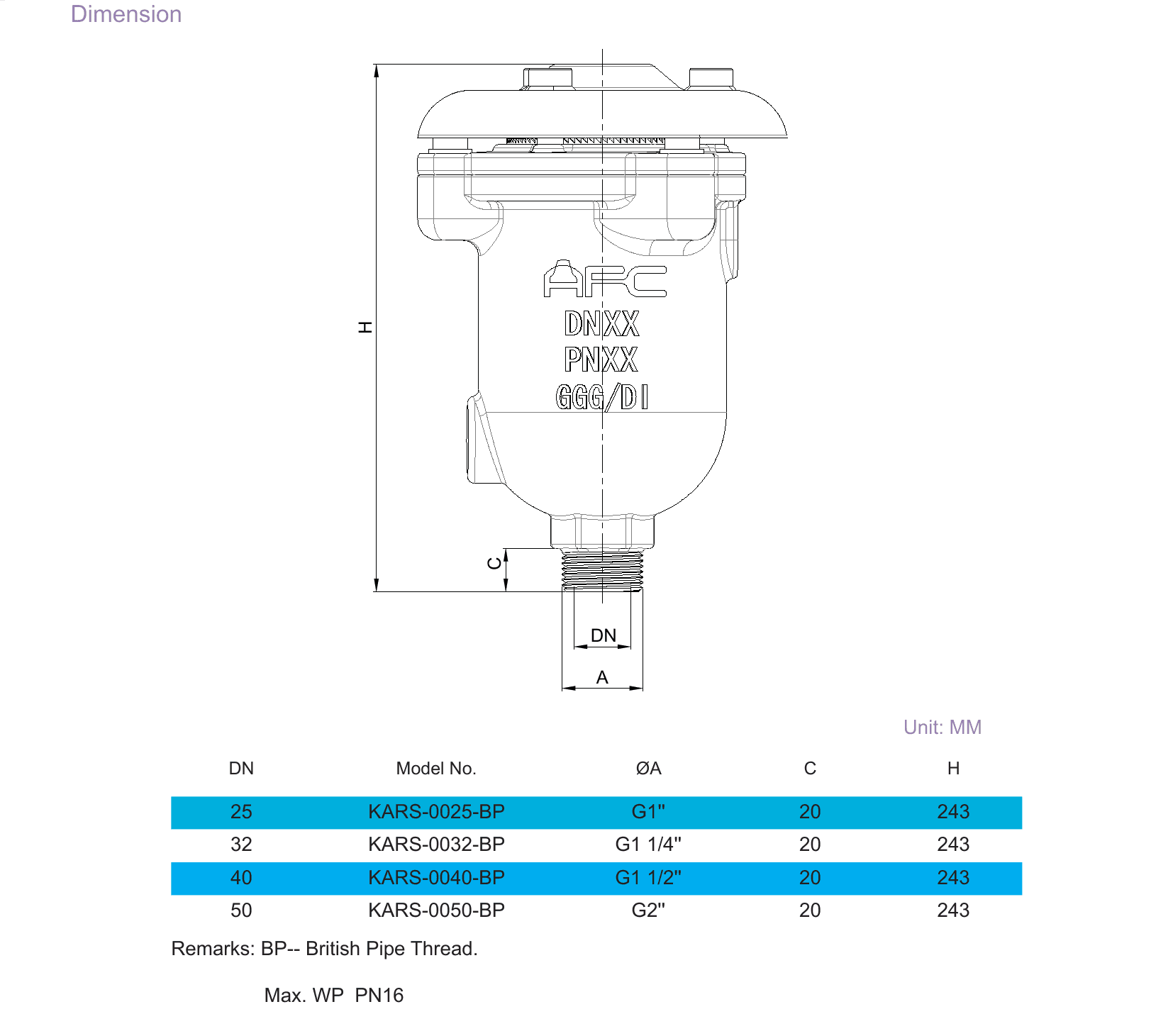

| DN25 | 1 inch (G1") | 20 mm | 243 mm | — | — | — | — | — | — | — | — | — | — |
| DN32 | 1.25 inch (G1 1/4") | 20 mm | 243 mm | — | — | — | — | — | — | — | — | — | — |
| DN40 | 1.5 inch (G1 1/2") | 20 mm | 243 mm | — | — | — | — | — | — | — | — | — | — |
| DN50 | 2 inch (G2") | 20 mm | 243 mm | — | — | — | — | — | — | — | — | — | — |
| DN50 (flange) | — | — | 280 mm | 99 mm | 99 mm | 99 mm | 165 mm | 165 mm | 165 mm | 125 mm | 125 mm | 125 mm | — |
| DN65 (reduced bore) | — | — | 284 mm | 118 mm | 118 mm | — | 185 mm | 185 mm | — | 145 mm | 145 mm | — | — |
| DN80 (flange) | — | — | 362 mm | 132 mm | 132 mm | 132 mm | 200 mm | 200 mm | 200 mm | 160 mm | 160 mm | 160 mm | — |
| DN100 (flange) | — | — | 395 mm | 156 mm | 156 mm | 156 mm | 220 mm | 220 mm | 235 mm | 180 mm | 180 mm | 190 mm | — |
| DN150 (flange) | — | — | 485 mm | 211 mm | 211 mm | 211 mm | 285 mm | 285 mm | 300 mm | 240 mm | 240 mm | 250 mm | — |
| DN200 (flange) | — | — | 582 mm | 266 mm | 266 mm | 274 mm | 340 mm | 340 mm | 360 mm | 295 mm | 295 mm | 310 mm | — |
| DN250 (flange, reduced bore) | — | — | 602 mm | 319 mm | 319 mm | 330 mm | 405 mm | 405 mm | 425 mm | 350 mm | 355 mm | 370 mm | — |
| DN300 (flange) | — | — | 750 mm | 370 mm | 370 mm | — | 460 mm | 460 mm | — | 400 mm | 410 mm | — | — |
Approvals
Features

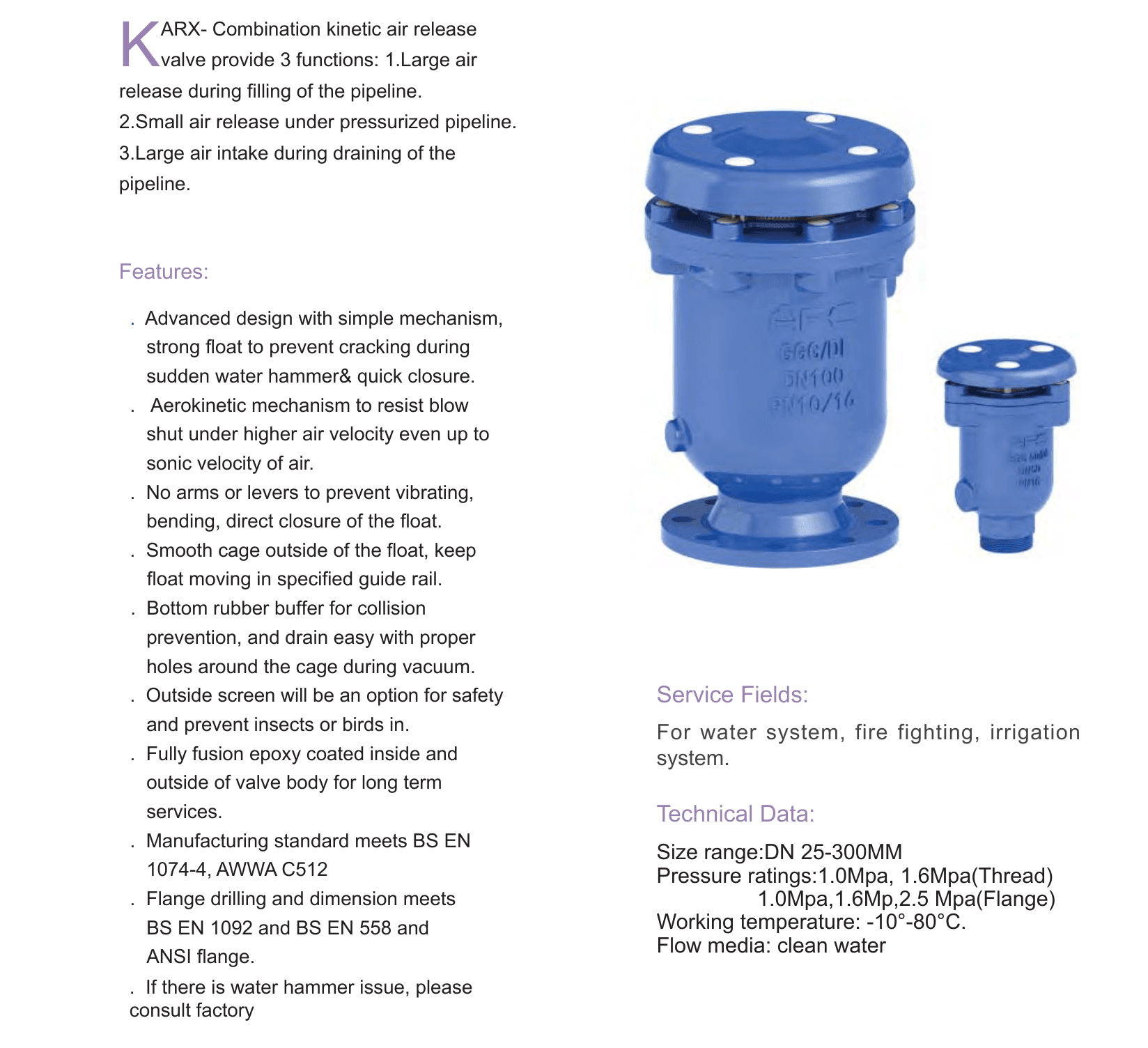

- The KARX is a high-capacity combination air release valve designed for large diameter transmission mains where rapid venting of large air volumes is critical

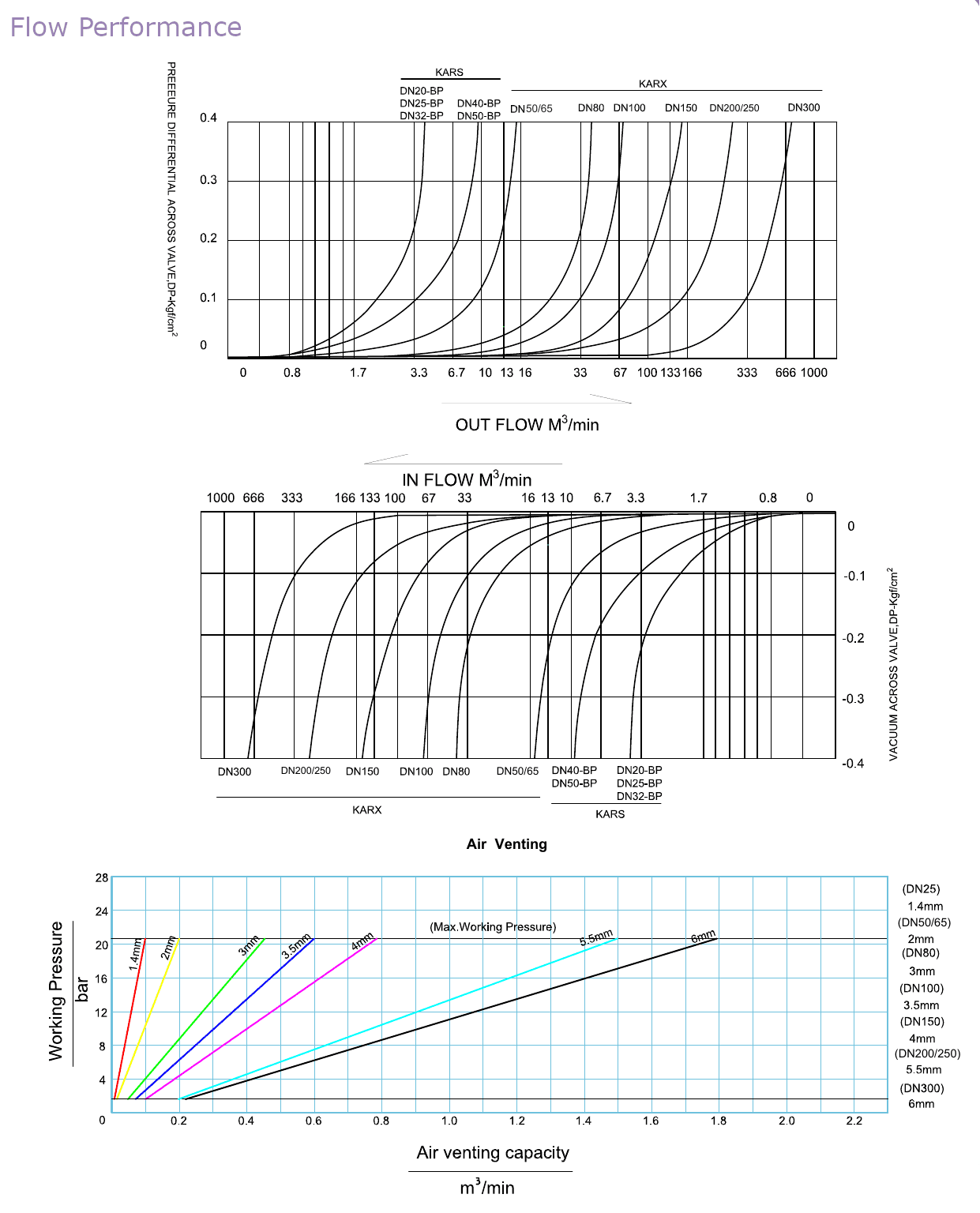

- The oversized kinetic orifice minimises back pressure during filling, reducing pipe stress and fill times
- Continuous air release under pressure prevents air locking in rising mains and hilly pipeline profiles
Description
High-capacity kinetic air release for large diameter mains. The KARX is a high-capacity combination air release valve designed for large diameter transmission mains where rapid venting of large air volumes is critical. The oversized kinetic orifice minimises back pressure during filling, reducing pipe stress and fill times. Continuous air release under pressure prevents air locking in rising mains and hilly pipeline profiles.
