Rising Stem Resilient Seat Gate Valve
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50-DN1200
- Pressure Class
- PN10/PN16
- Standards
- DIN3352 F4/F5, AWWA C509/515, BS5163, DIN3202 F4/F5, DIN3230, BS6755, API598, EN 1074, AWWA C509
- End connection
- Flanged (EN 1092-1)
- Face-to-face
- EN 558 Series 14 / ISO 5752
- Operating temperature
- -20°C to +70°C
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- seat
- stem
- shaft
- packing
- o ring
- bonnet gasket
- hand wheel
- sealing ring
- socket head screw
- wedge nut
- yoke
Operating media
Actuation options
Coatings
Approvals
Features
- Rising stem configuration provides visual open/closed position indication
- Fully encapsulated EPDM rubber wedge for tight sealing
- Reduced risk of stem jamming in dirty or sandy environments
- Suitable for above-ground and underground installation
- Smooth operation with minimal torque
- Rising stem (outside screw) gate valve with flanged ends
- Handwheel operated
- Rubber-encapsulated wedge gate
- Exposed rising stem with stainless steel threaded section
- Gland packing arrangement visible in yoke
- Full bore design
Notes
- Dimensions table referenced in HTML but no data provided
- Diagram: Sectional/dimensional drawing of a flanged resilient-seated gate valve showing front elevation (with rising stem, yoke, wedge, and body) and end elevation (showing flange bolt-hole pattern). Dimension references: ΦD (flange OD), ΦD1 (bolt circle), DN (bore), L (face-to-face), b (flange thickness), f (raised-face height), n-Φd (number and diameter of bolt holes). Part callouts numbered 1–12 visible on end-view side: 1=body, 2=flange, 3=flange face, 4=wedge/gate, 5=seat, 6=body seal, 7=stem, 8=gland packing, 9=bonnet, 10=yoke, 11=stem nut/bush, 12=handwheel.
Description

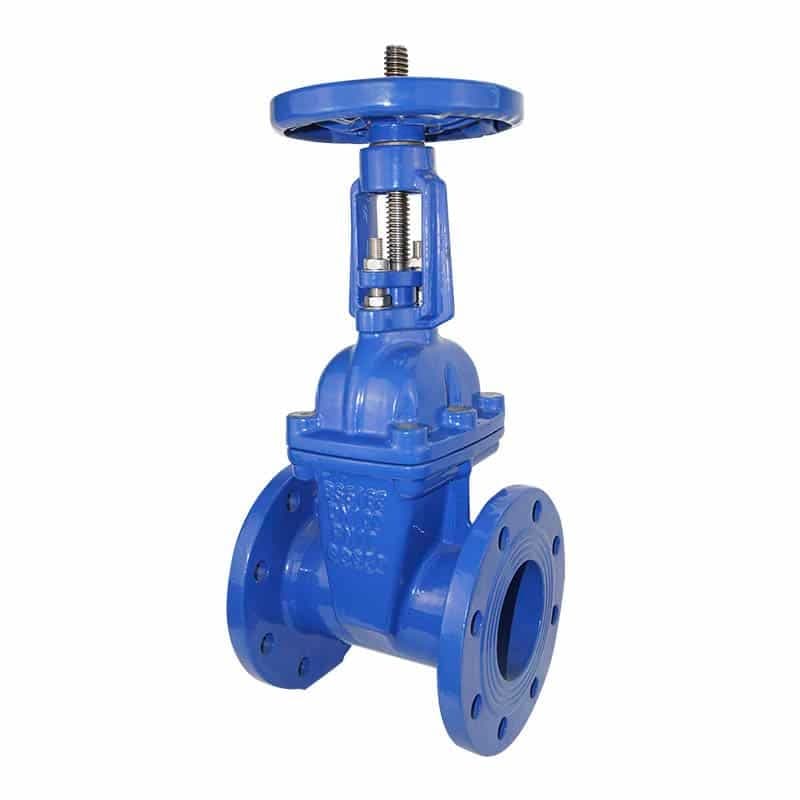

A rising stem resilient seat gate valve with ductile iron body and fully encapsulated EPDM rubber wedge, providing tight shut-off and corrosion resistance. The rising stem configuration allows visual position indication and reduces stem jamming risk in contaminated environments. Available in DN50–DN1200, rated to PN10/PN16, and suitable for municipal and industrial pipeline applications.
