Self Closing Drain Valve

Name: Self Closing Drain Valve
Brand: Euro Flow Control
SKU: EFC-179
Availability: InStock

Model: VSCV-10

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 179

Specifications

Confirmed at quote

Size Range: DN20-DN40
Pressure Class: PN16
Standards: DIN EN 10226-1
End connection: DIN EN 1092-1-2 / DIN EN 10226-1

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN20 DN25 DN32 DN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
stem
o ring
spring
other.spring house
other.spring nut

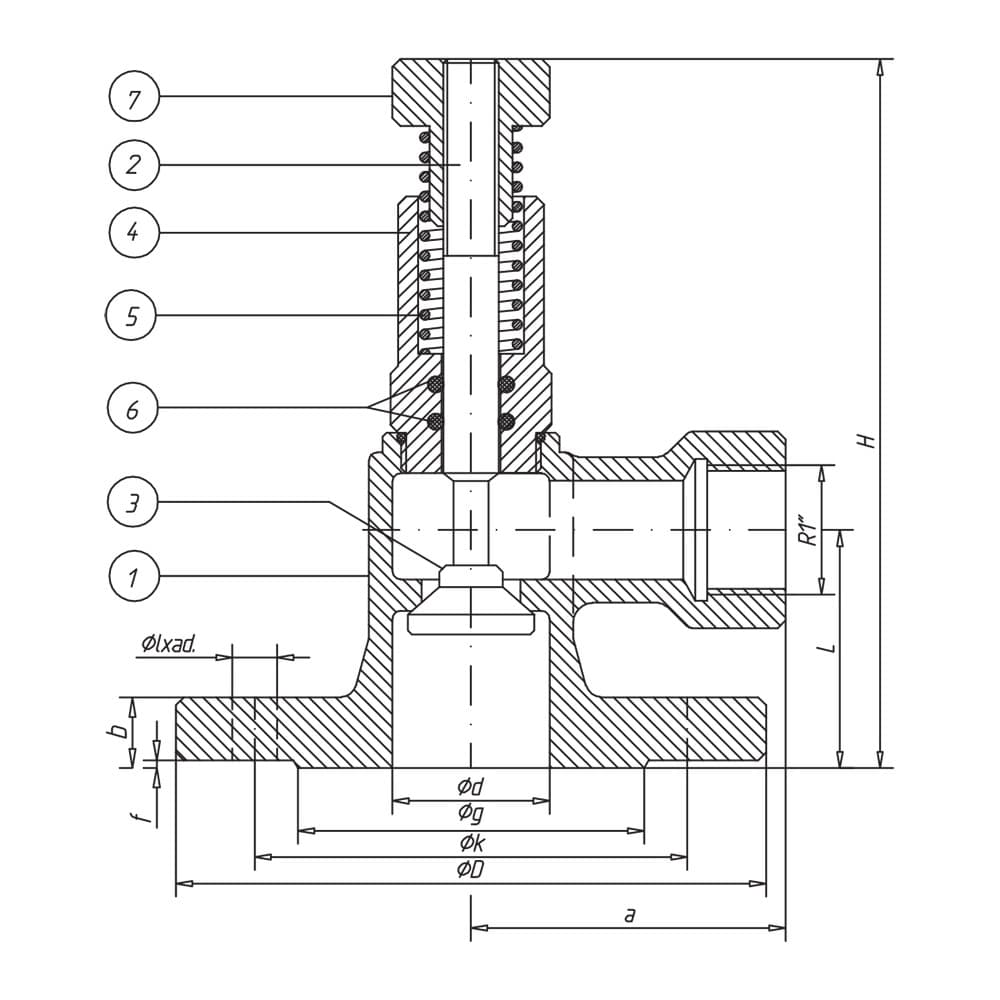

Dimensions per size(4 sizes)

Size	L	H	a	Od	OD	Ok	Og	bxf	Weight
DN20	61 mm	180 mm	80 mm	40 mm	105 mm	75 mm	58 mm	16 mm	2.5 kg
DN25	61 mm	180 mm	80 mm	40 mm	115 mm	85 mm	68 mm	16 mm	3 kg
DN32	61 mm	180 mm	80 mm	40 mm	140 mm	100 mm	78 mm	18 mm	4 kg
DN40	61 mm	180 mm	80 mm	40 mm	150 mm	110 mm	88 mm	18 mm	4.5 kg

Features

Spring-loaded self-closing disc mechanism
Flanged body with DIN EN 1092-1-2 bolt pattern
EPDM O-ring sealing
Stainless steel spring and internal components
Available in bronze or cast iron/cast steel body

Description

A self-closing drain valve with a spring-loaded disc mechanism for automatic closure. Designed for flanged connections to DIN EN 1092-1-2 and rated at PN10/PN16. Available in sizes DN20 to DN40 with bronze or cast iron body construction.
